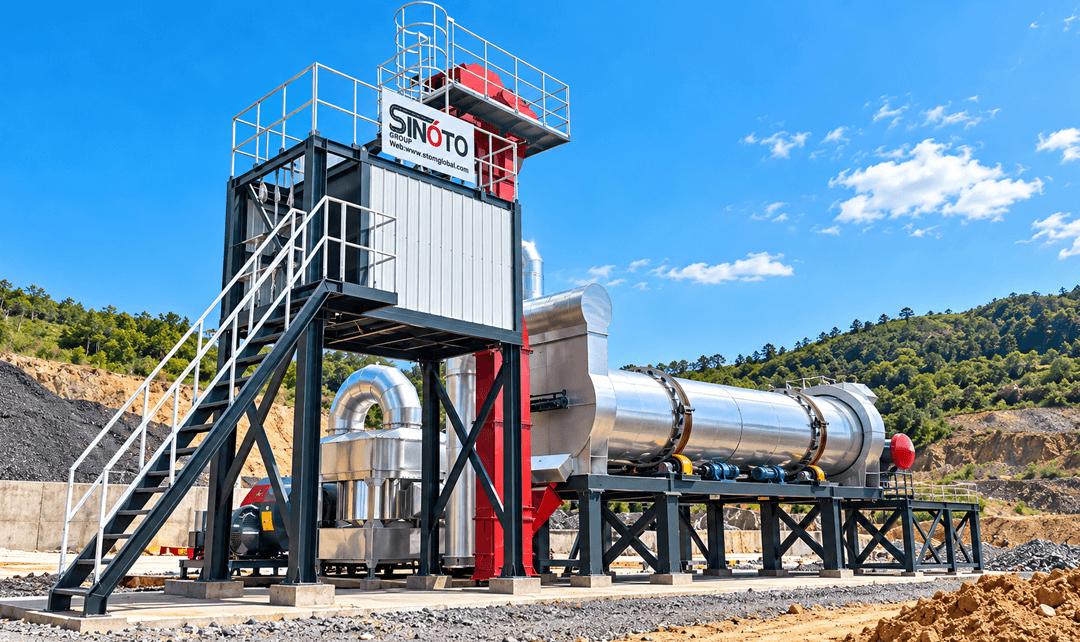

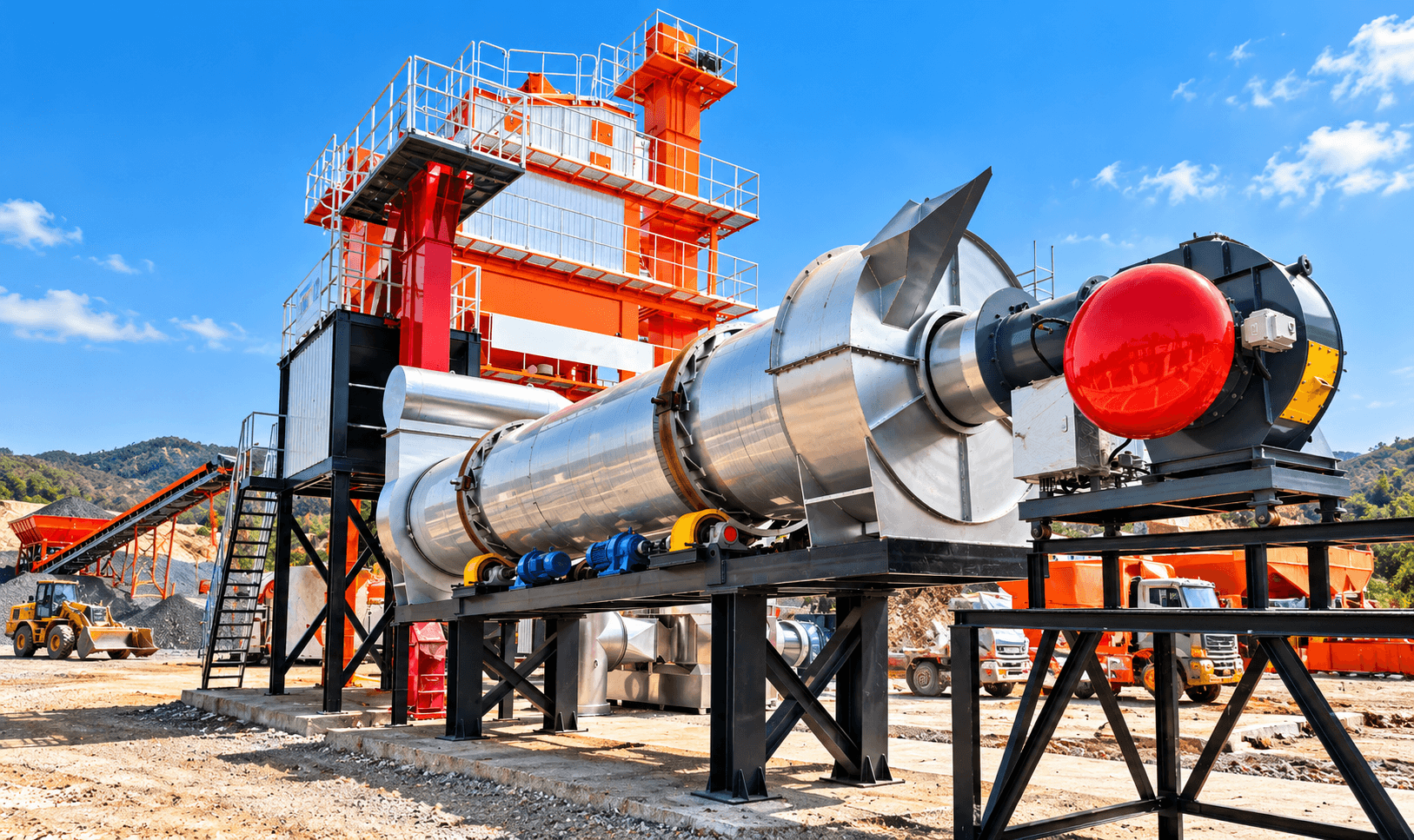

Stationary Asphalt Drum Mix Plant

Stationary Asphalt Drum Mix Plant
Stationary Asphalt Drum Mix Plant
Stationary Asphalt Drum Mix Plant
Stationary Asphalt Drum Mix PlantStationary Asphalt Drum Mix PlantStationary Asphalt Drum Mix Plant

Productive Capacity: 40—120tph

Machine Type: Stationary Type

SINOTO Stationary Asphalt Drum Mix Plant is a reliable and cost-effective continuous asphalt mixing solution designed for long-term road construction projects requiring stable production and consistent asphalt mixture quality.
This stationary asphalt mixing plant adopts an integrated drum mixing system, where aggregate drying, bitumen spraying, and asphalt mixing are continuously performed inside the rotating drum, enabling uninterrupted asphalt mixture production and efficient material processing.
With its robust structure, stable operation, simplified maintenance, and economical investment, the SINOTO stationary drum mix asphalt plant is suitable for contractors seeking dependable asphalt production with reduced operating complexity and maintenance requirements.
The Stationary Asphalt Drum Mixing Plant is widely used in municipal road construction, rural highways, industrial roads, road rehabilitation projects, and asphalt base or lower-layer paving applications. It is particularly suitable for fixed production sites and long-term road infrastructure projects that require continuous asphalt supply.

Send Email Get A Free Quote

Technical Parameter

Model

DHB60

DHB80

DHB100

DHB120

Main Parameters

Capacity(t/h)

60

80

100

120

Total Power(kw)

100

142

160

215

Noise(dB)

≤70

Voltage

220V/380V/440V-50HZ60HZ(Adjustable)

Cold Feeder

Cold Bin(m³)

4*7

4*7

4*7

4*7

Belt Feeding Capacity(t/h)

60

100

120

140

Belt Width(mm)

500

600

600

600/650

Feeding Belt Adjustment Mode

Frequency Invertor

Drying System

Drying Capacity(t/h)

60

80

100

120

Dryer Drum Size(mm)

Φ1500*6500

Φ1500*6650

Φ1600*9000

Φ1800*9000

Drive Motor Power(kw)

22

30

4*11

4*11

Fuel

Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas

Coal Burner

Max Burning Amount(kg/h)

900

1200

1500

1800

Oil Burner

Max Burning Amount(kg/h)

400

600

750

900

Dust Collecting System

Primary Gravity Dust Collector

Cyclone Dust Collector, Volute Casing Collector

Water Filter

Water Pump

1.5kw

1.5KW

1.5kw

1.5kw

Fan Motor Power

30kw

45KW

55kw

75kw

Bitumen Supply System

Heating Type

Oil Burner Heating

Bitumen Pump

Gear Pump/Screw Pump Type

Bitumen Tank(m³)

30

40

40

40

Hot Mix Storage Silo(m³)

3.5

4.5

10

10

Pneumatic System

Air Compressor

Piston Air Compressor/Screw Air Compressor

Air Storage Tank

600L---2000L Optional

Semi-Trailer Units Optional)

traveling chassis 2pcs

11400*2230*650mm

11500*2230*650mm

front axle/rear-axle 4cs

2230mm 4

suspension system 4pcs

With suspension system

Tyre 4pcs

10.00-R20

Control System

Manual Operation/ Automatic Computer Control (Optional)

Remarks: ABOVE SPECIFICATIONS ARE FOR REFERENCE ONLY, SINOTO RESERVES THE RIGHT TO MAKE CHANGES, (DHB SERIES ARE FIXED PLANT, MDHB SERIES ARE MOBILE PLANTS)

Technical FAQ & support

What is the production capacity of a Drum Mix Asphalt Plant?
SINOTO Drum Mix Asphalt Plants are available in various production capacities, typically ranging from 40 to 120 tons per hour (TPH). The actual output depends on aggregate moisture content, material properties, and operating conditions. We can recommend the most suitable Continuous Asphalt Mixing Plant based on your project requirements, daily production targets, and budget.
What types of fuel can a Drum Mix Asphalt Plant use?
SINOTO Drum Mix Asphalt Plants can be equipped with burners compatible with diesel, heavy oil, or natural gas, depending on local fuel availability and project requirements. An efficient burner system and insulated drying drum help reduce heat loss and optimize fuel consumption, lowering overall asphalt production costs.
How does a Drum Mix Asphalt Plant control dust emissions?
Our Continuous Asphalt Mixing Plants can be equipped with cyclone dust collectors, baghouse filters, or other suitable dust collection systems. These systems help capture dust generated during aggregate drying and asphalt production, reducing emissions and improving the working environment. The appropriate configuration can be selected according to local environmental regulations.
Is a Drum Mix Asphalt Plant easy to install, operate, and maintain?
Yes. SINOTO Drum Mix Asphalt Plants feature a modular structure and user-friendly control system for convenient installation, operation, and maintenance. Optional PLC automatic controls support production monitoring and fault protection. SINOTO can also provide installation guidance, operator training, technical support, and spare parts services to help customers maintain reliable long-term operation.
What is the cost advantage of a continuous plant?
Our affordable continuous hot mix plant for sale offers a lower initial investment and lower energy costs. It is the most energy-efficient drum mix plant for contractors looking to maximize ROI on massive paving jobs.
Does it save on fuel consumption?
Yes, the low fuel consumption continuous asphalt mixing station uses optimized burner technology and continuous thermal exchange, reducing heat loss compared to traditional batching methods.

Advantages

Product Advantages and Features

  • Stable Continuous Production

    Designed for long-term operation, ensuring a consistent asphalt supply for road construction and paving projects.

  • 40–120 TPH Capacity Options

    Available in 40, 60, 80, 100, and 120 TPH models to meet different asphalt production requirements.

  • High Thermal Efficiency

    An optimized drying drum and continuous heating process help reduce heat loss and improve fuel utilization.

  • Cost-Effective Asphalt Production

    Continuous mixing eliminates batch waiting time, helping reduce production costs and improve overall efficiency.

  • Reliable Fixed Installation

    A stationary configuration provides a stable equipment layout for long-term asphalt production at dedicated sites.

  • Flexible Fuel Compatibility

    Supports diesel, heavy oil, fuel oil, coal, and natural gas to meet different regional fuel requirements.

  • Advanced Dust Collection

    Cyclone or volute dust collectors and a water filtration system help control dust during asphalt production.

  • Precise Material Feeding

    A four-bin cold aggregate feeding system with frequency control supports stable and adjustable material supply.

  • Automatic Control Options

    Optional computer control and manual operation provide flexible management of asphalt mixing processes.

  • Easy Maintenance & Durability

    A simplified mechanical structure with fewer wear-prone components helps reduce maintenance costs and downtime.

Product Model

DHB80 Continuous Asphalt Mixing Plant

Productive Capacity: 80tph

Total Power: about 142kw

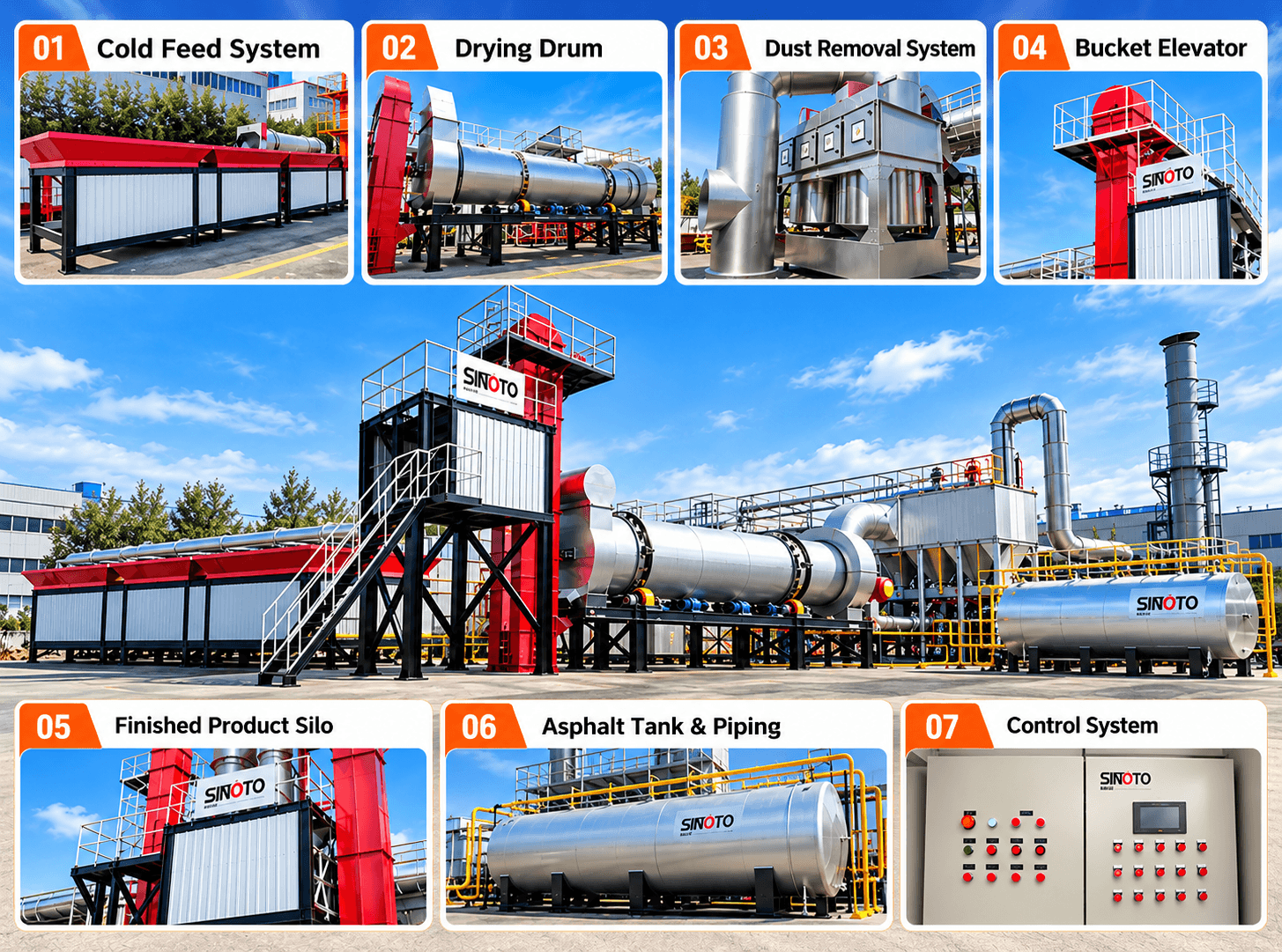

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Bitumen Supply System, Pneumatic System, Control System.

Key Words: Continuous Asphalt Plant, Continuous Asphalt Mixing Plant, Drum Mix Asphalt Plant, Drum Mix Plant, Asphalt Drum Mix Plant, Portable Drum Mix Plant, Mobile Drum Mix Plant, Continuous Drum Mix Plant.

Get A Quote

DHB100 Continuous Asphalt Mixing Plant

Productive Capacity: 100tph

Total Power: about 160kw

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Bitumen Supply System, Pneumatic System, Control System.

Key Words: Continuous Asphalt Plant, Continuous Asphalt Mixing Plant, Drum Mix Asphalt Plant, Drum Mix Plant, Asphalt Drum Mix Plant, Portable Drum Mix Plant, Mobile Drum Mix Plant, Continuous Drum Mix Plant.

Get A Quote

Product Details

Continuous Asphalt Mixing Plant

Fill in Your Requirements

    • Name:

    • *Email:

    • Country:

    • Tel/WhatsApp:

    • *Message:

    Related Product

    bitumen emulsion plant

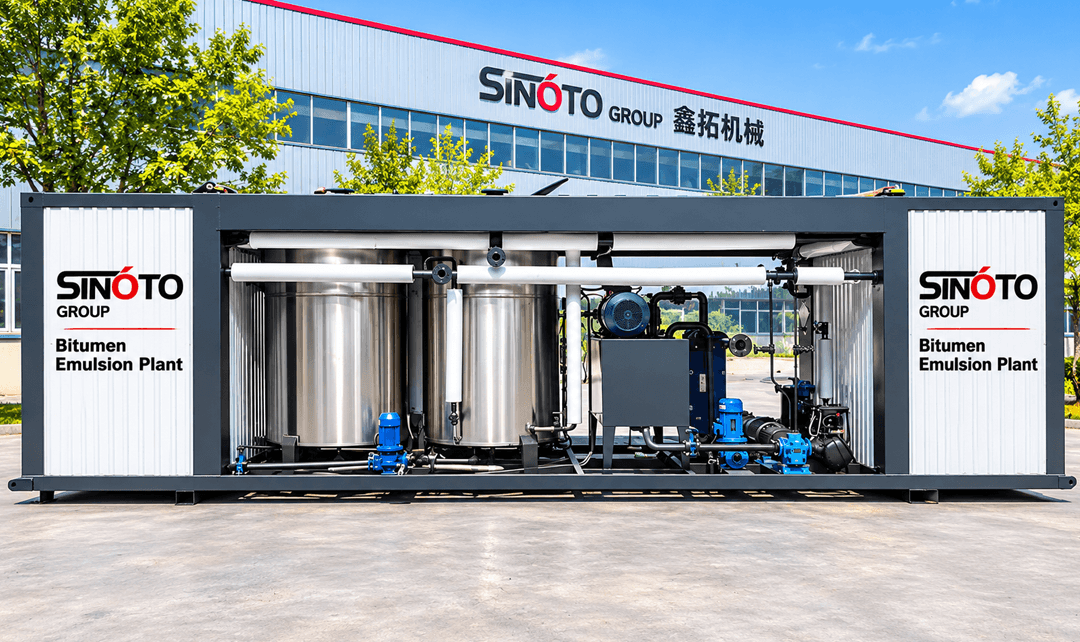

    Emulsion Bitumen Plant

    Emulsion Bitumen Plant is a mechanical device used to heat and melt bitumen, which is then broken down into fine droplets through mechanical shearing and dispersed into an aqueous solution containing emulsifiers, forming an oil-in-water asphalt emulsion.

    Learn More
    Polymer Modified Bitumen Plant

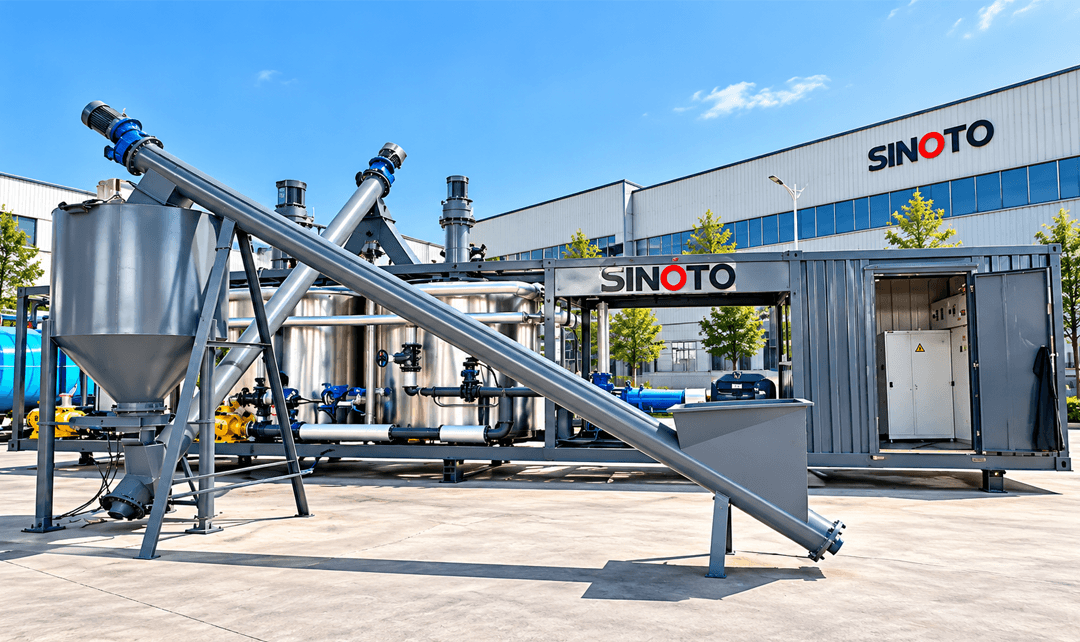

    Polymer Modified Bitumen Plant

    The SBS modified bitumen plant is a polymer-modified bitumen system designed to mix base asphalt with polymer modifiers such as SBS (styrene-butadiene-styrene), PE (polyethylene), and EVA (ethylene-vinyl acetate copolymer) through processes including shearing, swelling, and development. SINOTO PMB plants are compatible with global polymer brands like Kraton, Dynasol, and LG Chem.

    Learn More
    Crumb Rubber Modified Bitumen Plant

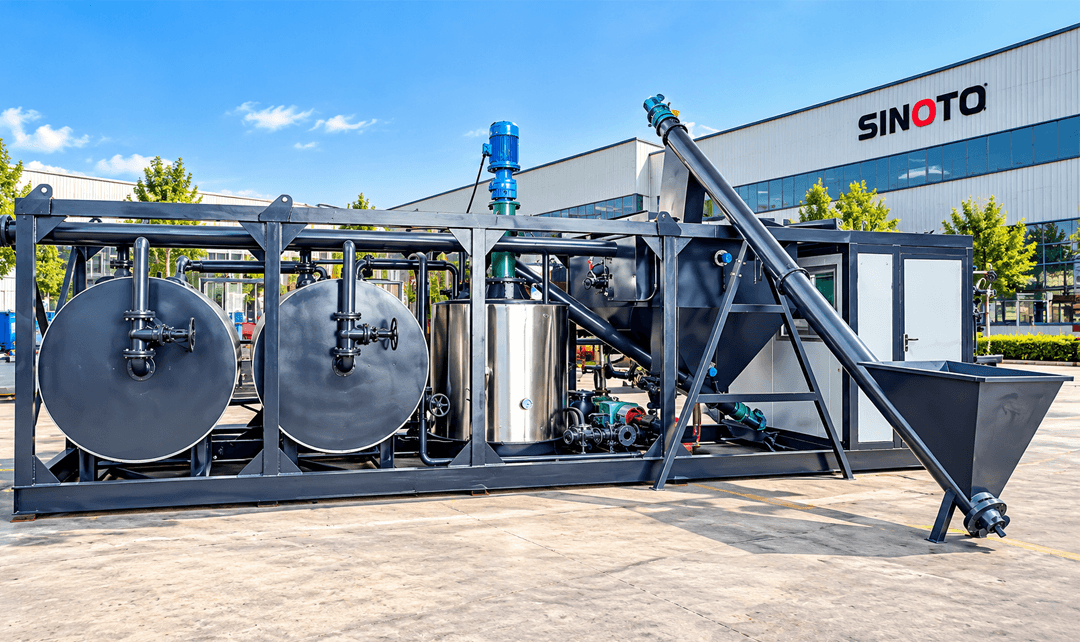

    Crushed Rubber Modified Bitumen Plant
