Fixed Concrete Mixing Plant

Fixed Concrete Mixing Plant
Fixed Concrete Mixing Plant
Fixed Concrete Mixing Plant
Fixed Concrete Mixing PlantFixed Concrete Mixing PlantFixed Concrete Mixing Plant

Productive Capacity: 25---180m³/h

Production Type: Bucket Type and Belt Type

The Stationary Concrete Mixing Plant is a large-scale, permanently or semi-permanently installed concrete production facility. It is typically built on a fixed foundation and features a high degree of automation, robust production capacity, and stable performance, specifically designed to continuously supply large quantities of high-quality concrete for major engineering projects, commercial concrete companies, or regional markets. SinoTo concrete batching plants ensure precise batching, one-click start and stop, intelligent control, and efficient production with real-time monitoring, providing a stable, reliable, and efficient one-stop solution for concrete production. Whether for commercial or engineering concrete plants, our facilities consistently deliver stable quality, complemented by 24/7 responsive after-sales service and technical support, making them a reliable partner for your business and projects.

Contact us, and you will receive satisfactory products and services.

Send Email Get A Free Quote

Technical Parameter

Model

HZS25

HZS35

HZS50

HZS60

HZS75

HZS90

HZS120

Theoretical capacity（m³/h）

25

35

50

60

75

90

120

Mixer

Model

JS500

JS750

JS1000

JS1000

JS1500

JS1500

JS2000

Power (KW)

18.5

30

2×18.5

2×18.5

2×30

2×30

2×37

Output capacity m³)

0.5

0.75

1

1

1.5

1.5

2

Max. aggregate size（gravel/pebble） (mm)

≤60/80

≤60/80

≤60/80

≤60/80

≤60/80

≤60/80

≤60/80

Aggregate Batcher

Capacity（m³）

3*6m³

3*6m³

4*6m³

4*6m³

4*6m³

4*12m³

4*18m³

Motor power of hoister/Belt Conveyor (KW)

5.5

7.5

18.5

22

22

22

37

Discharging height (m)

3.8

4

4

4

4

4

4

Cement Silos

50t/100t/200t split type cement silos (Optional)

Control System

PLY manual/PLC automatic control system

PLC automatic control system

Total Power

65kw

65kw

120kw

120kw

150kw

165kw

210kw

Technical FAQ & Support

Why choose a stationary concrete batching plant for large projects?
A stationary concrete batching plant (fixed type) offers higher stability and output than mobile versions. It is the preferred fixed concrete mixing plant for large-scale construction sites requiring reliable and continuous concrete production.
Does the plant use a high efficiency twin-shaft mixer?
Yes, every fixed concrete mixing plant we supply is integrated with a high efficiency twin-shaft mixer, providing powerful mixing performance and ensuring the highest quality for every batch.
How advanced is the automatic control system?
SINOTO automatic fixed concrete mixing plant system utilizes PLC technology. This fixed concrete batching equipment allows for precise material weighing and real-time production tracking through a user-friendly HMI interface.
Is it suitable for high-grade highway projects?
Certainly. This stationary concrete plant is specifically engineered to meet the rigorous standards of high-grade highway pavement, providing exact water-cement ratios and consistent aggregate grading.
What about the durability of this fixed plant?
Our heavy-duty fixed concrete batching plant features a reinforced steel structure and wear-resistant mixing blades. This fixed concrete mixing plant is built to withstand 24/7 operation in harsh environments.

Advantages

Product Advantages and Features

  • High Production Efficiency and Large Capacity

    Designed for continuous large-scale production, with an hourly output typically ranging from 25 to hundreds of cubic meters, easily meeting the massive demand for large-volume centralized pouring in major engineering projects.

  • Strong Production Stability and Reliability

    Built on a solid fixed foundation, the equipment features a robust structure, smooth operation, and low failure rates, ensuring long-term, uninterrupted continuous production operations.

  • High Batching Accuracy and Excellent Concrete Quality

    Equipped with precision sensors and computer control systems, the batching of water, cement, aggregates, admixtures, etc., is highly accurate, ensuring exceptional consistency in concrete mix proportions and resulting in stable, high-performance concrete production.

  • High Level of Automation and Intelligence

    Features an advanced fully automatic control system enabling "one-touch" operation. The entire process, from formulation calling, feeding, and batching to mixing and discharging, is fully automated, significantly reducing manual intervention, minimizing human error, and improving management efficiency.

  • Excellent Scalability and Customizability

    Can be flexibly expanded based on business development needs, such as increasing the number of cement silos and aggregate storage bins, or upgrading the mixer host and control system to enhance capacity and functionality.

  • Outstanding Environmental Performance

    Due to its stationary nature, it can be easily equipped with fully enclosed steel structure buildings, high-efficiency dust collectors, sand and gravel separators, and wastewater recycling systems. This effectively controls dust, reduces noise, and enables the recycling of wastewater and waste materials, meeting stringent environmental regulations.

Product Model

HZS50 Stationary Concrete Mixing Plant

Productive Capacity: 50m3/h

Total Power: about 120kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Control System.

Key Words: Stationary Concrete Batching Plant, Stationary Concrete Mixing Plant, Fixed Concrete Plant, Commercial Concrete Plant for Sale, Ready Mix Concrete Plant, Concrete Batching Plant Manufacturer, Concrete Plant Supplier.

Get A Quote

HZS60 Stationary Concrete Mixing Plant

Productive Capacity: 60m3/h

Total Power: about 120kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Control System.

Key Words: Stationary Concrete Batching Plant, Stationary Concrete Mixing Plant, Fixed Concrete Plant, Commercial Concrete Plant for Sale, Ready Mix Concrete Plant, Concrete Batching Plant Manufacturer, Concrete Plant Supplier.

Get A Quote

HZS90 Stationary Concrete Mixing Plant

Productive Capacity: 90m3/h

Total Power: about 165kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Control System.

Key Words: Stationary Concrete Batching Plant, Stationary Concrete Mixing Plant, Fixed Concrete Plant, Commercial Concrete Plant for Sale, Ready Mix Concrete Plant, Concrete Batching Plant Manufacturer, Concrete Plant Supplier.

Get A Quote

HZS120 Stationary Concrete Mixing Plant

Productive Capacity: 120m3/h

Total Power: about 210kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Control System.

Key Words: Stationary Concrete Batching Plant, Stationary Concrete Mixing Plant, Fixed Concrete Plant, Commercial Concrete Plant for Sale, Ready Mix Concrete Plant, Concrete Batching Plant Manufacturer, Concrete Plant Supplier.

Get A Quote

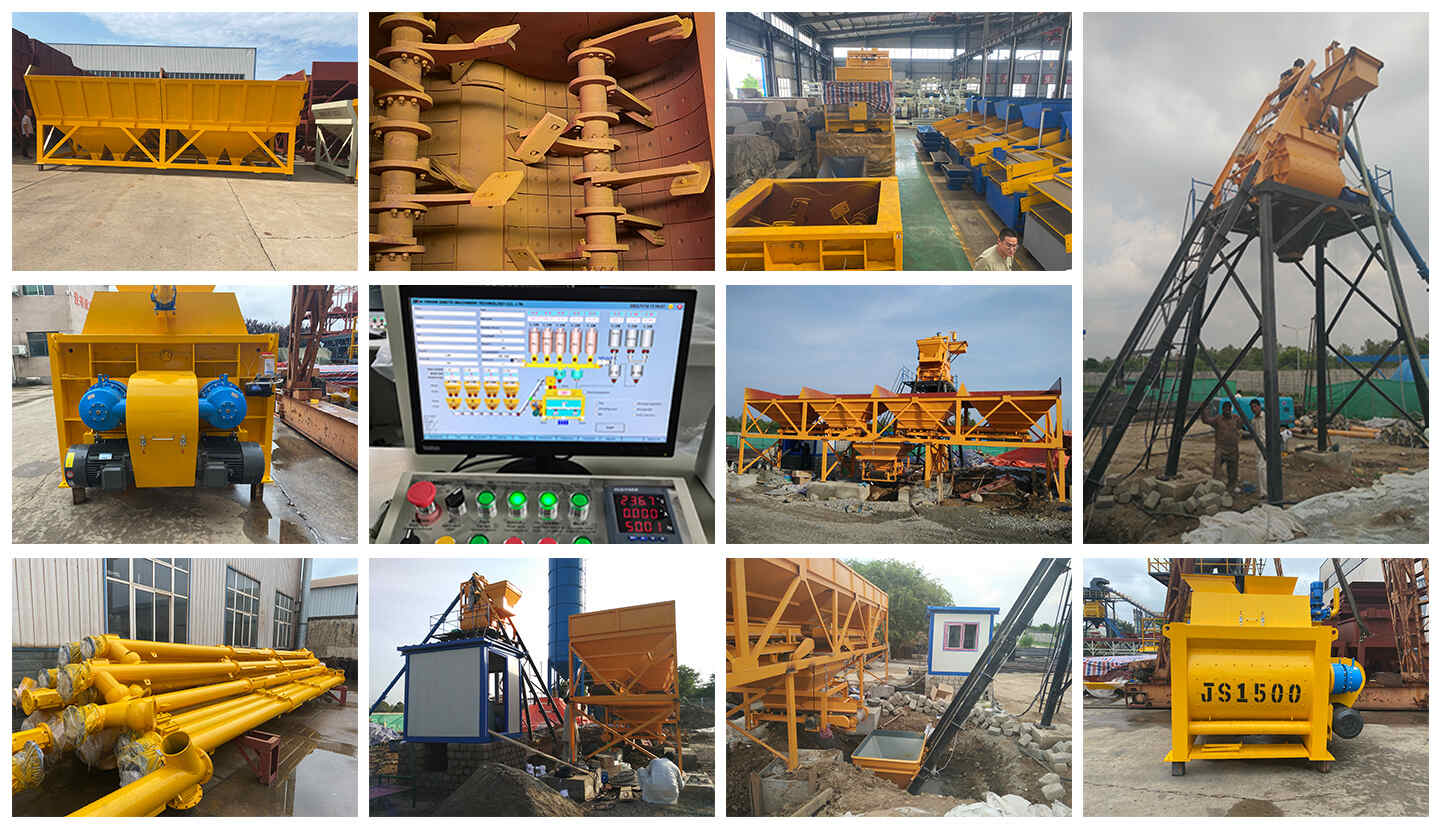

Product Details
