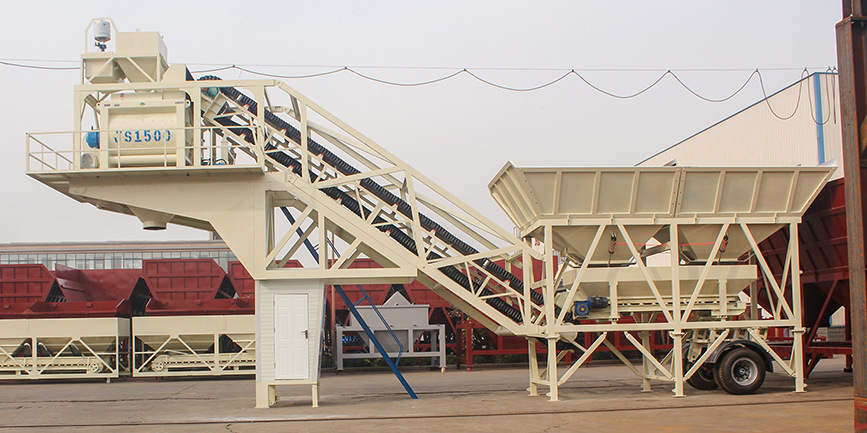

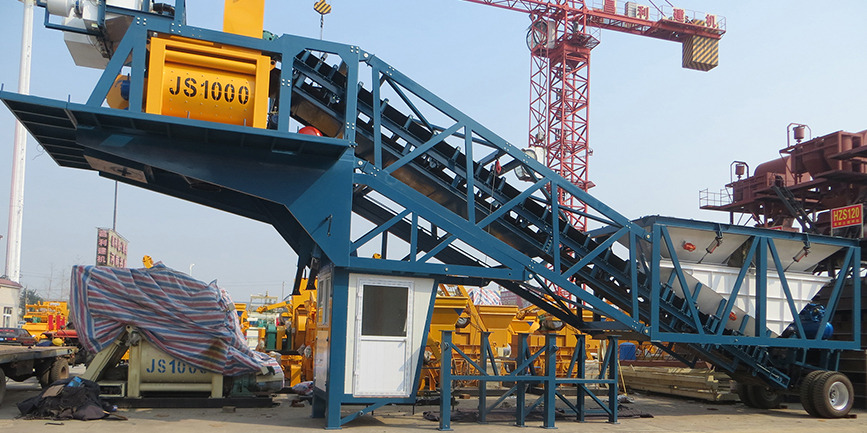

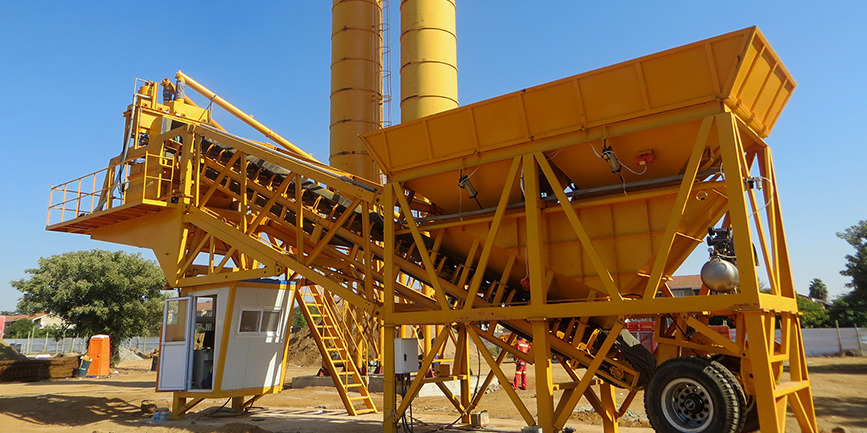

Mobile Concrete Mixing Plant

Mobile Concrete Mixing Plant
Mobile Concrete Mixing Plant
Mobile Concrete Mixing Plant
Mobile Concrete Mixing PlantMobile Concrete Mixing PlantMobile Concrete Mixing Plant

Productive Capacity: 35---90m³/h

Production Type: Mobile Type and Belt Type

The mobile concrete batching plant is a highly integrated and rapidly relocatable concrete production equipment. It consolidates all systems required for concrete production (such as mixing, measuring, conveying, and control) onto one or more mobile trailer units, enabling the entire plant to be transported as a whole. The modular design facilitates easy relocation, making it suitable for small-scale projects and construction in remote areas.

SinoTo mobile concrete batching plants ensure precise measurement, one-click start and stop, intelligent control, and efficient production. With real-time monitoring, they provide a stable, reliable, and efficient one-stop concrete solution. Whether for commercial or engineering concrete plants, our equipment consistently delivers stable quality, backed by 24/7 responsive after-sales service, serving as a reliable partner for your business and projects.

Contact us to receive satisfactory products and services.

Send Email Get A Free Quote

Technical Parameter

Model

YHZS-35

YHZS-50

YHZS75

Theoretical Productivity (m³/h)

35

50

75

Mixer Model

JS750

JS1000

JS1500

Mixer Power (kW)

30

30

60

Mixing Cycle Period (s)

60

60

60

Max. Aggregate Size (mm)

Φ80

Φ80

Φ80

Standard Aggregate Bin Capacity

6m³*4

6m³*4

6m³*4

Category of Aggregate

2/3/4

Cement Silos (Optional)

2*50T

1*100T

1*100T

Max. Discharging Height (m)

3.8

4.1

4.1

Installation Power (kW)

105

105

165

Power Supply

380V/220V/415/440V, 50/60HZ, 3Phase

Technical FAQ & Support

How fast is the installation of the mobile plant?
SINOTO fast setup mobile concrete mixing plant is pre-wired and modular. It can typically be fully operational within 3 to 5 days, saving significant time for tight project schedules.
Why choose a portable batching plant for road construction?
A portable concrete batching plant for road construction allows you to produce concrete right at the job site. This eliminates the cost of long-distance concrete truck transit and ensures fresh material for paving.
Is the trailer-mounted mixer easy to transport?
Yes, our compact mobile concrete mixer with trailer is designed to meet international transport standards. The entire unit can be towed by a truck head, making relocation between sites extremely efficient.
What capacity options are available for small scale plants?
We offer small scale mobile concrete plant on wheels with capacities starting from 25 m³/h up to 60 m³/h, perfect for small-to-medium infrastructure projects and rural developments.
How do I save costs with mobile batching equipment?
Choosing cost-effective mobile concrete batching equipment reduces the need for heavy concrete foundations. Its "plug-and-play" nature minimizes downtime during relocation, maximizing your project's overall profitability.

Advantages

Product Advantages and Features

  • High Mobility and Flexibility

    Featuring an integrated modular design, it can be quickly disassembled, transported, and installed, easily moving with project progress to different job sites. It enables on-site construction by allowing concrete to be mixed directly at the construction site, significantly reducing transportation distance. No fixed foundation is required, and it has low site requirements—only simple leveling is needed for installation, saving substantial civil construction costs and time.

  • Excellent Applicability

    For areas with strict environmental regulations that do not permit the establishment of fixed mixing plants, the mobile station is an ideal alternative. It is particularly suitable for rural roads, small bridges, water conservancy projects, prefabrication plants, small construction sites, military projects, emergency rescue and disaster relief operations, as well as infrastructure construction in remote areas.

  • High Production Efficiency

    Equipped with a forced-type twin-shaft mixer, it ensures short mixing time, rapid discharge, and homogeneous mixing. It supports continuous production with minimal manual intervention.

  • Automated Control

    Fitted with a PLC control system, it automatically measures raw materials such as cement, sand, and aggregates through computer-controlled electronic weighing, ensuring precise concrete mix proportions.

  • Low Operational Costs

    The acquisition cost is lower than that of a fixed mixing plant. No additional infrastructure costs are incurred during operation, and maintenance is quick (initial installation takes 3 days, while reassembly requires only 1 day).

Product Model

YHZS35 Mobile Concrete Mixing Plant

Productive Capacity: 35m3/h

Total Power: about 105kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Mobile Chassis, Control System.

Key Words: Mobile Concrete Batching Plant, Mobile Concrete Mixing Plant, Portable Concrete Plant, Mobile Batching Plant, Buy Mobile Concrete Plant, Mobile Concrete Plant For Sale, Mobile Concrete Plant Price, Cost of Mobile Batching Plant.

Get A Quote

YHZS50 Mobile Concrete Mixing Plant

Productive Capacity: 50m3/h

Total Power: about 105kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Mobile Chassis, Control System.

Key Words: Mobile Concrete Batching Plant, Mobile Concrete Mixing Plant, Portable Concrete Plant, Mobile Batching Plant, Buy Mobile Concrete Plant, Mobile Concrete Plant for Sale, Mobile Concrete Plant Price, Cost of Mobile Batching Plant.

Get A Quote

YHZS75 Mobile Concrete Mixing Plant

Productive Capacity: 75m3/h

Total Power: about 165kw

Main Components: Aggregate Batcher System, Twin-Shaft Mixer, Weighing System, Material Conveying System, Cement Silo, Pneumatic System, Mobile Chassis, Control System.

Key Words: Mobile Concrete Batching Plant, Mobile Concrete Mixing Plant, Portable Concrete Plant, Mobile Batching Plant, Buy Mobile Concrete Plant, Mobile Concrete Plant for Sale, Mobile Concrete Plant Price, Cost of Mobile Batching Plant.

Get A Quote

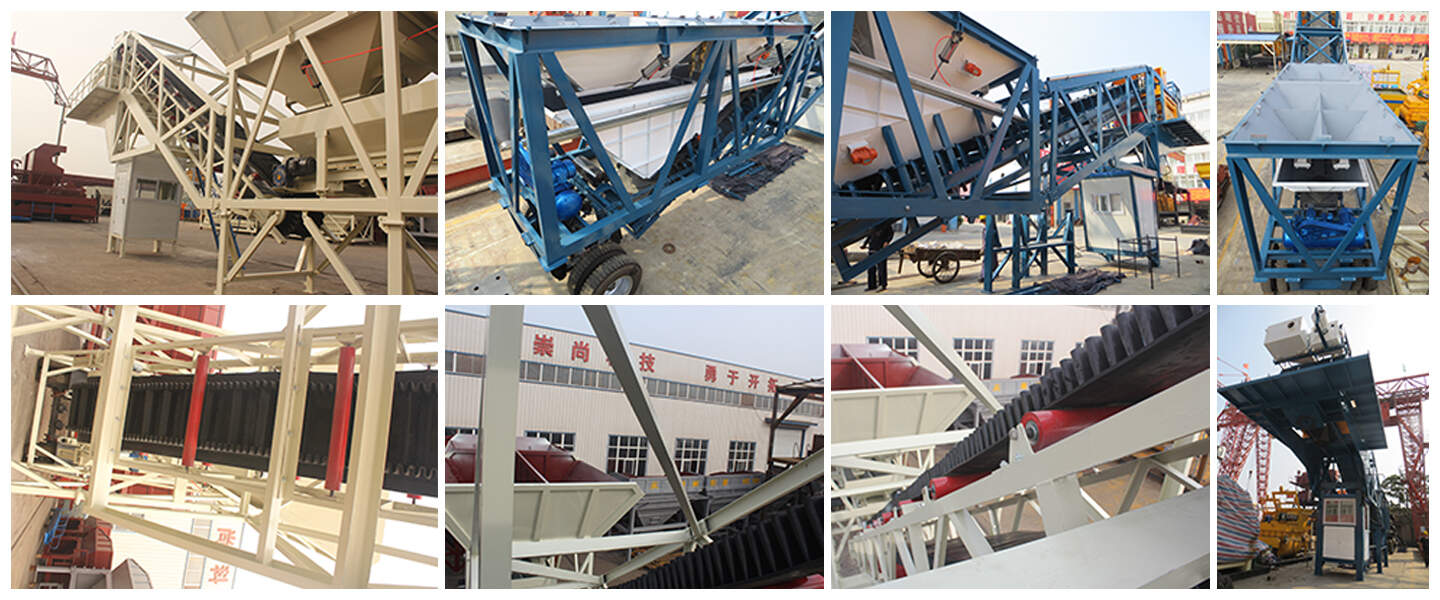

Product Details
