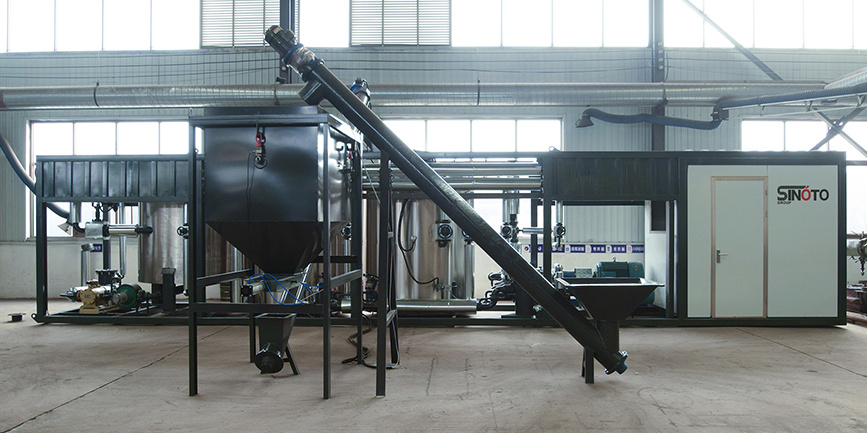

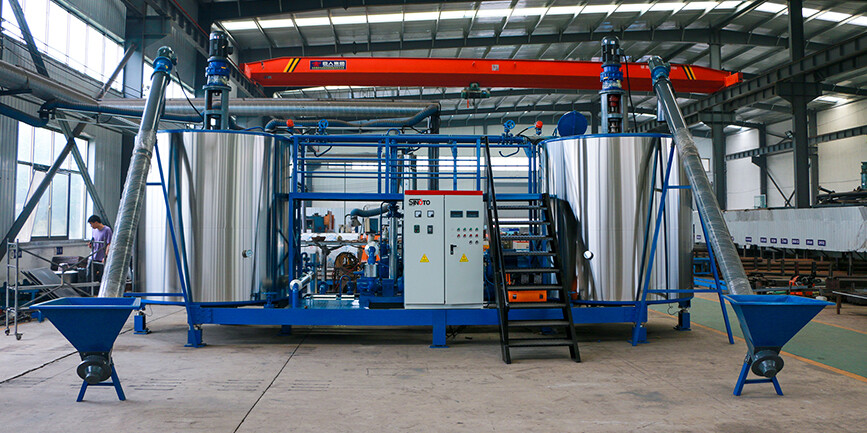

Polymer Modified Bitumen Plant

Polymer Modified Bitumen Plant
Polymer Modified Bitumen Plant
Polymer Modified Bitumen Plant
Polymer Modified Bitumen PlantPolymer Modified Bitumen PlantPolymer Modified Bitumen Plant

Productive Capacity: 5-20tph

Fineness: More than 85% is less than 10 microns

The SBS modified bitumen plant is a polymer-modified bitumen system designed to mix base asphalt with polymer modifiers such as SBS (styrene-butadiene-styrene), PE (polyethylene), and EVA (ethylene-vinyl acetate copolymer) through processes including shearing, swelling, and development. This significantly enhances the bitumen's high- and low-temperature performance, elasticity, and durability.

Our PMB plants are compatible with global polymer brands like Kraton, Dynasol, and LG Chem.

The SBS Modified Bitumen Applications:

Road construction: Modified Bitumen can be used in the surface layer, base layer and sub-base layer of the road, which can enhance the durability, stability and anti-aging performance of the road. It can also reduce noise and sticking phenomena, and improve driving safety.

Waterproofing Materials: Modified Bitumen can be used as the base material for waterproofing in basements, underground projects, and roofs. It can also be mixed with materials such as stone paint and fiberglass to achieve better waterproofing effects.

Send Email Get A Free Quote

Technical Parameter

Item

STMB-6

STMB-10

STMB-20

Productive Capacity

5-6t/h

8-10t/h

15-20t/h

Modifier Type

SBS/ SIS/ PE/ EVA and so on

Colloid Mill

45kw/75kw

75kw

2*75kw

Fineness

More than 85% is less than 10 microns

Mixing Tank Capacity

7m³

5m³

6m³

Spiral-Plate Heat Exchanger

/

100m²

2* 100m²

Swelling Tank Capacity

7m³

5m³

6m³

SBS Modifier Adding System

2*2tph

2*3tph

2*4tph

Base Bitumen Pump

5.5kw

7.5kw

15kw

Control System

Manual

Manual/Automatic

Manual/Automatic

Thermal Oil Furnace

6*10^5kcal

8*10^5kcal

12*10^5kcal

Total Power

65kw

100kw

200kw

Total Weight

6.5t

10t

25t

Polymer Modified Bitumen (PMB) Plant FAQ

Why is high-shear mixing essential for PMB?
High-shear mixing ensures that polymers like SBS/APP are ground into micron-sized particles. This creates a homogeneous distribution, which is vital for the thermal stability and elasticity of modified bitumen.
Can it handle high-viscosity SBS or crumb rubber?
Yes, our units feature high-torque colloid mills and reinforced agitators, making them capable of processing heavy modification projects, including high-content SBS and rubber crumb modification.
How is the polymer "development" process managed?
We use dedicated development tanks with thermal oil heating and specialized paddles. This allows the polymer to fully react and swell within the bitumen, ensuring the final product meets all technical standards.
Is the polymer dosing system automated?
Our plants are equipped with a PLC-controlled automatic dosing system. This guarantees precise weighing of additives, ensuring consistent batch quality and reducing human error on the job site.
Is the plant portable for different project sites?
The modular skid-mounted design ensures easy transport in standard containers. It's designed for quick setup and relocation, providing maximum flexibility for international road contractors.

Advantages

Product Advantages and Features

  • Intelligent Control System

    The control system is composed of PLC and industrial computer, featuring both automatic and manual operation modes. Even if the instrument fails, production can still continue. The asphalt pump is controlled by frequency conversion, and the thermal oil is regulated through dual control. Even when the thermal oil furnace operates at low power, the asphalt temperature can be rapidly increased. The thermal oil regulating valve is a dedicated component of our company. It forms a PID control system through PLC, temperature sensors and the thermal oil regulating valve, precisely regulating the rise and fall of asphalt temperature. The modifier adopts static weighing measurement, with higher accuracy than dynamic weighing.

  • High-Performance Core Component - Colloid Mill

    The colloid mill and asphalt pump adopt China's top brand, German technology, and continuously synchronize with the latest world processes. The material of the colloid mill has extremely high wear resistance, ensuring that the fineness of modified asphalt meets the standards and the equipment has a long lifespan, guaranteeing 100,000 tons of trouble-free operation. The dual colloid mills can be used in series or in parallel.

  • Adaptive And Functional Expansion

    Compatible with various modifiers, capable of handling SBS, SBR, rubber powder and other different modifiers to meet the requirements of different asphalt grades. Through preset parameters in the software, the production mode can be quickly switched (such as high elasticity asphalt or high viscosity asphalt). The high-speed stirring process enables the asphalt and modifiers to be fully mixed.

  • High Production Efficiency

    Heating asphalt rapidly under an air-sealed condition effectively prevents asphalt from aging. The asphalt level transmitter uses capillary tube to conduct pressure, and the medium can withstand a temperature of up to 200℃. The high-speed stirring process enables the asphalt and the modifier to be fully mixed. The spiral plate heat exchanger rapidly raises the asphalt temperature, ensuring the continuous production throughout the process without the need for batch interval operations. This not only guarantees the stable quality of the modified asphalt but also maintains high production output. The equipment can operate continuously for 24 hours.

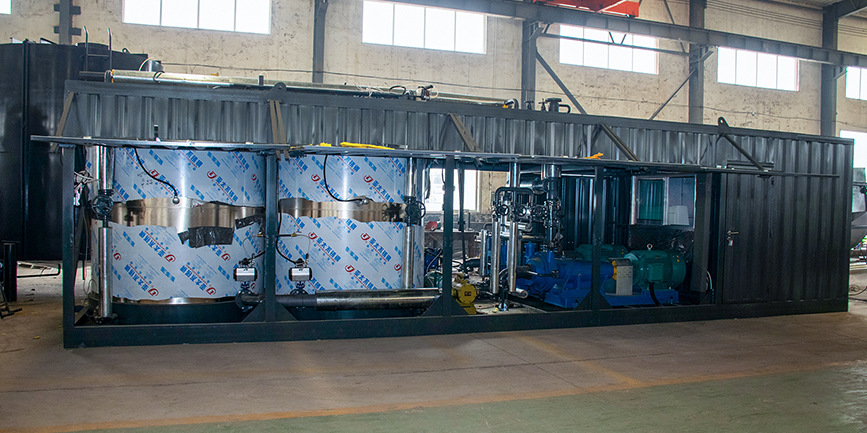

  • Modular Design

    SINOTO SBS Modified Bitumen Plant adopts an integrated design, which is convenient for container transportation; the pipeline layout is reasonable and tidy, and both the asphalt pipeline and the heat transfer oil pipeline are equipped with insulation rock wool. The equipment is easy to install and move, and can start production by simply connecting the pipelines and power supply.

Product Model

STMB-6 Polymer Modified Bitumen plant

Productive Capacity: 5-6tph

Motor Power of Colloid Mill: 45kw/75kw

Total Power: 65kw

Main Components: Rapid Heating System, Screw Feeding System, Base Asphalt Metering System, Rapid Mixing System, Colloid Mill, Modified Bitumen Maturation and Storage System, Stabilizer Dosing System, Control System.

Key Words: Modified Bitumen Plant, Polymer Modified Bitumen Plant, PMB Production Plant, SBS Modified Asphalt Plant, Bitumen Modification Plant, Bitumen Polymer Blending Plant, SBS Bitumen Plant.

Get A Quote

STMB-10 Polymer Modified Bitumen plant

Productive Capacity: 8-10tph

Motor Power of Colloid Mill: 75kw

Total Power: 100kw

Main Components: Rapid Heating System, Screw Feeding System, Base Asphalt Metering System, Rapid Mixing System, Colloid Mill, Modified Bitumen Maturation and Storage System, Stabilizer Dosing System, Control System.

Key Words: Modified Bitumen Plant, Polymer Modified Bitumen Plant, PMB Production Plant, SBS Modified Asphalt Plant, Bitumen Modification Plant, Bitumen Polymer Blending Plant, SBS Bitumen Plant.

Get A Quote

STMB-20 Polymer Modified Bitumen plant

Productive Capacity: 15-20tph

Motor Power of Colloid Mill: 2*75kw

Total Power: 200kw

Main Components: Rapid Heating System, Screw Feeding System, Base Asphalt Metering System, Rapid Mixing System, Colloid Mill, Modified Bitumen Maturation and Storage System, Stabilizer Dosing System, Control System.

Key Words: Modified Bitumen Plant, Polymer Modified Bitumen Plant, PMB Production Plant, SBS Modified Asphalt Plant, Bitumen Modification Plant, Bitumen Polymer Blending Plant, SBS Bitumen Plant.

Get A Quote

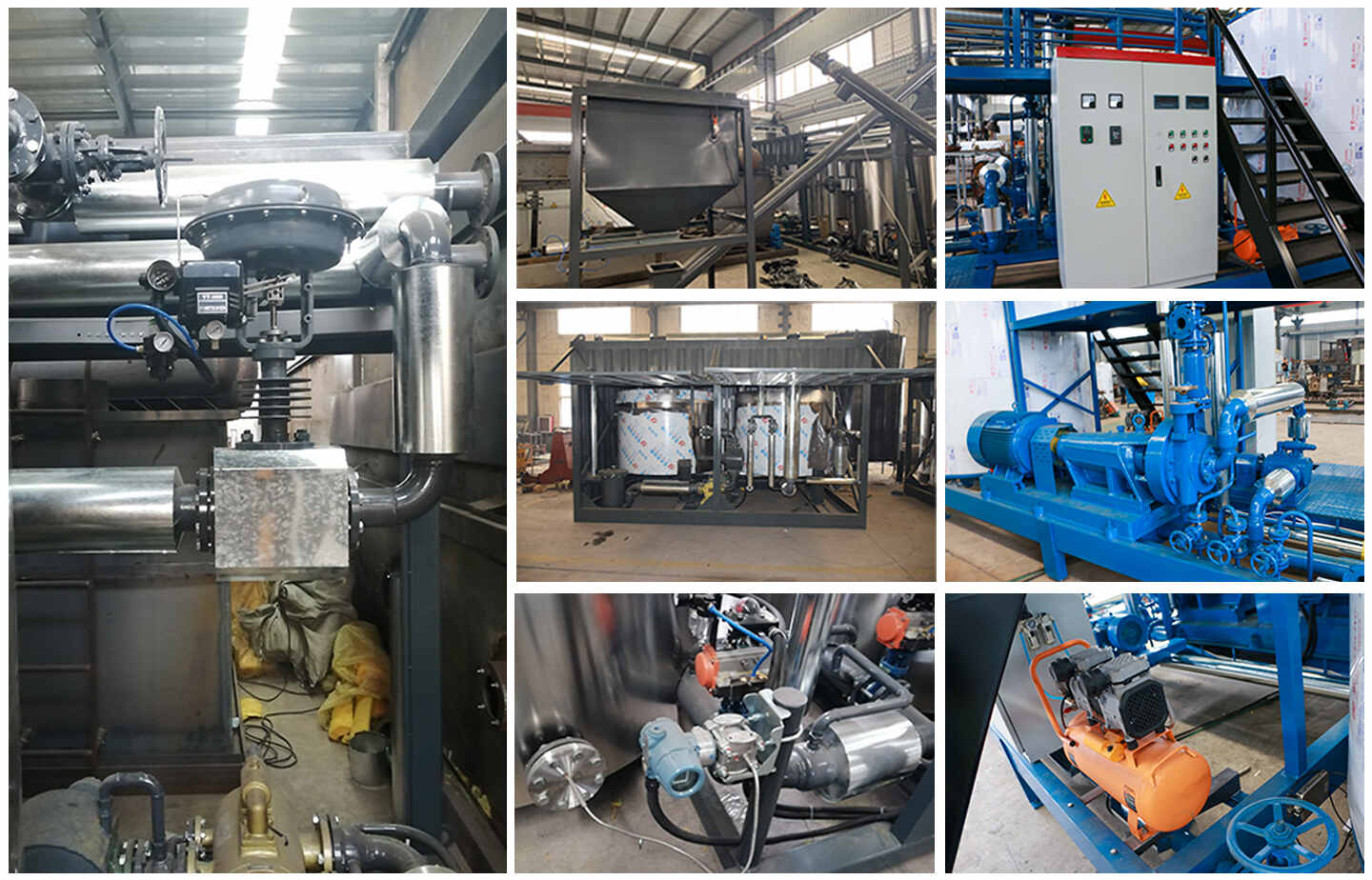

Product Details

Product Details
