Barrels Bitumen Melting Machine

Barrels Bitumen Melting Machine
Barrels Bitumen Melting Machine
Barrels Bitumen Melting MachineBarrels Bitumen Melting MachineBarrels Bitumen Melting Machine

Productive Capacity: 4-15tph

Heating Type: Oil Burner Heating/ Thermal Oil Heating

Barrels Bitumen Melting Machinery (Bitumen Decanter) is a kind of equipment that extracts the bitumen in barrels after heating and melting and pumps it to the bitumen storage tank. The mouth opened bitumen barrels is placed on the hydraulic turning mechanism of the bitumen melting machinery, and the barrels is turned over by hydraulic arm and pushed into the bitumen decanter; Through the burner or thermal oil furnace heating, so that the bitumen fully heat exchange, the bitumen in the barrel gradually reach the softening point and flow out of the barrel; then the bitumen is heat exchanged to reach the pumping temperature (120-160 ° C), and the hot bitumen is pumped to the bitumen tank or other bitumen storage devices; The empty bitumen barrels are pushed out of the bitumen melting machinery by extrusion thrust, so that the melting work can be carried out continuously and the efficiency of the equipment can be improved.

Send Email Get A Free Quote

Technical Parameter

Model

DT-4

DT-6

DT-10

DT-12

Productive Capacity(t/h)

4-5

6-8

8-10

12-15

Qty. of Barrels Accommodated(pcs)

30

40

44

60

Qty. of Rails(pcs)

2

2

2

3

Volume of Bitumen Pool(m³)

14

17

18

22

Bitumen Output Flow(m³/h)

9.8

16.8

16.8

19

Heating Type

Diesel/Gas Burner Heating/ Thermal Oil Heating Furnace

Total Power(kw)

9.5

18.5

20.5

20.5

Overall Size(mm)

8500*2250*2450

10500*2250*2450

11500*2250*2450

11500*3000*2450

Total Weight(kg)

9500

12500

13500

20000

Note: The bitumen decanter supports customization of different capacities and sizes based on your different requirement.

Technical FAQ & Support

How long does it take to melt one drum?
The melting time depends on the heating source. Our high-efficiency bitumen decanting machine typically melts bitumen drums within 40-60 minutes using a high-temperature thermal oil coil system.
Is it compatible with deformed or damaged drums?
Yes, our drum bitumen decanter features a robust hydraulic pushing system and a spacious internal melting chamber, which allows it to process slightly deformed or rusted drums without jamming.
What is the environmental protection level?
Our bitumen melting units are designed with a fully enclosed structure to prevent heat loss. We also offer an optional exhaust gas filtration system to collect and treat blue smoke.
Does it support overseas containerized shipping?
Absolutely. Our bitumen decanter adopts a modular design. The main body dimensions are optimized to fit into standard 40ft HQ containers, reducing shipping costs and simplifying assembly.
What heating sources can be used?
Our units can be integrated with existing Thermal Oil Boilers. Alternatively, we provide integrated decanters with built-in burners (Diesel, Gas, or Heavy Oil options).

Advantages

Product Advantages and Features

  • High Safety

    Employs thermal oil indirect heating, avoiding direct open flame heating and eliminating the fire and explosion risks common in traditional equipment. Equipped with automatic temperature and pressure control systems and a high-temperature alarm system. Enclosed operation reduces personnel exposure to hot asphalt and harmful gases.

  • High Thermal Efficiency

    Unique finned tube technology increases the heat exchange area to 1.5 times that of conventional thermal oil pipes. The asphalt fume recovery and hot air circulation system ensures uniform asphalt heating, reducing heat loss, saving fuel, and protecting the environment.

  • Precise Temperature Control

    A fully automatic temperature control system regulates ignition based on temperature, preventing localized overheating, aging, or carbonization of the asphalt, thus maintaining its original performance specifications.

  • Continuous Production, Increased Output

    Hydraulic barrel tilting and loading mechanisms replace hazardous manual operations. Continuous barrel feeding and automatic discharge ensure uninterrupted asphalt drum removal and melting processes, saving time and labor. Output is increased by 30%-50% compared to traditional bitumen melting machine.

  • Simple Operation

    The equipment features centralized control or a PLC control system for one-touch start-up and simple operation. Its compact structure design facilitates movement, installation, and maintenance.

Product Model

DT-4 Bitumen Melting Machine

Productive Capacity: 4-5tph

Qty. of Barrels Accommodated: 30pcs

Volume of Bitumen Pool: 14m³

Main Components: Main Body Section, Bitumen Barrels Feeding System, Barrels Heating System, Bitumen Heating System, Bitumen Extraction System, Control System.

Key Words: Bitumen Decanter, Bitumen Decanting Machine, Bitumen Melting machine, Asphalt Melting Equipment, Asphalt Drum Melter, Asphalt Decanting Equipment, Asphalt Melting System.

Get A Quote

DT-6 Bitumen Melting Machine

Productive Capacity: 6-8tph

Qty. of Barrels Accommodated: 40pcs

Volume of Bitumen Pool: 17m³

Main Components: Main Body Section, Bitumen Barrels Feeding System, Barrels Heating System, Bitumen Heating System, Bitumen Extraction System, Control System.

Key Words: Bitumen Decanter, Bitumen Decanting Machine, Bitumen Melting machine, Asphalt Melting Equipment, Asphalt Drum Melter, Asphalt Decanting Equipment, Asphalt Melting System.

Get A Quote

DT-10 Bitumen Melting Machine

Productive Capacity: 8-10tph

Qty. of Barrels Accommodated: 44pcs

Volume of Bitumen Pool: 18m³

Main Components: Main Body Section, Bitumen Barrels Feeding System, Barrels Heating System, Bitumen Heating System, Bitumen Extraction System, Control System.

Key Words: Bitumen Decanter, Bitumen Decanting Machine, Bitumen Melting machine, Asphalt Melting Equipment, Asphalt Drum Melter, Asphalt Decanting Equipment, Asphalt Melting System.

Get A Quote

DT-12 Bitumen Melting Machine

Productive Capacity: 12-15tph

Qty. of Barrels Accommodated: 60pcs

Volume of Bitumen Pool: 22m³

Main Components: Main Body Section, Bitumen Barrels Feeding System, Barrels Heating System, Bitumen Heating System, Bitumen Extraction System, Control System.

Key Words: Bitumen Decanter, Bitumen Decanting Machine, Bitumen Melting machine, Asphalt Melting Equipment, Asphalt Drum Melter, Asphalt Decanting Equipment, Asphalt Melting System.

Get A Quote

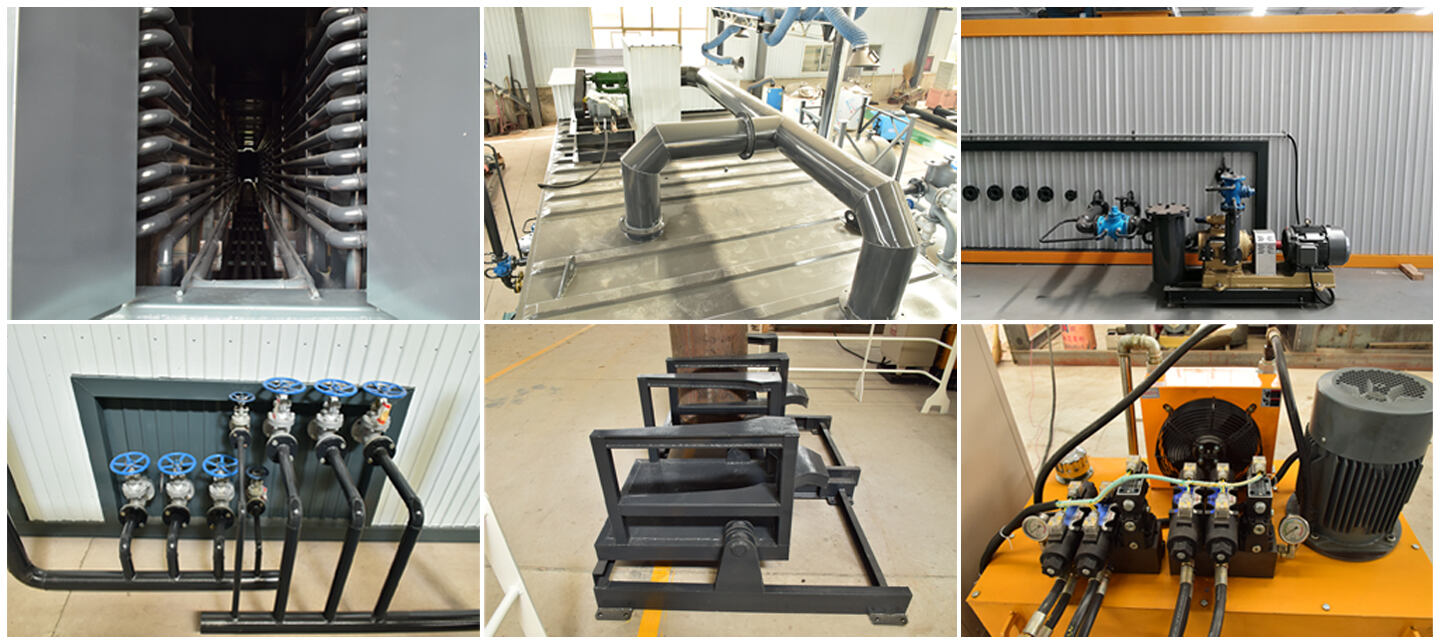

Product Details
