What is the production capacity of your stationary asphalt batching plants?

Our stationary asphalt mixing plants range from 40 tph to 400 tph. Popular models include the 120 tph, 160 tph, and 240 tph units, providing flexible solutions for small to mega-scale highway construction projects.

How does the equipment ensure environmental compliance?

Every eco-friendly asphalt batch plant we manufacture is equipped with a high-efficiency baghouse filter system, reducing dust emissions to below 20mg/Nm³, meeting the strictest global environmental standards.

What are the key technical advantages of the automatic asphalt batching plant?

Our automatic asphalt batching plant features a fully integrated PLC control system with high-precision weighing sensors (±0.5% accuracy) and a multi-fuel burner, ensuring consistent hot mix asphalt quality and low operational costs.

Can you provide the stationary hot mix asphalt plant cost and layout design?

Yes, we provide customized stationary hot mix asphalt plant cost estimates and CAD layout designs based on your site dimensions, local aggregate conditions, and specific project requirements. Contact us for a free consultation.

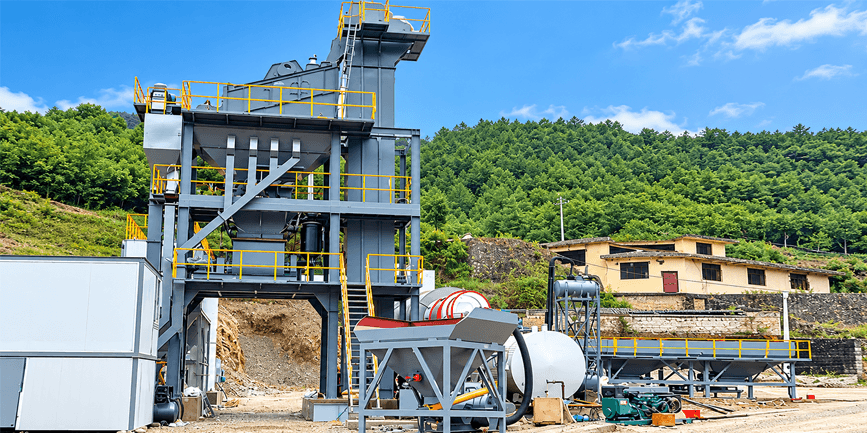

Stationary Asphalt Batching Plant for Sale | 40-400 tph Professional Mixing Station-HENAN SINOTO MACHINERY TECHNOLOGY CO., LTD

Technical Parameter

Model				LB1000	LB1500	LB2000	LB3000	LB4000
Main Parameters	Capacity(T/H)			90	130	175	260	340
	Total Power(kw)			242	326	413	590	836
	Noise(dB)			≤70
	Voltage			220V/380V-50HZ(Adjustable)
Cold Feeder	Cold Bin(M³)			4*7	4*8	5*8	5*10	6*10
	Belt Feeding Capacity(T/H)			90	130	175	260	340
	Belt Width(mm)			500	600	650	800	800
	Feeding Belt Adjustment Mode			Frequency Invertor
Drying System	Drying Capacity(T/H)			90	130	175	260	340
	Dryer Drum Size(mm)			Φ1650*7000	Φ1800*8000	Φ2200*9000	2600*9500	Φ2800*11000
	Drive Motor Power(kw)			4*7.5	4*11	415/418.5	4*22	4*30
	Fuel			Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas
	Coal Burner	Max Burning Amount (Kg /H)		1300	1700	2500	3600	4500
	Oil Burner	Max Burning Amount (Kg /H))		110-550	170-850	200-1000	300-1400	360-1800
		Power(kw)		1120-6100	1900-9500	2250-11160	3150-15630	4000-20000
Dust Collecting System	Primary Gravity Dust Collector			Cyclone Dust Collector, Volute Casing Collector
	Baghouse Dust Collector	Filter Area(M²)		420	530	620	1020	1260
		Filter Bag		NOMEX (USA. Dupont)
		Air Emissions		≤20mg/Nm³
		Air Black		Ringelmann I
		Blower(M³/Min)		570	740	1130	1600	2230
Mixing Tower	Hot Aggregate Elevator		Type	Chain Elevating
			Capacity(T/H)	100	130	180	260	340
	Vibrating Screen		Screening Decks	4	4	5	5	6
			Screening Area (M²)	14.7	24.2	24.2	27.2	28.9
	Hot Storage Bin		Quantity	4+1	4+1	5+1	5+1	6+1
			Capacity (M³)	18	28.5	32.5	45	65
	Mixer		Mixer Capacity(kg)	1100	1600	2200	3000	4000
			Type	Double Axis Forcing Stirring Batch Mixer
			Mixing Cycle(s)	45
			Mixing Power(kw)	2*18.5	2*30	2*37	2*45	2*55
	Weighing System			Hot Aggregate: ±0.5%; Bitumen: ±0.25%; Filler: ±0.2%
Bitumen Supply System	Heating Type			Electric Heating/Hot Oil Heating System
	Bitumen Pump			Screw Pump Injection Type
	Discharge Bitumen Pump(L/Min)			300	500	700	900	900
	Bitumen Tank(M³)			40	2*40	2*40	3*40	4*40
	Fuel Tank			Optional
Filler Supply System	Filler Silo			Optional
	Screw Conveyor Capacity(T/H)			15	20	24	36	44
Hot Mix Storage Silo	Bottom Placed/Side Placed			40t/60t/80t, Optional
Pneumatic System	Air Compressor			Screw Air Compressor
	Air Storage Tank			600L---2000L Optional
Control System	Fully Automatic Computer Control (IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER)
Remarks: Above Specifications Are for Reference Only, SINOTO Reserves the Right to Make Changes

Technical FAQ & Support

What is the difference between stationary and mobile asphalt plants?

A stationary asphalt mixing plant is designed for long-term projects in a fixed location. It offers higher production capacities (up to 400 tph), better structural stability, and more sophisticated dust collection systems compared to mobile units, making it the standard for highway construction.

Is the mixing process fully automated?

Yes, our automatic asphalt batching plant uses an industrial-grade PLC control system. Operators can monitor the entire process—from cold aggregate feeding to hot mix discharge—via a real-time interface, ensuring high-capacity and consistent quality.

How do I choose the right model for my project?

Choosing the right stationary hot mix asphalt plant depends on your daily asphalt demand. For example, a 160 tph mixing plant is ideal for large road works, while an 80 tph unit is better for urban maintenance. We can help you calculate the cost and ROI based on your project volume.

What kind of fuel can be used for the burner?

Our plants are equipped with versatile burners that can use Diesel, Heavy Oil, Natural Gas, or Liquefied Gas. This flexibility allows you to choose the most cost-effective fuel source available in your region.

Advantages

Product Advantages and Features

Modular Design
Utilizes a modular structure (e.g., quick-release flange connections between the main tower and drying drum). Disassembly/assembly time can be controlled within 72 hours, saving 40% labor compared to traditional welded structures. This design enhances equipment relocation efficiency, especially suitable for frequently moving construction sites.
Outstanding Production Efficiency
Designed with 110% mixing capacity margin. Boiling mixing technology significantly improves efficiency, with a single mixing cycle taking only 45 seconds.
Convenient Maintenance
Modular design reduces maintenance difficulty, featuring low failure rates and minimized downtime. Certain models incorporate sensor-actuated door opening/closing technology, further simplifying operation.
Superior Environmental Performance
Equipped with a dust collection system combined with eco-friendly burners and flue gas purification equipment. Achieves high-temperature cracking treatment of asphalt fumes, meeting national emission standards. Some models also reduce fuel consumption by introducing secondary combustion of RAP (Recycled Asphalt Pavement) exhaust gases.
Strong Adaptability
Supports high-altitude construction (above 2500 meters) through nozzle replacement and air-fuel ratio optimization for ignition performance. Features constant-temperature dehumidification modules and variable frequency drives (VFDs) for humid/hot environments, reducing fault downtime by 80%.
Intelligent Management
Employs an informatization system for real-time production process monitoring, reducing operational intensity. Examples include intelligent compensation for material loss during batching to ensure accuracy, and predictive maintenance systems for early fault warnings.

Product Model

LB1000 Asphalt Batching Plant

Productive Capacity: 90tph

Plant Covering Area: 40*32*18m

Total Power: about 242kw

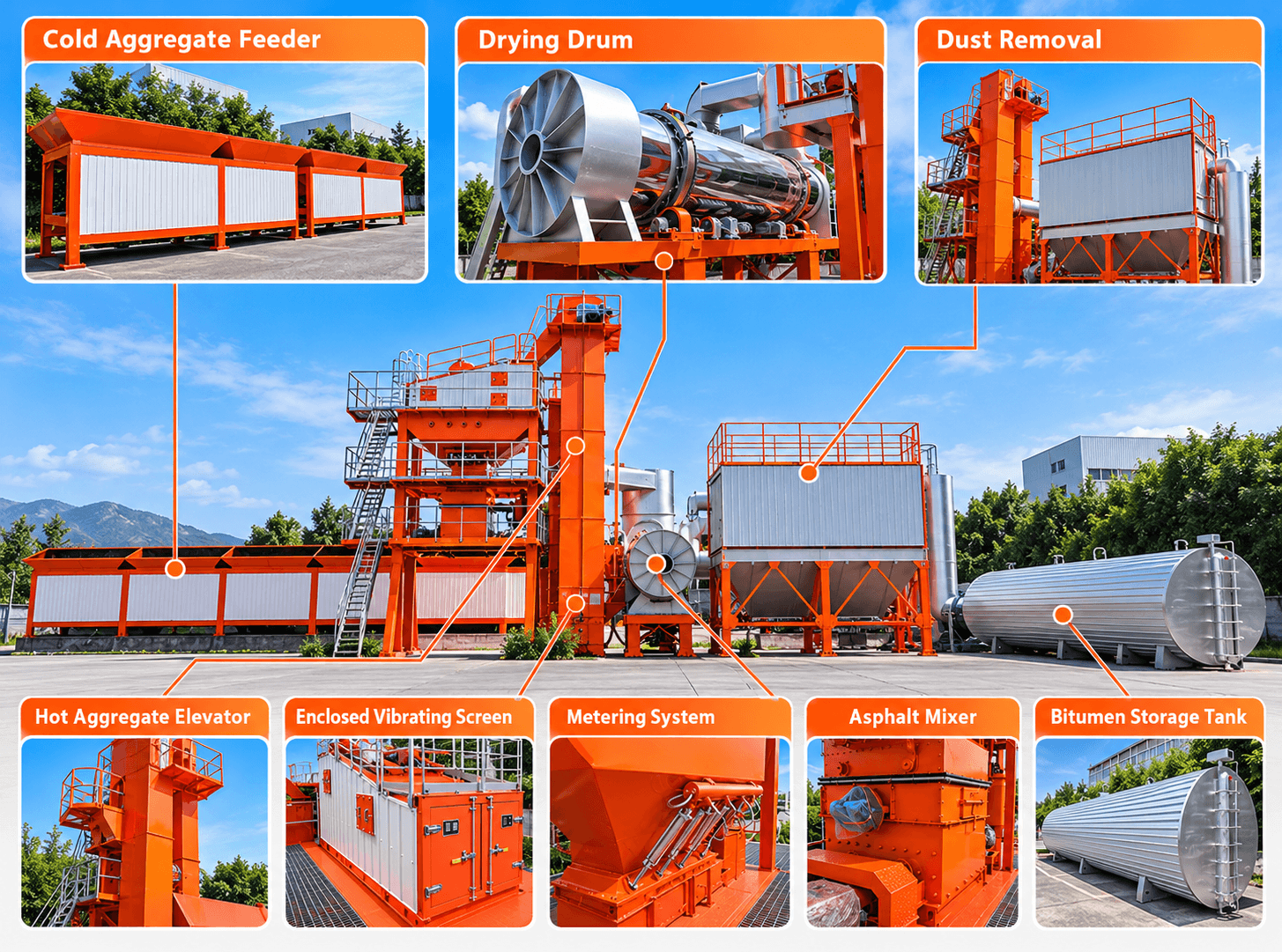

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Filler Supply System, Bitumen Supply System, Mixing Tower, Pneumatic System, Control System.

Key Words: Stationary Asphalt Plant, Asphalt Batching Plant, Asphalt Mixing Plant, New Asphalt Batching Plant, Batch Mix Asphalt Plant, Asphalt Plant Manufacturer, Hot Mix Plant, New Asphalt Batching Plant, Asphalt Mixing Plant Supplier, Used Asphalt Plant.

Get A Quote

LB2000 Asphalt Batching Plant

Productive Capacity: 175tph

Plant Covering Area: 43*37*18m

Total Power: about 413kw

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Filler Supply System, Bitumen Supply System, Mixing Tower, Pneumatic System, Control System.

Key Words: Stationary Asphalt Plant, Asphalt Batching Plant, Asphalt Mixing Plant, New Asphalt Batching Plant, Batch Mix Asphalt Plant, Asphalt Plant Manufacturer, Hot Mix Plant, New Asphalt Batching Plant, Asphalt Mixing Plant Supplier, Used Asphalt Plant.

Get A Quote

LB3000 Asphalt Batching Plant

Productive Capacity: 260tph

Plant Covering Area: 43*42*18m

Total Power: about 590kw

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Filler Supply System, Bitumen Supply System, Mixing Tower, Pneumatic System, Control System.

Key Words: Stationary Asphalt Plant, Asphalt Batching Plant, Asphalt Mixing Plant, New Asphalt Batching Plant, Batch Mix Asphalt Plant, Asphalt Plant Manufacturer, Hot Mix Plant, New Asphalt Batching Plant, Asphalt Mixing Plant Supplier, Used Asphalt Plant.

Get A Quote

LB4000 Asphalt Batching Plant

Productive Capacity: 340tph

Plant Covering Area: 53*42*18m

Total Power: about 836kw

Main Components: Cold Aggregate Feed System, Drying Drum, Burner, Dust Collection System, Filler Supply System, Bitumen Supply System, Mixing Tower, Pneumatic System, Control System.

Key Words: Stationary Asphalt Plant, Asphalt Batching Plant, Asphalt Mixing Plant, New Asphalt Batching Plant, Batch Mix Asphalt Plant, Asphalt Plant Manufacturer, Hot Mix Plant, New Asphalt Batching Plant, Asphalt Mixing Plant Supplier, Used Asphalt Plant.

Get A Quote

Product Details

Fill in Your Requirements

Related Product

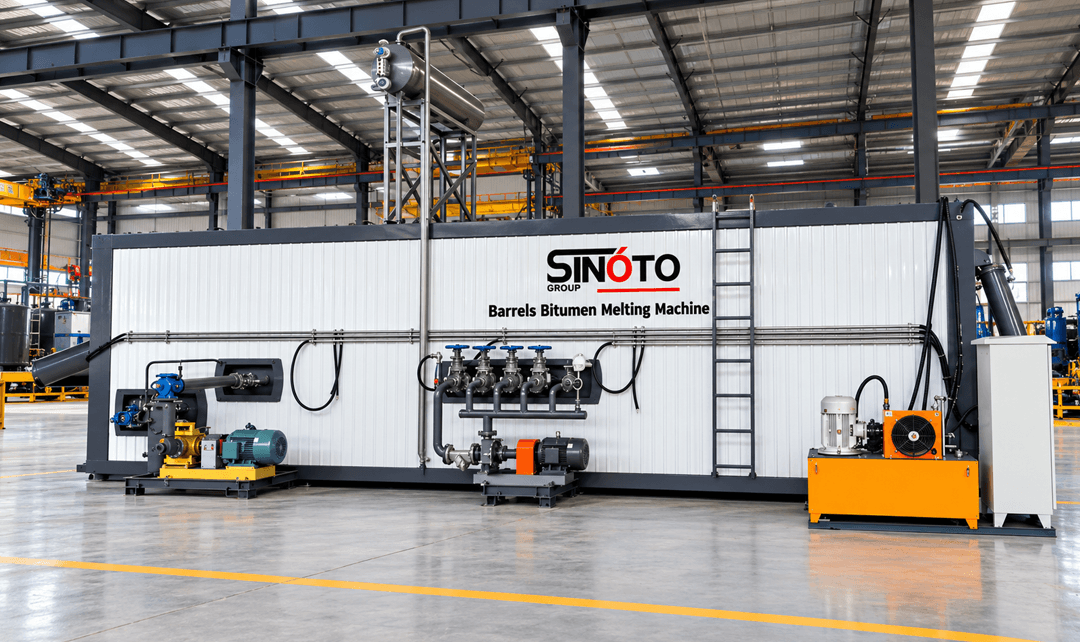

Barrels Bitumen Melting Machine

Barrels Bitumen Melting Machinery (Bitumen Decanter) is a kind of equipment that extracts the bitumen in barrels after heating and melting and pumps it to the bitumen storage tank.

Learn More

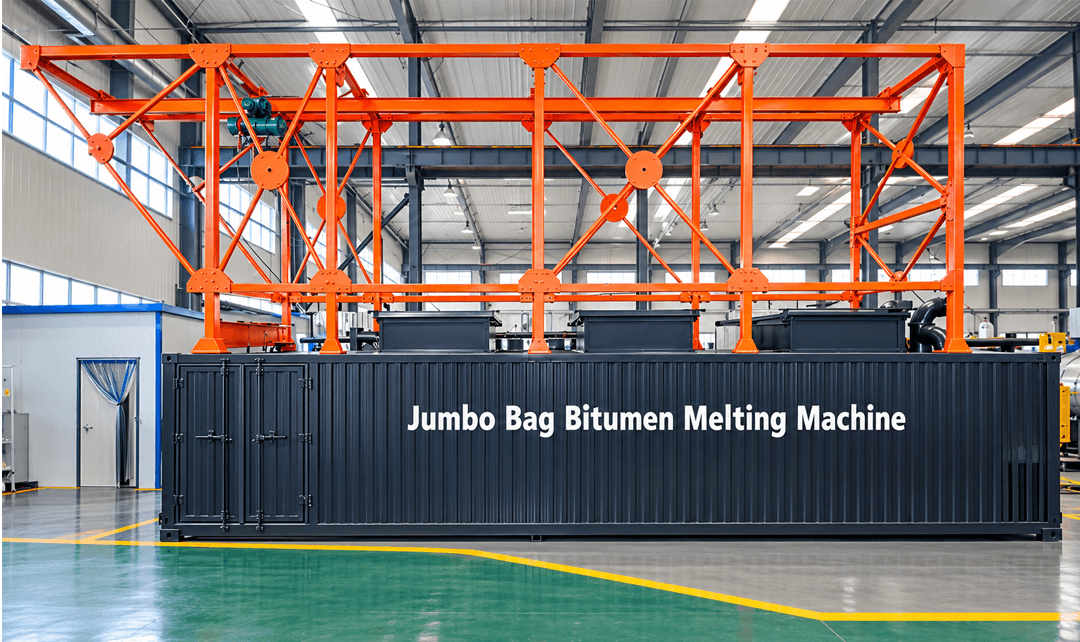

Jumbo Bag Bitumen Melting Machine
