Wheel Loader Type Sweeper

Wheel Loader Type Sweeper
Wheel Loader Type Sweeper
Wheel Loader Type SweeperWheel Loader Type SweeperWheel Loader Type Sweeper

Max. Dumping Height: 3200mm

Hopper Capacity: 400-1200L

Wheel Loader Type Sweeper is a specialized equipment integrating loader and sweeper functions, designed for cleaning and waste management in roads, construction sites, ports, and complex terrains. It performs dual operations:

Loader Functions: Shoveling, transporting loose materials (e.g., gravel, debris).

Sweeper Functions: Road sweeping, waste collection, and transfer with dust suppression.

Send Email Get A Free Quote

Technical Parameter

Model

S930

S935

A930

Dimensions (L×W×H)

6860*2150*2800

6850*2450*2950

6560*2150*2220

Max. Dumping Height

3200mm

3200mm

3200mm

Rated Load

1800kg

1850kg

1600kg

Operating Weight

3750kg

4980kg

4250kg

Tire Size

20.5-16

16/70-20

20.5-16

Engine Brand

Xichai/ Quanchai/ Yunnei/ Yuchai (Optional)

Rated Power

70-85hp

90-110hp

70-85hp

Transmission

Dual-range: 1F/1R per range

Sweeping Unit

Sweeper Dimensions

1710*2150*690mm

1710*2150*700mm

1730*2150*750mm

1710*2450*690mm

1710*2450*700mm

1730*2450*750mm

Hopper Capacity

500L

1100L

400L

600L

1200L

500L

Working Width

1850mm

1850mm+600mm

1850mm

2150mm

2150mm+600mm

2150mm

Brush Diameter

660 mm (Steel-PP composite)

Total Weight

480kg

580kg

630kg

530kg

630kg

715kg

Water Tank

600L

600L

600L

Spray System

Electric pump, independent control

Side Brushes

Optional

Technical FAQ & Support

What makes this different from a standard street sweeper?
Unlike standard sweepers, the Wheel Loader Type Sweeper can perform heavy-duty shoveling. It’s a multi-functional road sweeper for construction sites that can move piles of gravel before sweeping the remaining dust, saving you the cost of two separate machines.
Can it handle heavy debris like rocks and bricks?
Yes. As a heavy-duty wheel loader sweeper, it uses reinforced high-strength bristles and a robust loader bucket. It is designed to collect not just dust, but also larger waste materials commonly found in ports and complex terrains.
How effective is the dust suppression system?
Our industrial loader sweeper with dust suppression system includes a high-capacity water tank and synchronized sprayers. This ensures that even in dry, windy construction environments, the cleaning process remains eco-friendly and compliant with local regulations.
Is the sweeper attachment detachable?
We offer both integrated models and loader sweeper attachments with quick-hitch systems. This allows you to switch between a standard bucket and the sweeper unit in minutes, maximizing the utility of your wheel loader.

Advantages

Product Advantages and Features

  • Multi-Functional Integration

    Front Loader: Bucket for material handling (gravel, soil, debris). Sweeping System: Rotating brush + Vacuum/Suction device. High-pressure spray (optional) for dust suppression. Waste Collection: Enclosed hopper/conveyor prevents secondary pollution.

  • High-Efficiency Operation

    Processes mixed waste: Large debris (stones, branches) + Fine dust. Covers 3× wider areas vs. traditional sweepers (e.g., mines, construction zones).

  • Superior Adaptability

    Off-road chassis: 280mm ground clearance (calculated from tire specs). Attachment-Ready: Quick-change interfaces for snow plows, breakers, etc.

  • Eco-Design

    Dust Suppression: ISO 20218-compliant spray system reduces PM10 by 90%. Low-Emission Engine: Meets EU Stage V / China IV standards.

Product Model

S930 Wheel Loader Type Sweeper

Working Width: 1850/2150mm

Hopper Capacity: 500/600L

Main Components: Wheel Loader Part, Brush, Hydraulic System, Water Supply System, etc.

Application: New Road Construction (clean cement-stabilized soil crushed stone before Prime Coating, clean the chips after asphalt synchronous chips sealer paving), Road Maintenance (clean asphalt recycling material after milling).

Get A Quote

S935 Wheel Loader Type Sweeper

Working Width: 1850+600mm/2150+600mm

Hopper Capacity: 1100/1200L

Main Components: Wheel Loader Part, Brush, Hydraulic System, Water Supply System, etc.

Application: New Road Construction (clean cement-stabilized soil crushed stone before Prime Coating, clean the chips after asphalt synchronous chips sealer paving), Road Maintenance (clean asphalt recycling material after milling).

Get A Quote

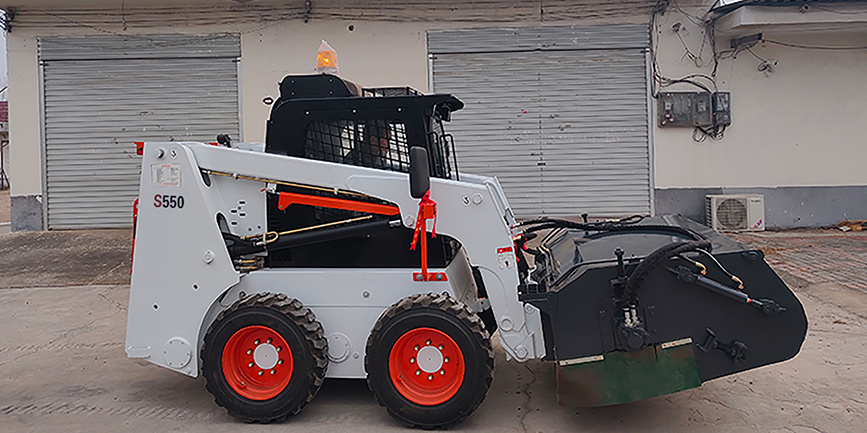

S550 Wheel Loader Type Sweeper

Working Width: 1850mm

Hopper Capacity: 500L

Main Components: Wheel Loader Part, Brush, Hydraulic System, Water Supply System, etc.

Application: New Road Construction (clean cement-stabilized soil crushed stone before Prime Coating, clean the chips after asphalt synchronous chips sealer paving), Road Maintenance (clean asphalt recycling material after milling).

Get A Quote

Product Details

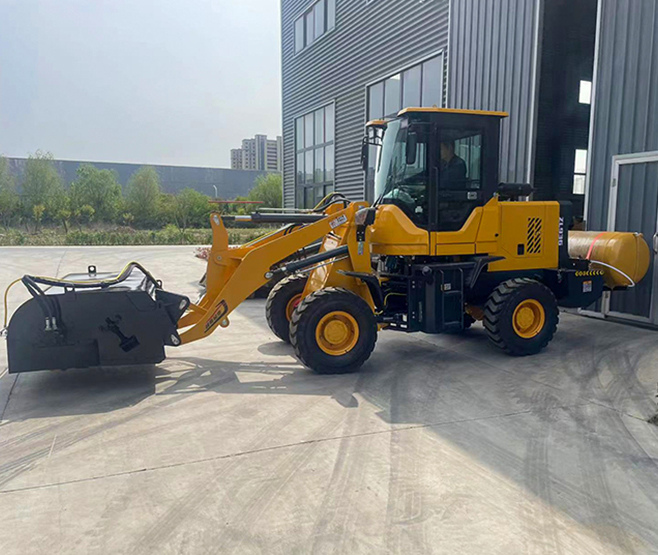

  • Wheel-Loader-Type-Sweeper05

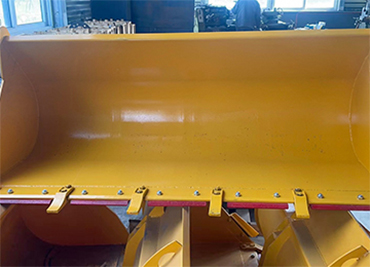

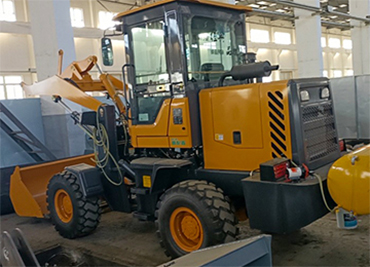

  • Wheel-Loader-Type-Sweeper06 Wheel-Loader-Type-Sweeper07

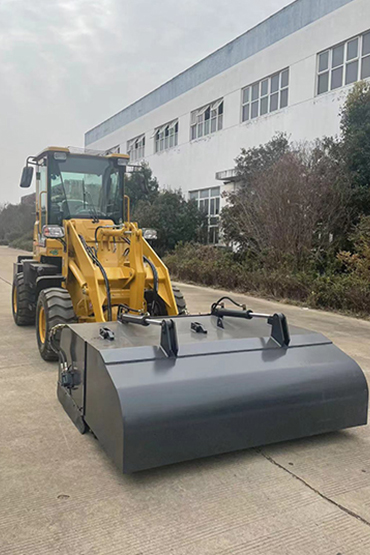

  • Wheel-Loader-Type-Sweeper08
