Dustless Suction Sweeper Truck

Dustless Suction Sweeper Truck
Dustless Suction Sweeper Truck
Dustless Suction Sweeper TruckDustless Suction Sweeper TruckDustless Suction Sweeper Truck

Max. Sweeping Width: 1900-3000mm

Storage Hopper Capacity: 5-12 m³

The Dustless Suction Sweeper Truck is primarily used for dust-free, high-power cleaning of cement-stabilized soil and gravel before the application of permeable layer coatings on newly constructed roads. It is also employed for cleaning road surfaces after milling in highway maintenance and construction, as well as recovering excess gravel post-synchronized gravel paving. Additionally, it can be utilized in other scenarios such as asphalt or cement mixing plants, national/provincial highways, and heavily polluted urban roads. This equipment is an indispensable specialized machine for highway construction, designed specifically for road engineering and widely applied in highway and municipal construction. This dust-free, high-power vacuum sweeper is a new-generation road construction equipment independently developed by our company, boasting domestic leading technology and independent intellectual property rights. After years of practical application and continuous optimization, this product series has become the ideal solution for vacuum-sweeping operations in highways and is currently the most suitable cleaning equipment for domestic road surfaces.

Technical Parameter

Model



HTN5075TSL

HTN5180TXC

HTN5181TXC

Chassis Brand



Dongfeng

Dongfeng/SinoTruck

SinoTruck

Total Weight

t

7.6

18

18

Engine Power

hp

82

200

220

Emission Standard



China V

China V

China V

Working Speed

km/h

1.0-10

1.0-10

1. 0-10

Auxiliary Engine Power

kW(hp)

57(77)

103 ( 140 )

103 ( 140)

Storage Hopper Capacity

5

12

10

Filter Drum Qty.



10

10

10

Fresh Water Tank

5

— —

4.5

Flow Rates of High-Pressure Water Pump



142l/min

142l/min

142l/min

Max. Sweeping Width

mm

1900

2400 ( 3000 )

2100 ( 2700 )

Max. Sweeping Capacity



5700㎡/h

9000㎡/h

8100㎡/h

Overall Size

mm

6010*2350*2530

8100 *2480*3170

8900* 2510*3360

Technical FAQ & Support

How does "Pure Suction" technology prevent secondary dust?
Unlike traditional sweepers that use brushes, SINOTO pure suction road cleaner uses a high-power vacuum system with advanced filtration. It sucks up everything from fine dust to gravel without any sweeping-induced clouds, making it truly dust-free.
Is this machine effective for gravel recovery?
Yes, it is widely used as a gravel recovery vacuum truck after chip sealing. It allows contractors to recycle excess stone chips efficiently, which significantly reduces total project material expenses.
Can it operate in heavy industrial areas like mixing plants?
Our dust-free sweeper for asphalt mixing plants is built with reinforced internal components to withstand the abrasive nature of cement and asphalt dust, ensuring long-term durability in the most demanding industrial environments.
What makes your technology "Domestic Leading"?
Developed with independent intellectual property rights, this high-power vacuum sweeper for highway construction features an optimized airflow design that provides higher suction force with lower energy consumption than standard models.

Advantages

Product Advantages and Features

  • Dust-Free Operation with Exceptional Environmental Performance

    Multi-stage Filtration System (Cyclone Separation + Filter Cartridge/HEPA): Controls dust escape rate below 5%, significantly lower than traditional sweepers (dust dispersion rate 30%~50%). Spray Dust Suppression: Equipped with high-pressure mist nozzles on the suction nozzle to suppress secondary dust emission during operation in real-time.

  • Superior Suction Capability

    High-power negative pressure fan (suction force 20-30 kPa) handles waste difficult for traditional equipment: Heavy particles: Gravel, metal chips, glass shards (particle size up to 10 cm). Mixed waste: Combinations of dust and solid waste (e.g., construction demolition debris).

  • Adaptability to Complex Working Conditions

    Explosion-Proof Design: Suitable for flammable/explosive dust (e.g., aluminum powder, coal dust, flour mills). Features static electricity elimination and spark-proof/flameproof motors. All-Terrain Chassis: Engineered for off-road capability equivalent to construction machinery. Ensures stable operation on rough surfaces like construction sites and mines.

  • Intelligent Operation

    Automatic Filter Cleaning: Timed filter cartridge reverse-pulse cleaning extends filter life by over 50%. Real-Time Monitoring: On-board display alerts for filter blockage, full debris bin, and system faults, reducing manual inspection frequency. Modular Design: Key components (e.g., suction nozzle, fan) feature quick-release for fast replacement, enhancing maintenance efficiency.

  • Low Maintenance

    Modular Design: Key components (e.g., suction nozzle, fan) feature quick-release for fast replacement, enhancing maintenance efficiency.

Product Model

HTN5075TSL Dustless Suction Sweeper Truck

Max. Sweeping Width: 1900mm

Max. Sweeping Capacity: 5700m2/h

Main Components: Power System, Suction & Cleaning System, Dust-Free Filtration System, Waste Storage & Discharge System, Intelligent Control System, Chassis & Mobility System, Eco & Safety Accessories (Optional).

Application: New Road Construction (clean cement-stabilized soil crushed stone before Prime Coating, clean the chips after asphalt synchronous chips sealer paving), Road Maintenance (clean asphalt recycling material after milling).

Get A Quote

HTN5180TXC Dustless Suction Sweeper Truck

Max. Sweeping Width: 2400(3000)mm

Max. Sweeping Capacity: 9000m2/h

Main Components: Power System, Suction & Cleaning System, Dust-Free Filtration System, Waste Storage & Discharge System, Intelligent Control System, Chassis & Mobility System, Eco & Safety Accessories (Optional).

Application: New Road Construction (clean cement-stabilized soil crushed stone before Prime Coating, clean the chips after asphalt synchronous chips sealer paving), Road Maintenance (clean asphalt recycling material after milling).

Get A Quote

HTN5181TXC Dustless Suction Sweeper Truck

Max. Sweeping Width: 2100(2700)mm

Max. Sweeping Capacity: 8100m2/h

Main Components: Power System, Suction & Cleaning System, Dust-Free Filtration System, Waste Storage & Discharge System, Intelligent Control System, Chassis & Mobility System, Eco & Safety Accessories (Optional).

Application: New Road Construction (clean cement-stabilized soil crushed stone before Prime Coating, clean the chips after asphalt synchronous chips sealer paving), Road Maintenance (clean asphalt recycling material after milling).

Get A Quote

Product Details

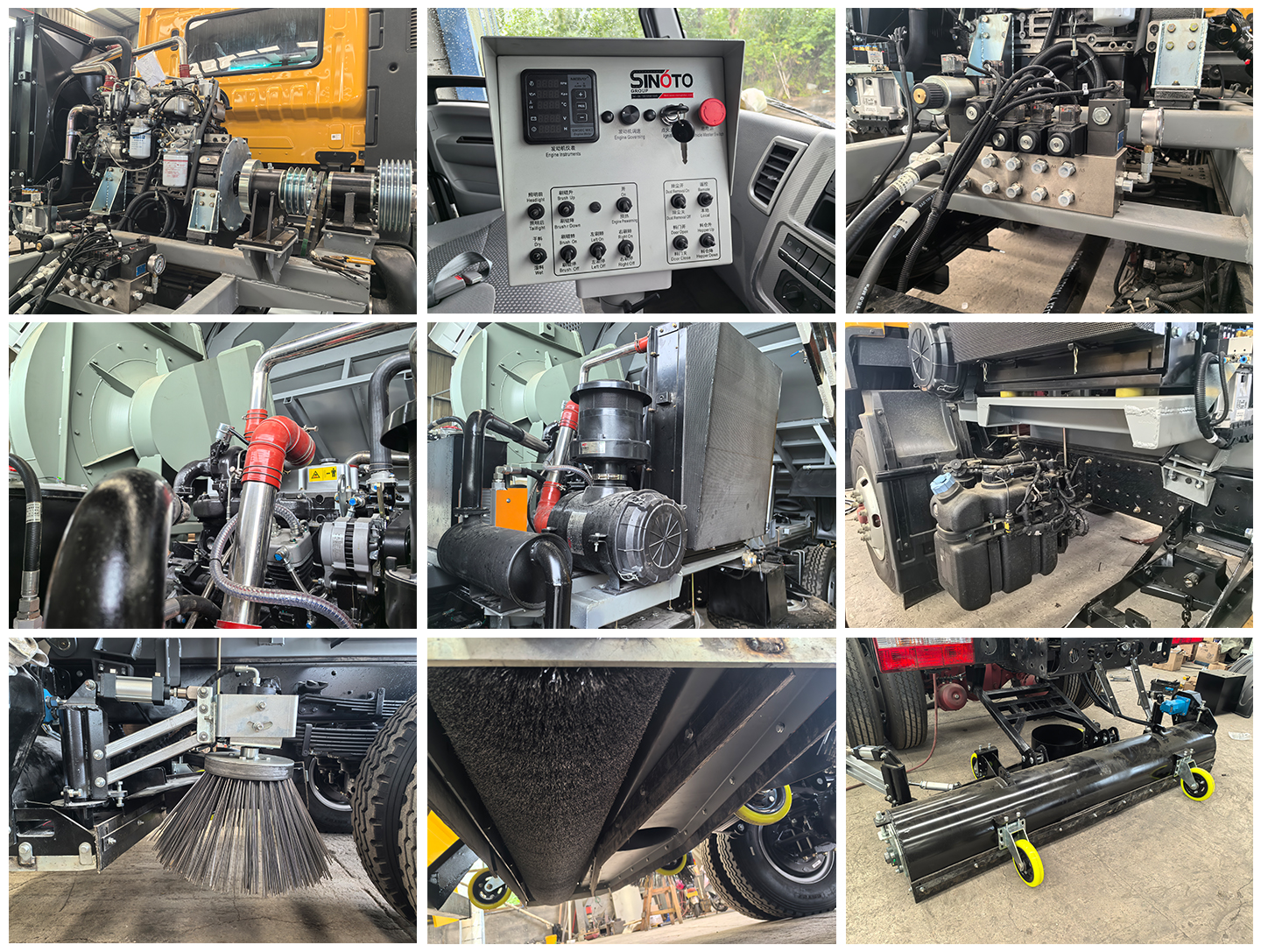

Dustless Suction Sweeper Truck.5
