Jumbo Bag Bitumen Melting Machine

Jumbo Bag Bitumen Melting Machine
Jumbo Bag Bitumen Melting Machine
Jumbo Bag Bitumen Melting Machine
Jumbo Bag Bitumen Melting MachineJumbo Bag Bitumen Melting MachineJumbo Bag Bitumen Melting Machine

Productive Capacity: 5-12tph

Qty. of Feeding Mouths: 2-5pcs

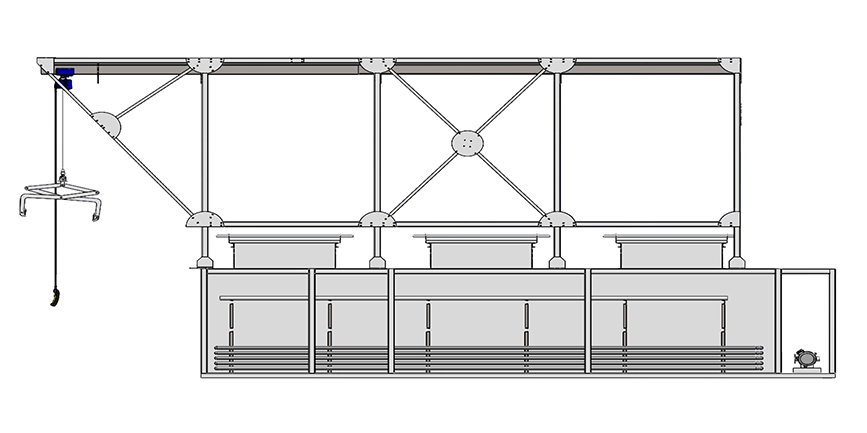

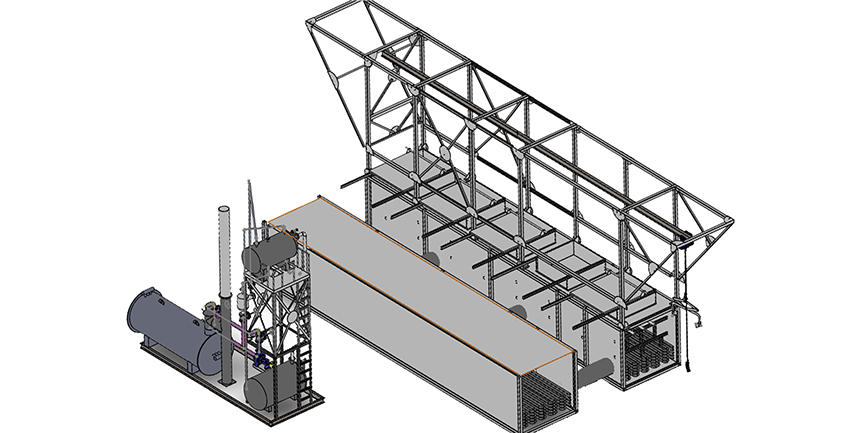

SinoTo Jumbo bag bitumen melting machine is divided into two parts, one part is the melting chamber and the other part is the hoisting structure. The melting chamber adopts a skid-mounted structure, which is convenient for transportation and relocation of construction sites. The melting chamber consists of 3-5 feeding ports and a heating chamber. The heat transfer oil pipes are arranged under the feeding port; the 4-way high-temperature smoke pipe is arranged in the heating bin to quickly heat the asphalt. Because the height of the hoisting structure is higher than the limit height of equipment transportation, it adopts an assembled structure, which is completely connected by bolts, which is convenient for transportation. The hoisting structure is mainly composed of hoisting support and a 2T electric hoist.

Send Email Get A Free Quote

Technical Parameter

Model

STBD-6

STBD -10

Productive Capacity

5-6tph

10-12tph

Max. Hosting Capacity

2000kg

2000kg with two hosts

Max. Hosting Height

3m

3m

Qty. of Feeding Mouths

3

5

Capacity of Melting Pool(m³)

32m³

80 m³(35+45)

Heating Method

Oil Burner Heating/ Thermal Oil Furnace Heating

Bitumen Pump Capacity

16.8m³/h

24m³/h

Overall Dimension(L*W*H) (Working Condition)

16000*2250*6500mm

16000*7000*6500mm

Overall Dimension(L*W*H) (Transportation Condition)

11500*2250*2450mm

11500*2250*2450mm 2pcs

Total Power

15kw

22kw

Total Weight

12000kg

20000kg

Jumbo Bag Bitumen Melting Machine FAQ

How do you achieve such high melting efficiency?
Our melter uses a dual heating system (thermal oil + flue gas recovery) to maximize heat transfer, ensuring that 1-ton jumbo bags are melted quickly and energy-efficiently.
Is there any bitumen waste or residue left in the bags?
The specialized bag suspension and residual-free discharge system ensure 100% of the bitumen is recovered, preventing material waste and saving costs.
What energy sources can be used for heating?
You can choose between external thermal oil connection or built-in diesel/gas burners. We also provide customized electric heating solutions.
How are the heavy bags loaded into the machine?
The machine includes an integrated hydraulic hoist for safe and easy loading of 1-ton bags, reducing the need for additional onsite cranes and manual handling.
Is it easy to transport to remote project sites?
Yes, the compact, skid-mounted design is optimized for standard container shipping and fast setup, making it ideal for mobile road construction projects.

Advantages

Product Advantages and Features

  • High Safety

    Employs thermal oil indirect heating, avoiding direct open flame heating and eliminating the fire and explosion risks common in traditional equipment. Equipped with automatic temperature and pressure control systems and a high-temperature alarm system. Enclosed operation reduces personnel exposure to hot asphalt and harmful gases.

  • High Thermal Efficiency

    Unique finned tube technology increases the heat exchange area to 1.5 times that of conventional thermal oil pipes. The asphalt fume recovery and hot air circulation system ensures uniform asphalt heating, reducing heat loss, saving fuel, and protecting the environment.

  • Precise Temperature Control

    A fully automatic temperature control system regulates ignition based on temperature, preventing localized overheating, aging, or carbonization of the asphalt, thus maintaining its original performance specifications.

  • High Productivity

    The equipment is insulated with high-density rock wool on all sides, providing excellent thermal insulation and energy savings. The heat conduction oil coils are divided into multiple circuits, allowing for balanced heat distribution and enhanced heat transfer efficiency based on operational requirements, thereby accelerating asphalt melting. The main tank and auxiliary tank are connected via pipelines. The main tank can operate independently, while the auxiliary tank can function separately as an asphalt storage tank. This design enables simultaneous asphalt melting and temperature elevation without interference, ultimately increasing production capacity.

  • Simple Operation

    The equipment features centralized control or a PLC control system for one-touch start-up and simple operation. Its compact structure design facilitates movement, installation, and maintenance.

Product Model

STBD-6 Jumbo Bag Bitumen Melting Equipment

Productive Capacity: 5-6tph

Max. Hosting Capacity: 2000kg

Total Power: 15kw

Main Components: Melting Chamber, Hoist, Bitumen Pump, Heating Pipelines, Bitumen Storage Chamber, Control System.

Key Words: Jumbo Bag Bitumen Melting Equipment, FIBC Bitumen Melting System, Bulk Bag Bitumen Melter, Bitumen Melting Plant for Jumbo Bags, Industrial Bitumen Melting Equipment, Bitumen Decanter, Jumbo Bag Bitumen Melter, Bitumen Melting Equipment Suppliers.

Get A Quote

STBD-10 Jumbo Bag Bitumen Melting Equipment

Productive Capacity:10-12tph

Max. Hosting Capacity: 2000kg*2

Total Power: 20kw

Main Components: Melting Chamber, Hoist, Bitumen Pump, Heating Pipelines, Bitumen Storage Chamber, Control System.

Key Words: Jumbo Bag Bitumen Melting Equipment, FIBC Bitumen Melting System, Bulk Bag Bitumen Melter, Bitumen Melting Plant for Jumbo Bags, Industrial Bitumen Melting Equipment, Bitumen Decanter, Jumbo Bag Bitumen Melter, Bitumen Melting Equipment Suppliers.

Get A Quote

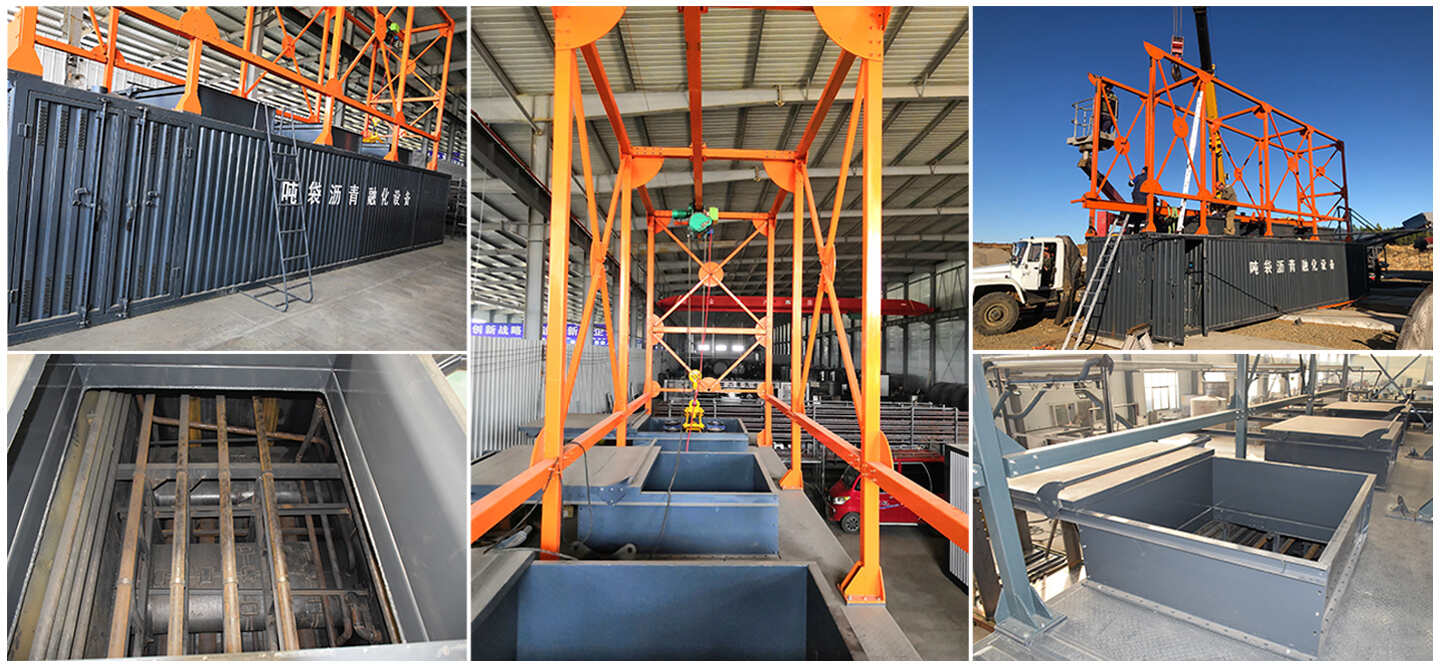

Product Details

Product Details
