Cement Spreader

Cement Spreader
Cement Spreader
Cement SpreaderCement SpreaderCement Spreader

Cement Bins Capacity: 18 m³

Max. Spreading Width: 2500mm

The cement spreader is a specialized mechanical equipment used in road construction, foundation treatment, and other engineering projects. It is primarily designed to uniformly distribute cement (or mixtures of cement with other materials) over the construction surface. It is typically used in conjunction with soil stabilizers, road rollers, and other equipment for constructing cement-stabilized layers (e.g., cement-stabilized crushed stone base courses) or soil improvement projects. It is also suitable for cold recycling of roads involving cement spreading, as well as the distribution of various powdered materials such as lime and fly ash. Widely applied in highways, railways, and municipal construction, this cement spreader is independently developed by our company with international advanced technology and proprietary intellectual property rights. After years of practical application and continuous optimization, this product series has become the ideal machinery for subgrade construction and the suitable powder material spreading equipment.

Technical Parameter

No.

Item

Unit

Parameter

Remarks

1

Model



HTN5251TFS



2

Chassis Brand



SinoTruck/ Shacman

Left driving or right driving

3

Engine Power

kW(hp)

257(350)



4

Emission Standard



Euro V



5

Min. Speed

km/h

≤1.8



6

Max. Speed

Km/h

80



7

Auxiliary Engine

kW(hp)

74



8

Emission Standard



Euro III



9

Cement Bins Capacity

18



10

Spreading Capacity

kg/ m²

0.9-60



11

Max. Spreading Width

mm

2500



12

Curb Weight

t

15



13

Total Weight

t

23



14

Overall Size

mm

9500*2500*4100

L*W*H

Main Configuration

No.

Item

Brand

Place of Origin

Remarks

1

Chassis

SinoTruck

China



2

Auxiliary

YUCHAI

China



3

Hydraulic Pump

DANFOSS

USA

Imported

4

Hydraulic Valve

DANFOSS

USA

Imported

5

Hydraulic Motor

YINING

China



6

Weighing System

ZHONGHANG

China



7

Conveyor System

SINOTO GROUP

China



8

Measuring System

SINOTO GROUP

China



9

Dust Collector

SINOTO GROUP

China



10

Lifting Cylinder

AirTac

China Taiwan



11

Pneumatic Valves

AirTac

China Taiwan



12

Hydraulic Oil Filter

LIMING

China



13

Controller

ING CONTROL

China



Technical FAQ & Support

How accurate is the spreading volume?
Our automatic cement spreader with weighing system can achieve a spreading accuracy of ±1%. By inputting the required kg/m² into the touch screen, the system manages the rest, ensuring zero material waste.
Does it provide dust protection for eco-friendly sites?
Absolutely. The dust-free cement spreader for soil stabilization is equipped with a unique bag-filter system and a low-position discharge curtain to prevent powder clouds during operation.
What is the typical tank capacity and spreading width?
Depending on the SinoTruck cement spreader machine specs, we offer tank volumes from 15m³ to 25m³. The standard spreading width is 2500mm, providing a high-capacity solution for bulk powder spreader trucks.
How do I maintain the feeding system?
Our design includes an anti-bridge vibration system and easy-access inspection hatches. We provide full technical support for all our road base construction equipment to ensure long-term durability.

Advantages

Product Advantages and Features

  • Environmentally Friendly

    The construction process is more environmentally friendly and efficient.

  • Simple Operation

    The operation is simple, and the entire construction process only requires one driver.

  • Vehicle Networking Service Platform

    It is equipped with a vehicle networking service platform and can be connected to a mobile phone. With a mobile phone in hand, the construction status is clear at a glance. The construction parameters are displayed in the driver's cabin and can be saved and recorded, and remotely transmitted.

  • Patented Technology's Arch-Breaking Device

    The patented technology of the arch-breaking device ensures that the material bin does not arch or form lumps.

  • Fully Automatic Control System

    It is fully automatic control, and the spreading amount does not change with the vehicle speed.

  • Precise Measurement System

    There is a dedicated loading port for loading materials, and materials can also be added through the manhole. The metering system does not need to be calibrated. Just input the specific construction parameters in the system.

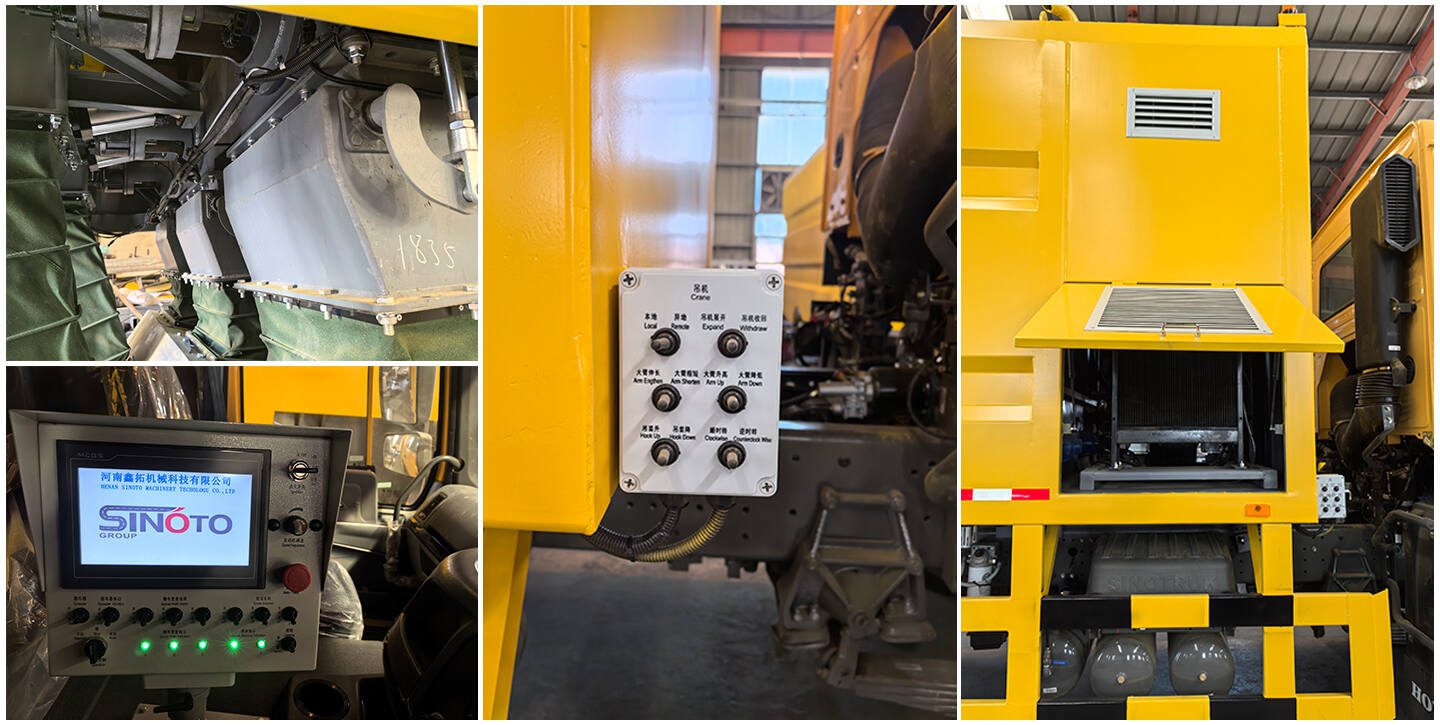

Product Details
