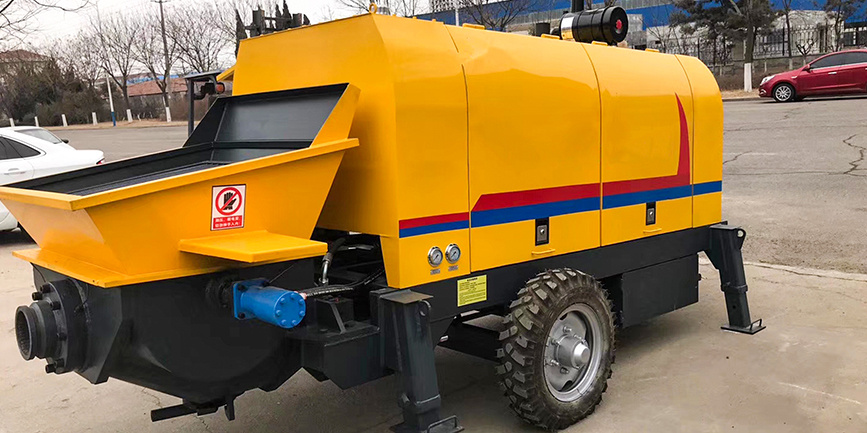

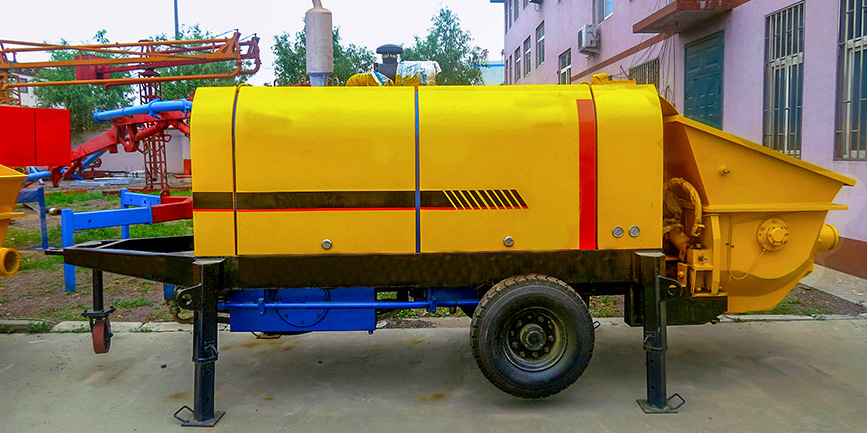

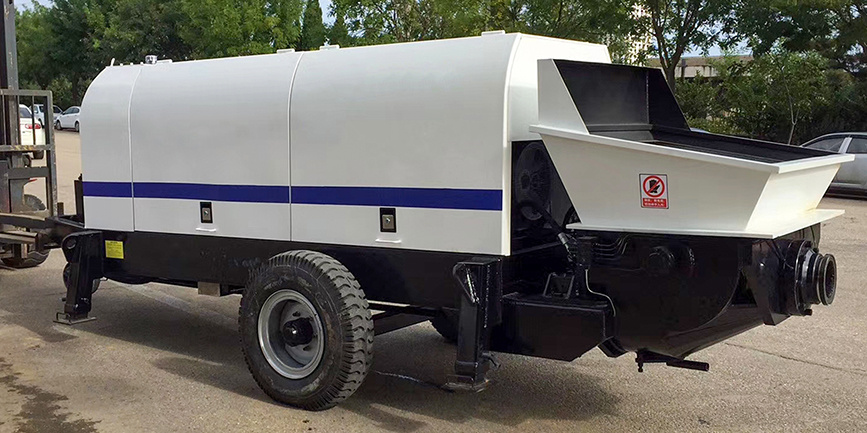

Concrete Pump

Concrete Pump
Concrete Pump
Concrete Pump
Concrete PumpConcrete PumpConcrete Pump

Max. Concrete Output: 30---90m³/h

Maximum Conveying Distance: Horizontal Distance 400---1200m Vertical Distance 140---350m

The concrete pump is equipment specifically designed for efficiently transporting concrete. It lacks its own power source and needs to be towed by a truck or trailer to move. Upon arrival at the construction site, it continuously pumps concrete to the designated pouring point through externally connected pipelines. As a critical device connecting concrete mixer trucks to the final pouring site, it significantly enhances the efficiency and scope of concrete construction. Its core working principle involves a hydraulically driven two-cylinder reciprocating operation, which includes the following processes: suction, pushing, alternating cycles, and pipeline transportation. SinoTo concrete pumps are mainly divided into two types: diesel-powered concrete trailer pumps and electric concrete trailer pumps. You can choose the appropriate type based on your construction requirements.

Send Email Get A Free Quote

Diesel Engine Type Technical Parameter

Item

STCD30-10-56R

STCD40-10-66R

STCD60-12-82R

STCD80-16-129R

Hydraulic Pump

Rexroth

Kawasaki

Displacement Of the Main Oil Pump(ml/r)

71

112

112

112×2

Max. Concrete Output(m³/h)

30

40/30

60/36

85/50

Diesel Engine

DELIER41

DELIER66

Deutz 82

Deutz 129

Main Oil Pump Cylinder Diameter/Stroke (mm)

Φ80/845

Φ100/1200

Φ110/1300

Φ140/1800

Concrete Cylinder Diameter/Stroke（mm）

Φ140/845

Φ180/1200

Φ180/1300

Φ200/1800

Electronic Control System

Schneider

PLC Unit

Omron

Intermediate Relay

Omron

Remote Control

Wireless Remote

Hydraulic Valve Sets

HUADE

Maximum Conveying Distance (Horizontal/Vertical)(m)

400/160

600/180

600/180

1200/350

Outlet Diameter(mm)

Φ100

Φ150

Φ150

Φ180

Pipelines(m)

100mΦ80

100m Φ125

150mΦ125

150mΦ125

Overall Size(L*W*H)

4500*1750*1600

5000*1850*1700

5000*2000*1750

6300*2100*2350

Total Weight(kg)

3500

4500

6500

6900

Motor Type Technical Parameter

Item

STCE30D

STCE40-13-55

STCE60-13-90

STCE80-16-110

Hydraulic Pump

Kawasaki

Displacement of the Main Oil Pump(ml/r)

112

112

112×2

140×2

Max. Concrete Output(m³/h)

30

40

60

80

Motor Power

37

55

90

110

Main Oil Pump Cylinder Diameter/Stroke (mm)

Φ80/845

Φ100/1100

Φ125/1650

Φ140/1800

Concrete Cylinder Diameter/Stroke(mm)

Φ140/845

Φ160/1100

Φ200/1650

Φ200/1800

Electronic Control System

Schneider

PLC Unit

Omron

Intermediate Relay

Omron

Remote Control

Wireless Remote

Hydraulic Valve Sets

HUADE

Maximum Conveying Distance (Horizontal/Vertical)(m)

400/140

600/220

800/180

1000/250

Outlet Diameter(mm)

Φ100

Φ125

Φ180

Φ180

Pipelines(m)

120mΦ80 /100mΦ100

120mΦ80 /100mΦ125

150m Φ125

150mΦ125

Overall Size(mm)

4200*1520*1750

5000*1850*1700

6160*1860*1920

6710*2100*2126

Total Weight(kg)

3500

4500

6000

6500

Technical FAQ & Support

How do I choose the right boom length?
Selection depends on your project's maximum vertical and horizontal reach. For urban residential projects, a 37m or 47m boom pump is popular, while 50m+ pumps are ideal for mega-infrastructure.
Is the pumping pressure adjustable?
Yes, our high pressure concrete pumps feature variable displacement control, allowing operators to adjust the flow and pressure according to the concrete grade and delivery distance.

Advantages

Product Advantages and Features

  • High Conveying Efficiency and Wide Range

    Long Horizontal Distance: Single-stage pumping can reach hundreds of meters or even over a kilometer. High Vertical Reach: Capable of effortlessly pumping to high-rise buildings over a hundred meters tall. Obstacle Overcoming: Directly delivers concrete to the worksite, overcoming obstacles.

  • Low Construction Costs

    Saves significant labor and time costs by avoiding traditional low-speed, inefficient transfer methods such as tower cranes and handcarts.

  • Ensures Concrete Quality

    The continuous and rapid pumping process reduces the risk of concrete initial setting or segregation due to prolonged standing, ensuring the overall quality of the cast structure.

  • Strong Adaptability

    Suitable for various complex construction environments, such as high-rise buildings, bridges, tunnels, hydropower projects, and foundation engineering. The diesel engine-powered version enables operation in remote areas with limited electricity supply.

  • Environmentally Friendly

    Reduces the influx of numerous transport vehicles and equipment within the construction site, resulting in a tidier workspace. Significantly lowers noise and dust pollution, contributing to a more sustainable operation.

Product Model

STCD40 Concrete Pump

Max. Concrete Output: 40m3/h

Maximum Conveying Distance (Horizontal/Vertical): 600m/180m

Main Components: Pumping System, Hydraulic System, Hopper, S-Valve, Delivery Pipeline, Power System, Control System.

Key Words: Concrete Trailer Pump, Trailer Mounted Concrete Pump, Concrete Ground Pump, Buy Concrete Trailer Pump, Concrete Trailer Pump For Sale, Concrete Trailer Pump Price, Trailer Concrete Pump Supplier, Diesel Concrete Trailer Pump, Electric Concrete Trailer Pump.

Get A Quote

STCD60 Concrete Pump

Max. Concrete Output: 60m3/h

Maximum Conveying Distance (Horizontal/Vertical): 600m/180m

Main Components: Pumping System, Hydraulic System, Hopper, S-Valve, Delivery Pipeline, Power System, Control System.

Key Words: Concrete Trailer Pump, Trailer Mounted Concrete Pump, Concrete Ground Pump, Buy Concrete Trailer Pump, Concrete Trailer Pump For Sale, Concrete Trailer Pump Price, Trailer Concrete Pump Supplier, Diesel Concrete Trailer Pump, Electric Concrete Trailer Pump.

Get A Quote

STCD80 Concrete Pump

Max. Concrete Output: 80m3/h

Maximum Conveying Distance (Horizontal/Vertical): 1200m/350m

Main Components: Pumping System, Hydraulic System, Hopper, S-Valve, Delivery Pipeline, Power System, Control System.

Key Words: Concrete Trailer Pump, Trailer Mounted Concrete Pump, Concrete Ground Pump, Buy Concrete Trailer Pump, Concrete Trailer Pump For Sale, Concrete Trailer Pump Price, Trailer Concrete Pump Supplier, Diesel Concrete Trailer Pump, Electric Concrete Trailer Pump.

Get A Quote

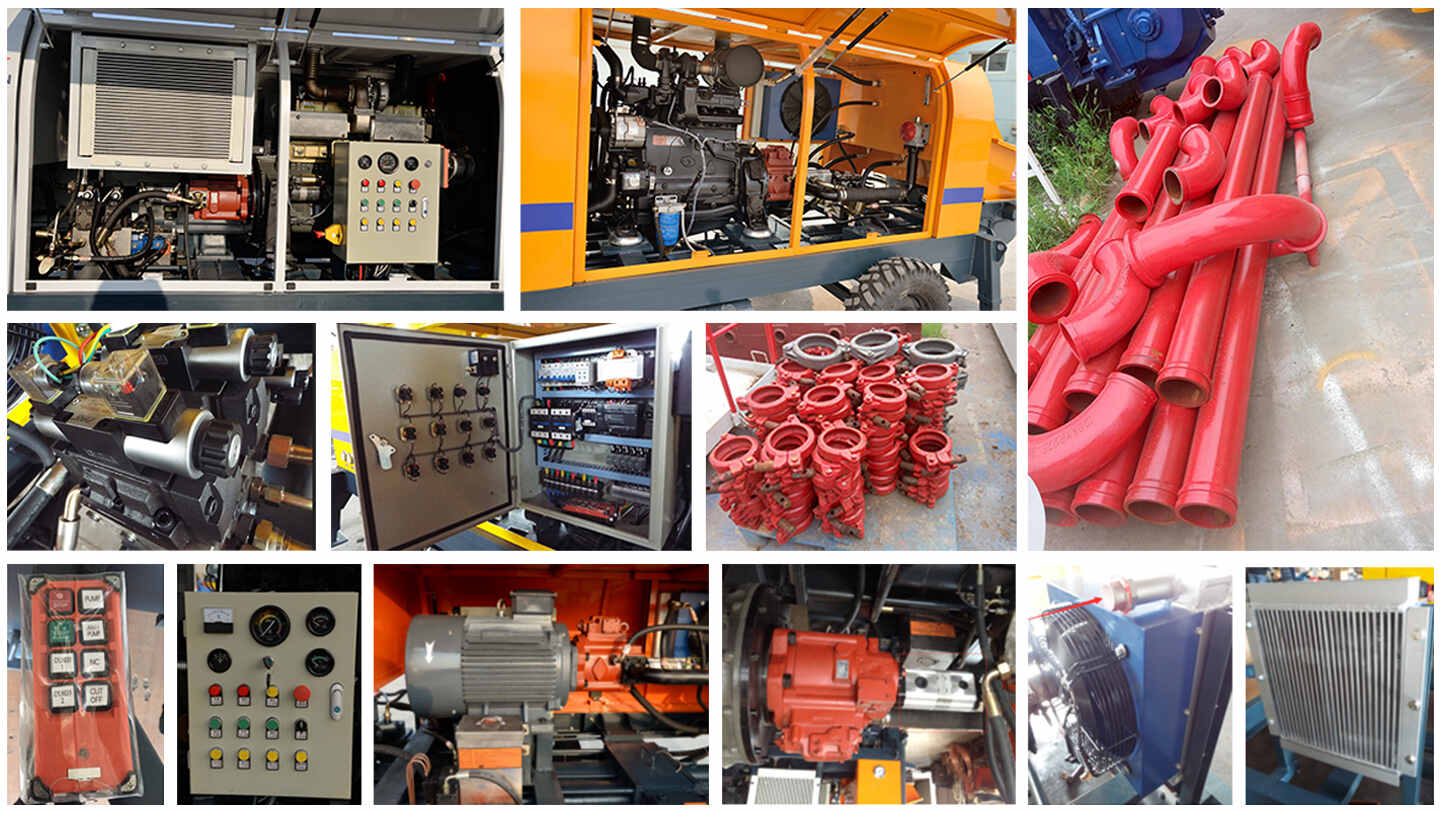

Product Details
