Bitumen and Bitumen Emulsion : What’s the Key Difference in Paving?

Are you missing out on the most efficient and eco-friendly paving solutions? The choice between traditional bitumen and modern bitumen emulsion is critical for the longevity and sustainability of your infrastructure projects. Discover the key differences, and see how advanced equipment like a reliable bitumen distributor and a high-efficiency emulsion bitumen plant are revolutionizing road maintenance and construction globally. Click to find out which binder is the right fit for your next project and how to optimize your operations!

Knowledge of Bitumen and Bitumen Emulsion

The quality of the binder is the key to the pavement durability and life in the context of infrastructural work and road building. Bitumen (also referred to as asphalt cement) has been the binding substance that the industry has been utilizing over the decades. Nevertheless, there is a more recent, and fast gaining popularity, substitute-bitumen emulsion. The key difference between the two materials is something that engineers, contractors and decision-makers should be aware of to improve efficiency, cut costs, and meet the increasing environmental requirements. The main question resulting in this development of industries is: What is the difference between bitumen and bitumen emulsion? The solution is in how they are composed, how they are used, their environmental impact, and finally, their aptitude in other paving activities.

1. The Foundation: Pure Bitumen

In pure state, bitumen is a dark sticky and very viscous hydrocarbon, which is a product of fractional distillation of crude petroleum. It is a semi-solid substance at room temperature.

1. Composition:principally 100 per cent. bitumen. Application Method: Bitumen is very thick and therefore requires a lot of heating, in order to be liquid enough to be sprayed or mixed with aggregates or be sprayed evenly.
2. Key Benefit:It is superior with long-term durability and strength in the use of high-traffic, heavy-duty road construction in hot mix asphalt (HMA).
3. Problems:The high temperatures needed to make them are energy-intensive, create intrinsic safety issues to those working on it, and lead to increased fumes. The necessity to use the exact, prolonged heat complicates its usage in isolated places or less extensive maintenance.

2. The Innovation: Bitumen Emulsion

Bitumen emulsion is a complex form of liquefied bitumen that makes use of water as a medium. It is an oinwatersystem, i.e. a suspension of minute particles of bitumen in a continuous mass of water, kept stable by a chemical emulsifying agent (surfactant).

1. Composition:It usually consists of 55-70 percent of bitumen, 30-45 percent of water and less than 1 percent of emulsifier. The emulsifier will stop the separation of the bitumen and the water to form a stable and homogenous liquid.
2. Application Method:This difference is the most important one. Bitumen emulsion is to be used in cold or much lower temperatures (usually below 60-140 F). Once used, the water evaporates or breaks off leaving the pure bitumen to fix the aggregates or cover the surface.
3. Key Advantages:
4. Environmental & Safety:Does not require intense heating, which greatly lowers the expenses of energy, reduces the risk of fire, and lessens the emission of volatile organic compounds (VOCs), as well as harmful fumes.
5. Versatility:It can be applied to cold and to a small extent of damp aggregates hence it suits well in road maintenance, surface dressing, tack coats and prime coats.
6. Ease of Use:It is a liquid with low viscosity, thus it is significantly easier to store, transport and apply without any specialized heating tools.

With Innovative equipment, Application optimization is optimized

The transition to bitumen emulsion has generated a concomitant need of equipment, high-performance and specialized. The maximum benefits of the cold-applied binder should be met by efficient application and quality production.

1. The Position of the Bitumen Distributor

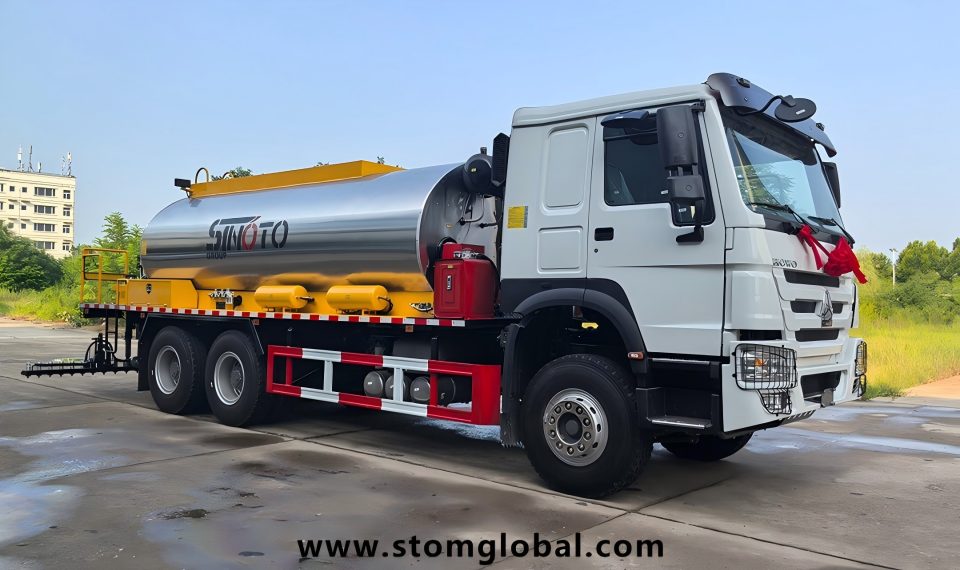

In pure and emulsified bitumen, it is important that the application to the road surface should be accurate and uniform. In this case, the bitumen distributor comes in handy. A bitumen distributor truck of high specifications is designed to:

(1)Maintain Temperature: In the hot bitumen, it maintains the material at the working temperature. In the case of emulsions, it maintains uniformity of quality of materials.

(2)Uniform Spray: It is an elaborate spray bar system that uses to spray the bitumen or emulsion at an accurate and controlled rate (liter per square meter). The accuracy is essential to the effectiveness of surface treatments such as chip seals and when applying an ideal tack coat, which ensures great adhesion between the layers of pavements.

(3)Improve Productivity: The controls are highly computerized, and the models of the modern bitumen distributors prevent the operator to remotely control and adjust the flow rate to guarantee consistency and reduce wastage over the entire paving field.

2. The More Than a Minute: The Emulsion Bitumen Plant

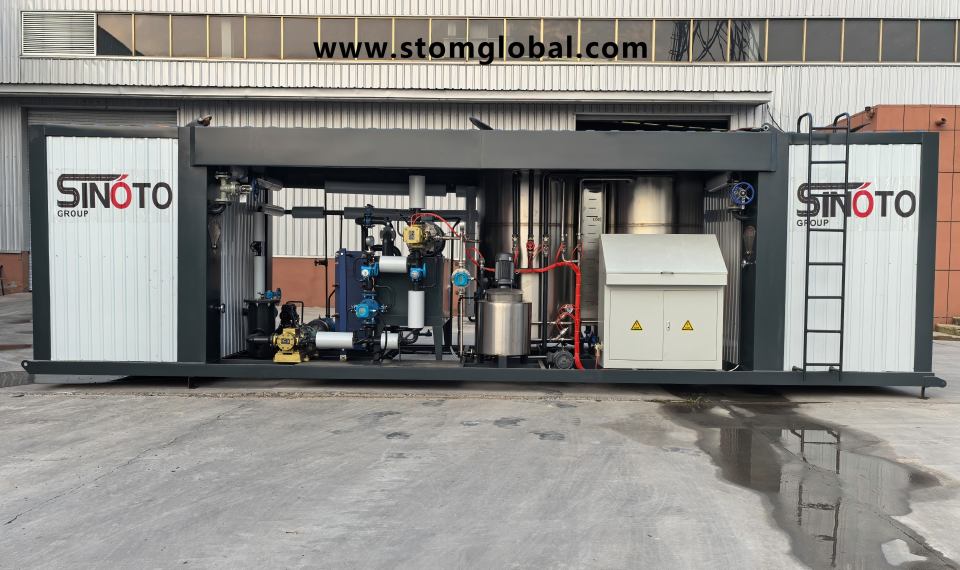

The manufacturing process determines the quality of the emulsion and the stability of the bitumen emulsion. High-grade, customized binders are the most important factors to be achieved by a state-of-another emulsion bitumen plant.

(1)Precise Mixing: A high-shear colloid mill is usually at the core of the plant, and it disperses the molten bitumen into incredibly fine droplets in the water phase.

(2)Chemical Control: The plant precisely measures and combines the emulsifying agent that is important in the electrical charge (cationic or anionic) and the rate of setting (rapid, medium or slow) of the emulsion. These characteristics determine how compatible the various forms of aggregates are and what applications they are.

(3) Versatility and Customization: A current emulsion bitumen plant enables the producer to use a single plant to produce a wide variety of emulsion grades to satisfy the needs of cold-mix asphalt, seal coat and the maintenance market. The key to strategic investment of any company in its quest to become the best in sustainable and cost effective road materials is investment in a reliable plant.

Conclusion: Paving a Greener, More Efficient Future

Although pure bitumen is the starting material used in large scale and hot-mix projects that have the highest structural strength requirement, the use of bitumen emulsion is undoubtedly the solution to a wide range of maintenance, repairs and cold-mix solutions.

Knowing the difference between bitumen and bitumen emulsion and investing in the required equipment offered by SINOTO, companies may lead the march of the infrastructure industry and provide stable, economical, and sustainable roads in the future.

Do you want a more specific comparison of the various grades of bitumen emulsion (Rapid Set, Medium Set, Slow Set) and what their standard applications are, to better understand what you are needing as a material?
