This article provides an in-depth analysis of bitumen pressure distributor capacities, ranging from small-scale maintenance units to high-volume industrial tankers. It explains how capacity influences project efficiency and introduces the SINOTO Asphalt Distributor as the industry-leading solution for precision spraying and optimized liquid asphalt logistics.
The most important equipment in the world of road construction and pavement maintenance is the Bitumen Pressure Distributor (also known by short as asphalt distributor) which is necessary in surface dressing, tack coating and prime coating. The most common query by fleet managers and contractors is: What is the capacity of a bitumen pressure distributor, and how it determines project ROI?
Capacity is not only a measure of volume, but also a calculation of efficiency, range and thermal stability.
Distributors of bitumen fall into three main groups depending on the quantity of their tank:
(1) Small Capacity (2,000 to 4,000 Liters): These are usually attached to a light duty truck, or a trailer. They are tailored to patchwork or maintenance of rural roads, or urban work with limited space where maneuvre takes precedence over sheer volume.
(2) Middle Capacity (5,000 to 8,000 Liters): It is the workhorse range of most regional contractors. These distributors are best suited to midsized road construction projects and municipal upgrades as it has a balance between agility and the surface area covered before a refill is required.
(3) Large Capacity (10000 to 18000+ Liters): These large tankers are used in heavy-duty highway construction and runways of airports and they are mounted on multi-axle heavy trucks. They are designed to spray kilometers of road during one run, reducing the downtime spent on returning to a bitumen depot.
Selecting the appropriate capacity does not simply require selecting the biggest tank. Contractors must consider:
(1) Spray Width and Spray Rate: A longer spray bar (e.g. 6 meters) and a high rate of spray will empty a 5,000-liter tank in a fraction of the time that a typical maintenance spray can.
（2) Bitumen Plant Distance: When your project site is located 50 kilometers away, a greater capacity distributor (such as 12,000-liter capacity) is necessary so that the number of trips would be minimized, and the cost of fuel would be lowered.
（3) Chassis Payload: The chassis has a fixed capacity which is determined by the Gross Vehicle Weight Rating (GVWR) of the truck chassis. A significant safety hazard is to overload a tank more than the chassis can hold.
At SINOTO, we realize that controlled capacity is nothing but wastage of resources. The selection of distributors of our asphalt is designed to achieve the greatest volume efficiency and the highest quality of spray at the same time.

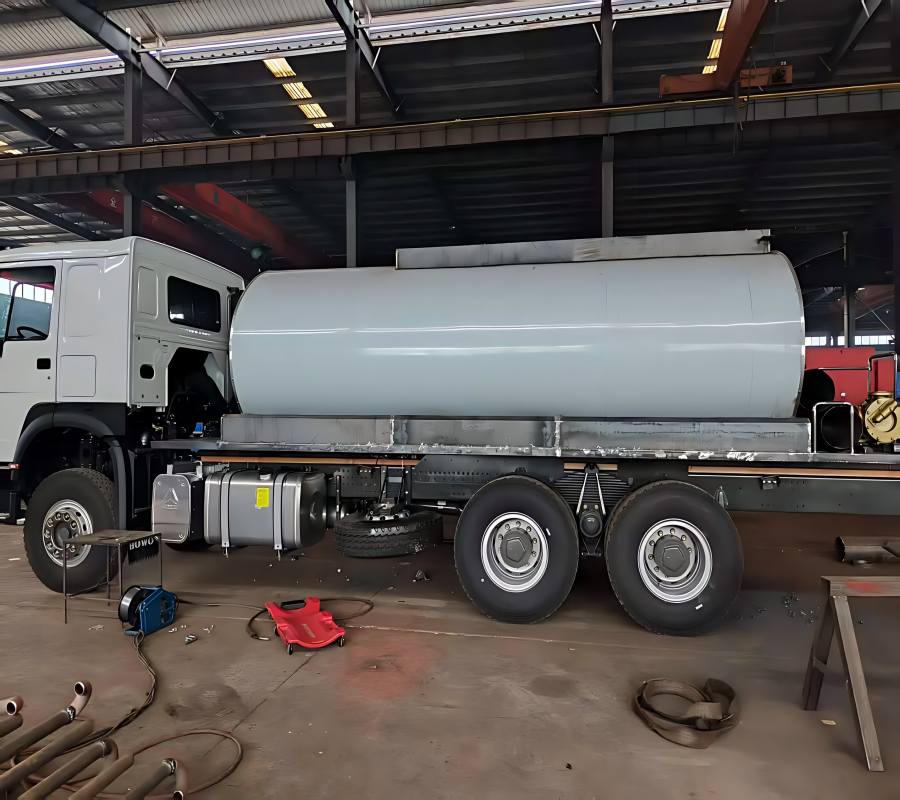

The SINOTO tank is not a container but a well insulated thermal vessel. We offer tanks with a capacity of 6,000 to 14,000 liters, which will enable us to cater to mid-sized contractors, as well as major infrastructure companies.
Thermal Insulation: All SINOTO tanks are lined with high-density rock wool and a stainless steel covered outer shell. This will guarantee that despite the large capacity of the distributor used, the bitumen does not lose more than 1 C -2 C/h, making the material remain at the optimal spraying temperature.

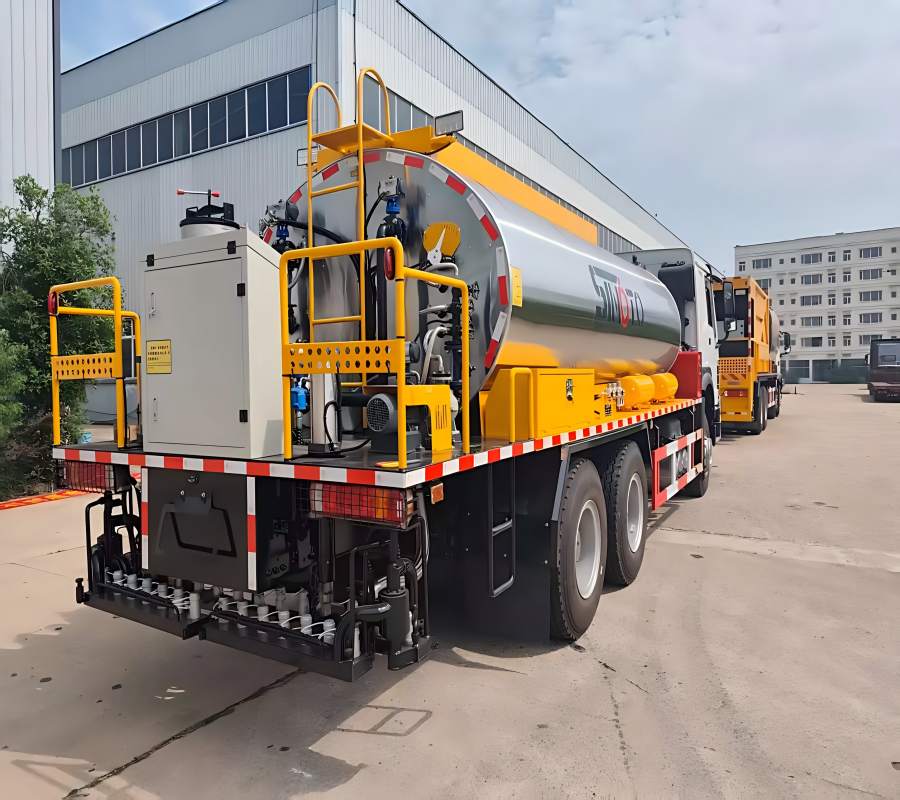

Our intelligent spraying system is the real worth of a SINOTO distributor. With our PLC-controlled system, regardless of the speed of the truck, the rate of application (kg/m 2 ) will be the same whether you are using a 6000 liter tank or a 12000 liter tank.
Triple-Overlap Spraying: Because our precision nozzles are so designed, when the tank is empty, and the weight of the truck varies, the pressure is constant, and this gives an ideal, uniform finish on the entire road surface.
In the case of our clients in Central Asia, Southeast Asia and Africa, we have streamlined our distributor capacities to conform to the local road types and availability of chassis. To illustrate this, our 8,000-liter and 10,000-liter models are uniquely tailored to the highly demanding nature of long-haul road construction projects where refueling stations are not as frequent.
Speaking about the capacity, one should mention the so-called usable capacity and the total volume. To allow the expansion of hot bitumen, and to prevent foaming, industrial distributors will need a certain level of ullage or air space at the top of the tank (typically 5-10%).
SINOTO Asphalt Distributors have a superior design of anti-foaming tanks and bottom filling valves which enable you to obtain to the full capacity of the tanks safely. This will result in the presence of increased bitumen on the road and a reduced amount of air in the tank.
Being a major producer and exporter of heavy road machinery, SINOTO does not only supply a machine; we offer a complete logistic service.
A bitumen pressure distributor capacity is a cornerstone of productivity of your construction fleet. A 2,000 liter unit can fit in a city street, but a 10,000 liter SINOTO asphalt distributor is the key to winning highway contracts.
You are investing in a machine that has a high volume capacity and microscopic precision by investing in SINOTO. Our distributors make sure that all drops of bitumen are put to good use and waste is saved, time is saved and roads are constructed that will stand the test of time.
Get in touch with SINOTO today to receive a technical consultation. Our engineers will assist you in choosing the best capacity and chassis structure to match the regional needs. Construct more, construct more quickly and construct more optimally with SINOTO.
