In road construction and waterproofing business, the profitability is based on the efficient processing of solid bitumen. The solution to the problem is the SINOTO Jumbo Bag Bitumen Melting Machine (FIBC Decanter). Modify your operation to achieve high output rates, reduced fuel consumption, and high quality of asphalt so that project deadlines are not compromised.
Bitumen (asphalt) is the foundation of modern infrastructure, and is usually carried or stored in hard or semi-solid form, commonly in steel drums or, more recently, in flexible intermediate bulk containers (FIBCs) or jumbo bags or ton bags.
Conventional drums-only bitumen melting apparatus is afflicted by inefficiencies:
Low Throughput: Drum heating is also slow due to a small contact area and the requirement to load and unload manually, which is limiting to production capacity greatly.
Low Labor and Risk: The use of heavy drums involves a lot of manual labor that increases the costs of operation and exposes users to severe safety hazards, such as burns, lifting pains, and toxic emissions.
Environmental Degradation: Direct heating causes overheating of the local areas, which result in excessive smoke and fumes and the formation of bitumen coking (carbonization), which is inefficient and toxic to the environment.
Quality Compromise: A lack of consistency or excessive aggressiveness in heating may lead to the premature aging of the bitumen, which will lead to a reduction in its structural properties and consequently result in the loss of quality in the finished asphalt mix.
A new machine that will change the way things have always been in asphalt processing technology is the Jumbo Bag Bitumen Melting Machine, which comes in various models including the STBD-6 (5-6 TPH) model as well as the high-capacity STBD-10 (10-12 TPH). It is specifically designed to cope with the high volumes and special logistic benefits of bitumen loaded into jumbo bags (FIBS), as well as be compatible with ordinary drums, a feature that is unmatched in versatility.

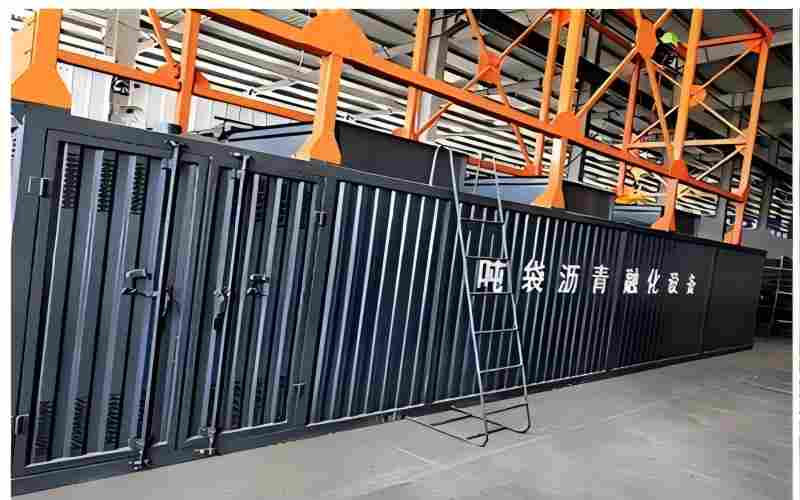

This area contains the heating equipment, feeding/inlet ports and the primary / auxiliary melting pools. It is skid-mounted to ensure that it can be transported and deployed at various construction locations in a short time.

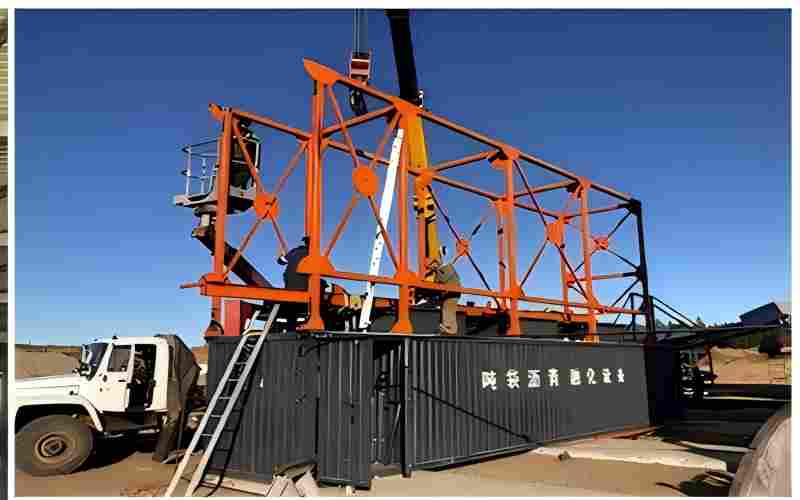

The hoisting support is designed to conquer the height of transportation (the hoist is a powerful 2-ton electric hoist, or two hoists in the case of the STBD-10 model). Bolt connections assists with quick assembly and disassembly so that bulk bags can be safely and effectively loaded into the feeding ports.
The design reduces the need to set up the equipment and optimizes the use of equipment and this makes the machine suitable to both permanent asphalt plants and temporary road construction projects.
The SINOTO machine has a powerful thermal oil heating system contrary to systems that utilize direct flame. Hot thermal oil is pumped in a well designed coil system where the heat gets transferred indirectly to the bitumen. This will remove the possibility of direct direct flame contact with the asphalt, which significantly increases the safety factor as well as the localized overheating.
In order to provide quick, full melting, SINOTO applies fast melting technology of unique finned tube in the heating chamber. The special pipe design multiplies the heat exchange area up to 1.5 times of the normal thermal oil pipes. This will lead to an increased speed in the heat transfer process, and the machine can have a maximum productive capacity of up to 12 TPH.
The coils of heat- conduction oil are separated into several independent circuits. The intelligent design ensures even distribution of heat within the melting pool and also allows operators to control the intensity of the heat to meet the needs of operations. This makes sure that the bitumen is heated on all sides evenly thus there are no cold areas.
The primary melting process is concentrated on the main tank. The auxiliary tank serves as a buffer and a temperature raising storage tank. This division enables the concurrent maintenance of the following processes: melting new bitumen in the main tank with simultaneous maintenance and increase in temperature of completed liquid bitumen in the auxiliary tank. The continuous flow design avoids any interruption in the supply and this hugely improves the overall production efficiency and this is equivalent with the high requirements of current asphalt mixing plants.
The whole equipment edifice is lined with rock wool of high density. This high thermal insulation will help reduce the amount of heat that is lost and the thermal energy generated is efficiently transferred to bitumen. The outcome consists of a great sparing of fuel and maintained high temperatures in the melting pool even when operating at high throughput.
The use of indirect thermal oil heating eliminates the main risk of the conventional bitumen melting, direct open-flame heating which is associated with fire and explosion.
Enclosed Operation: This is done through a sealed chamber whereby the personnel are highly reduced in terms of being exposed to hot asphalt and also contact with the toxic and high-temperature gases is minimized.
Automated Control Systems: The machine will have auto temperature control, auto pressure control, and a high-temperature alarm that will ensure that operating parameters are not exceeded at any point.
The system has a new asphalt recovery system of fume and hot air circulation. This is a closed loop system that collects the fumes of asphalt and then relies on the hot air circulating to aid in the homogenous warming of bitumen. It is less consumptive of fuel and saves a lot of thermal energy, which lowers the emission of pollutants.
The fully automatic temperature control system is an integrated system that maintains the integrity of the bitumen. It controls the ignition of the burner on the actual temperature measurements. Through this careful regulation is hampered:
Localized Overheating: This hastens the speed of bitumen aging and hardening.
Carbonization (Coking): The creation of unwanted, energy heavy residue at the base of the tank.
The process of keeping the bitumen at optimal temperature retains the material with its much needed viscoelastic characteristics, thus guaranteeing the longevity and durability of the end product, the pavement or waterproofing material.
The SINOTO Jumbo Bag Bitumen Melting Machine is more than just a piece of equipment; it is a comprehensive solution engineered to address the most critical pain points in modern asphalt production. By eliminating the inefficiencies and hazards of traditional methods, the Decanter allows asphalt producers and road construction companies to optimize their workflow, significantly lower their operating costs, and confidently meet the growing demands of infrastructure development worldwide.
Invest in the future of asphalt processing. Contact us today to optimize your production and secure your competitive advantage.
