Guide to Operating and Maintaining Emulsion Bitumen Plant: A 2026 Perspective by SINOTO

Unlock 2026 road project excellence with SINOTO. This guide reveals secrets to emulsion bitumen plant mastery: high-shear milling, precise chemical dosing, and proactive maintenance. Maximize uptime, ensure consistent quality, and cut long-term costs. Essential insights for managers and engineers.

Part 1: Learning the Fundamental Elements

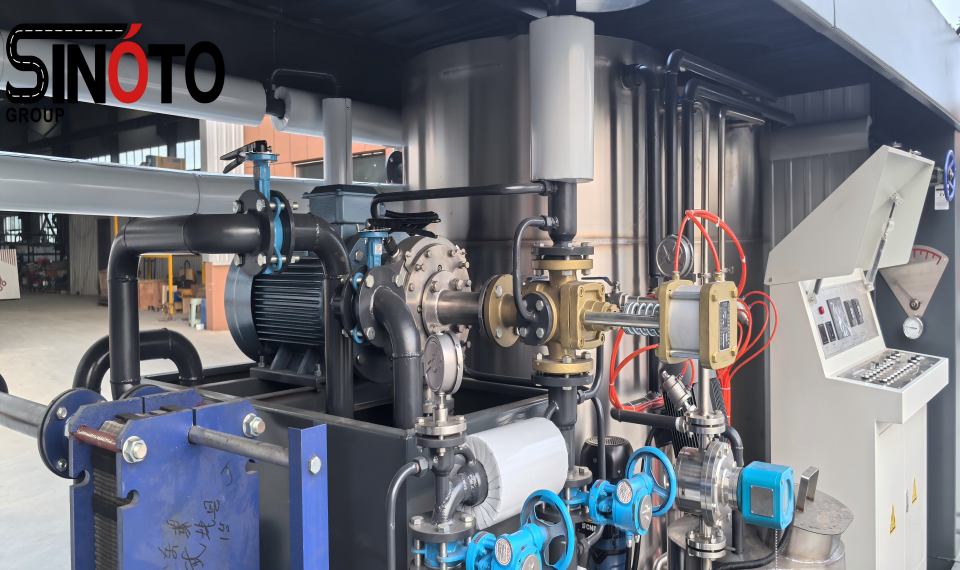

Here, it is important to know the heart of your SINOTO plant before it goes into operation. A typical high-efficiency plant will have:

Colloid Mill: The engine which uses a high-shear to reduce bitumen into micron-size bubbles.

Soap Preparation System: Tanks and mixers whereby water, emulsifiers, and acids are mixed.

Heat Exchanger: This is essential in controlling the temperature of the completed emulsion.

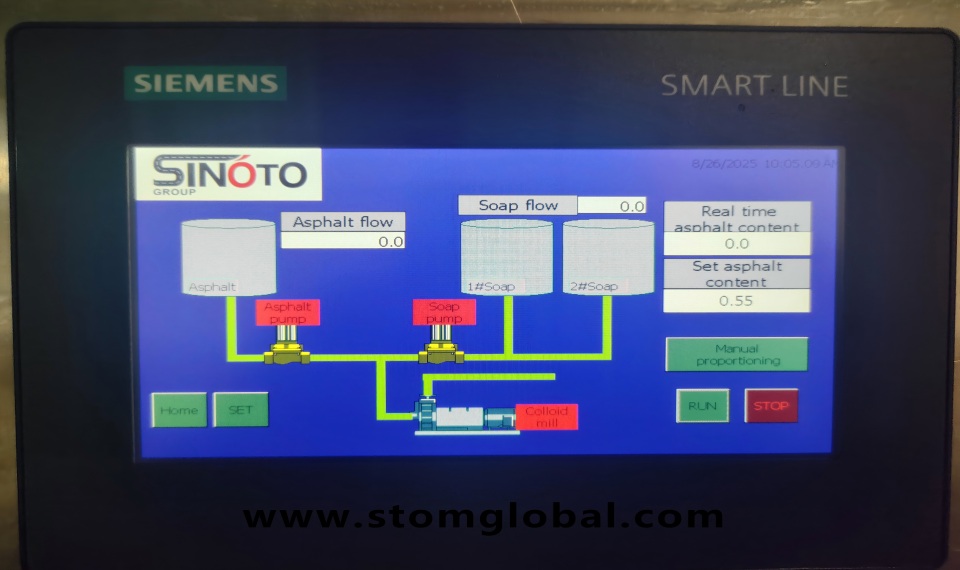

PLC Control System: This is the brain that controls the flow rates and ratios.

Part 2. Professional Operating Procedures

Pre-Start Inspection

By 2026, much of manual labor is eliminated by automation but the human walk-around is necessary.

Check the Seals: always make sure that the mechanical seals of the colloid mill are lubricated and that they are not leaking.

Thermal Oil Temperature: See that the temperature of the bitumen heating system is not too high (130degC to 140degC) to cause clogging.

Alignment of the Valves: The lines of soap, bitumen, and additives must be properly routed.

The Calibration Phase

The SINOTO equipment is characterized by precision. Check the mass flow meters prior to commencing a complete production run. Any change by 1 percent in the proportion of bitumen to water may lead to unstable emulsion which collapses too early.

Startup and Milling

Set up the flow of water/soap then to warm up the mill and avoid freezing of the bitumen in the high-shear zone. Slowly inject the flow of bitumen. Measure amperage of the mill motor; sharp increase of the amperage value indicates that the bitumen is too cold or the gap between the shears is too narrow.

Section 3: Optimization of 2026 Standards

The 2026 efficiency is evaluated based on the reduction in energy consumption and material waste.

Variable Frequency Drives (VFDs): The SINOTO plants make use of VFDs to synchronize the speeds of the motors to the production requirements. Tune these so that they will not distort harmoniously.

Precision Dosing: Control the pH levels with the SINOTO automated dosing system. Cationic emulsions require a pH of $2.0-5.0 to be maintained to improve chemical stability.

Section 4: Strategy of Complete Maintenance

Properly maintained SINOTO plant may be provided decades. We suggest a three-level method of maintenance.

Maintenance at the Day (The Operator Duty)

1. Flush the System:Flush the colloid mill and pipes with hot water or with special cleaning agents at the end of each shift. Bitumen must not be left overnight in the mill.
2. Track Gauges:Keep a record of pressure and temperature. Early indicator of wear in the pump occurs when there is any deviation of the norm.

Monthly Maintenance (The Duty of the Technician)

1. Cleaning of filters:Clean up all filters of bitumen and soap. The most common cause of mill damage is debris.
2. Belt Tension: Inspect the drive belts of the mill and the pumps.
3. Lubrication:Coat all bearings with lubricants that are high temperature resistant as given in the SINOTO manual.

Annual Inspection (The Engineer Duty)

1. Mill Rotor/Stator Check:The rotor and stator gap are checked in microns. In case of pitting or wear on the faces, change the surfaces to ensure the quality of emulsions.
2. PLC Software Updates: In 2026, SINOTO provides remote updates in diagnostic. Make sure that your software has the most up to date fuel optimization algorithms.

Section 5: Troubleshooting Common Issues

Section 6: Why Select SINOTO to 2026 Projects?

With Smart-Flow Technology, SINOTO is on the path to the 2026 construction season. Our plants are set up to work with the so-called difficult bitumen, such as polymer-modified bitumen (PMB) emulsions which are starting to become the standard of the high traffic highways.

When you purchase SINOTO, you are not necessarily purchasing equipment but you are also purchasing a partner that is concerned about your success in operation.

An emulsion bitumen plant is a combination of science and mechanical discipline to operate it. Adhering to such operational guidelines and keeping yourself on track of your maintenance schedule, you make sure that the best of materials are at your side in your road construction projects.

With ever-evolving advancement in technology to 2026, SINOTO is still determined to offer the training and equipment that will ensure that the roads of the world continue to operate.
