Are you looking to maximize the efficiency of your asphalt production? This comprehensive guide explores the professional operation and essential maintenance protocols for the SINOTO barrels bitumen melting machine. From ensuring seamless heat transfer to preventing carbonization, we provide actionable insights that help fleet managers and operators reduce downtime and ensure a consistent, high-quality bitumen supply for every paving project.
During my work experience with the road construction industry, in association with engineers and site managers, there was one bottleneck that presented itself repeatedly; that is the supply of bitumen. When you are unable to melt your barrels as quickly as you would like, you have an asphalt mixing plant lying idle. And that is where the SINOTO Barrels Bitumen Melting Machine will be a game-changer.
This machine is unique and custom-built to be used in the projects where the drum of bitumen is supplied and is used to connect a raw material and a completed highway. I would like to show you the owner’s manual- the professional steps and maintenance habits that I have learned in order to make sure that this machine is running at its finest.
We shall discuss the how-to below, but first, we would like to examine the what. SINOTO series has been constructed with a concept of higher thermal efficiency. As per our internal statistics, these units have a melting capacity of 5-10 tons per hour according to the model, which is way much better when compared to the conventional open-fire melters.

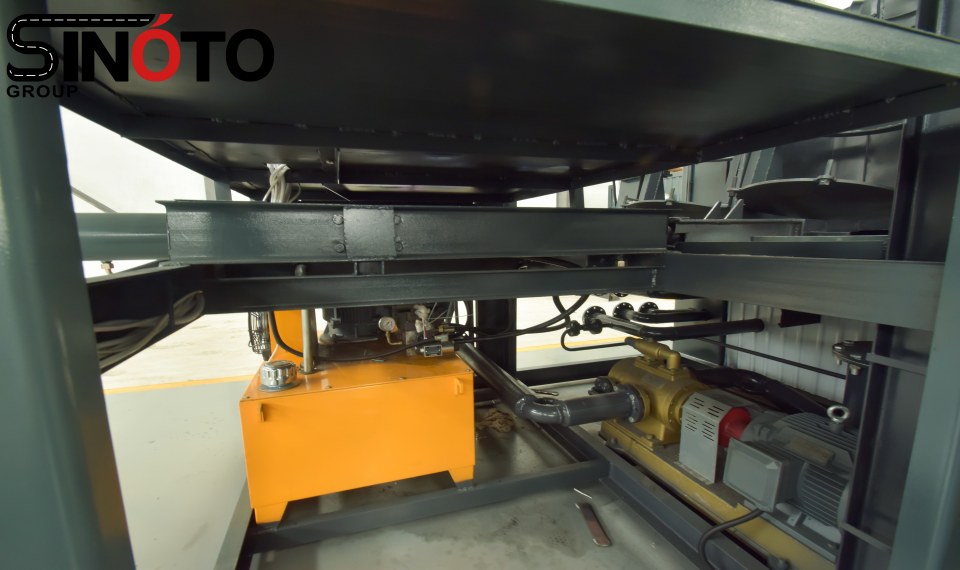

The machine involves the use of turnover or a hydraulic lift. The hydraulic system lifts the barrels into the oven chamber, instead of the manual operation of heaving heavy drums. The heat exchanger has a dual-heating condition because of the coils of the thermal oil on the inside and the exhaust flue gas.
Operating it properly does not only involve pushing buttons, but also rhythm and temperature control.
I walk around and do a 5-minute walk-around before I begin each shift:
Test the Thermal Oil Levels: Test the level of heat transfer oil in the expansion tank.
Check Hydraulic Lines: Check that the lifting mechanism has no leakages.
Clear the Bitumen Pump: Check to make sure that the discharge pump is not plugged with cold frozen bitumen of the previous day.
With the SINOTO melter, loading sequence is an efficient factor. Put the barrels on the hydraulic platform with big bung (cap) out and down.
Pro Tip: To shorten the first melting cycle by up to 10% in my case, it is a good idea to preheat the barrels in the sun or a warm place.
The thermal oil sweet spot is typically 220degC to 250degC. Taking it too high you get the chance of carbonizing the bitumen of the coils, and too low you lose your rate of production. Monitor the digital controllers – SINOTO makes a very stable system as soon as it attains the desired temperature.
The dripping of the bitumen into the bottom reservoir takes place as the oil melts. When the level of the bitumen internal reaches sensor point, switch on the bitumen pump in order to pump the hot liquid to your storage tanks.
The difference between having a machine which lasts 3 years and one, which lasts 15 years, is maintenance. The following is the schedule that I will recommend to SINOTO Bitumen Melter.
Clean the Slag: Drum bitumen is regularly impure. Clearing the bottom filter is necessary at the end of each shift to avoid damages to the pumps.
Test the Exhaust: This is to ensure that the flue gas path is open to sustain the heating effect of the secondary.
Lubrication: oil the hinge of the hydraulic and the seals of the doors. Ordinary lubricants become dry within high temperature environments.
Motor Inspection: The bitumen pump motor should be checked on vibration or strange noise.
You should: every year, or every 2,000 tons of processed bitumen, you should:
Flush the Thermal Oil Coils: Visually inspect the inside of coils in case there is internal scaling.
Replace Seals: The chamber doors may have high-temperature gaskets that require replacement to ensure that it is not losing heat.
Examine Thermal Oil: The oil deteriorates with time. Determine its viscosity and flash point.
|
Issue |
Likely Cause |
|
|
Slow Melting Rate |
Carbon buildup on coils |
Clean the exterior of the heating pipes. |
|
Hydraulic Shudder |
Air in the lines or low fluid |
Bleed the hydraulic system and top up oil. |
|
Pump Failure |
Bitumen temperature too low |
Check heating coils in the reservoir; ensure pump is pre-heated. |
A SINOTO Barrels Bitumen Melting Machine is an investing in a reliable machine. Our clients have reported that their fuel consumption dropped by 15-20 percent when they switched to this enclosed and thermal-oil system over older and less efficient systems.
With this operation and maintenance guide, you are not merely fixing a machine, but you are maximizing a profit center. Time is money and heat is the driving force in the construction of roads.
