What Are the Installation and Maintenance Requirements for a Jumbo Bag Bitumen Melting Machine?

If you’re evaluating a jumbo bag bitumen melting machine for your asphalt plant, road maintenance fleet, or emulsion production line, installation and maintenance are usually the two biggest questions buyers ask before signing a purchase order. A well-designed bulk bitumen melting machine should not only melt 1-ton FIBC bags quickly — it should also be simple to set up on-site and cheap to keep running for years. Below, we break down exactly what’s involved, what buyers typically look for, and why this equipment category has become essential for modern bulk bitumen handling operations.

ℹ️ Quick Overview: A jumbo bag bitumen melter is a skid-mounted, thermal-oil-heated unit that melts solid bitumen directly from 1-ton FIBC (jumbo) bags, eliminating the need for manual bag-cutting, open-flame heating, or labor-intensive decanting.

What Is a Jumbo Bag Bitumen Melting Machine and How Does It Work?

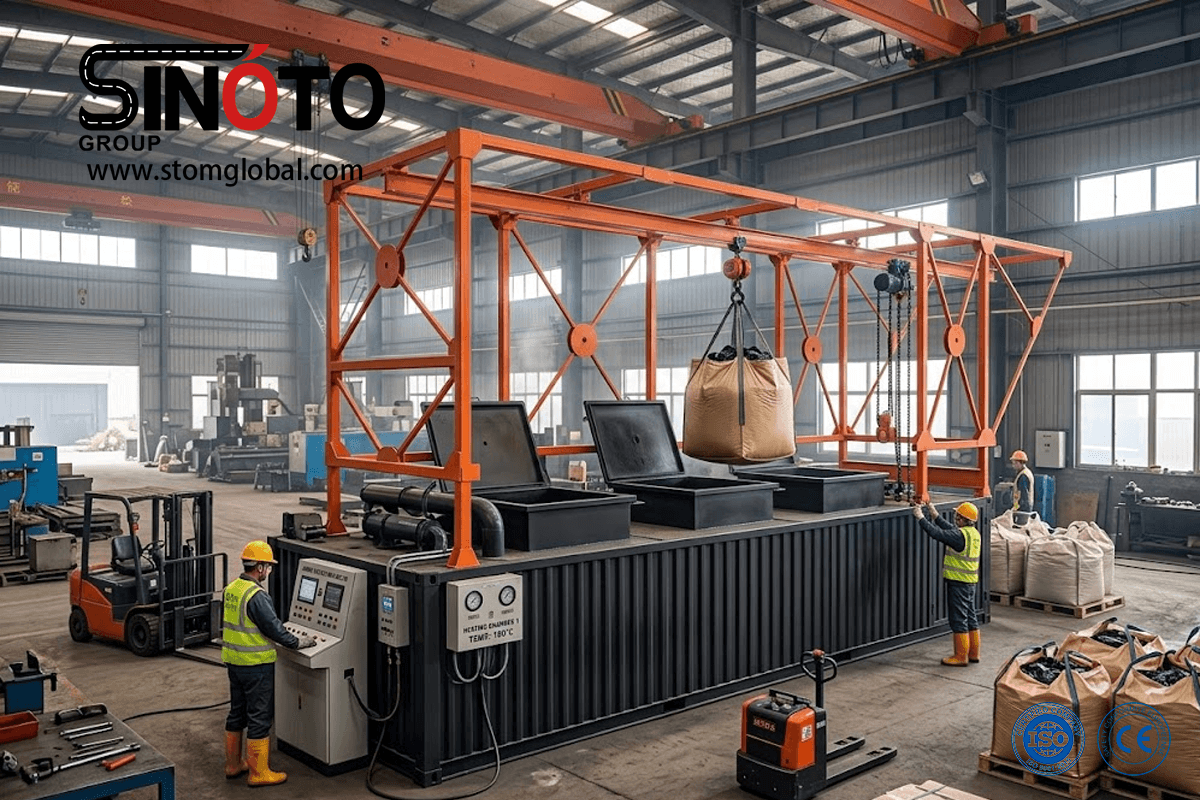

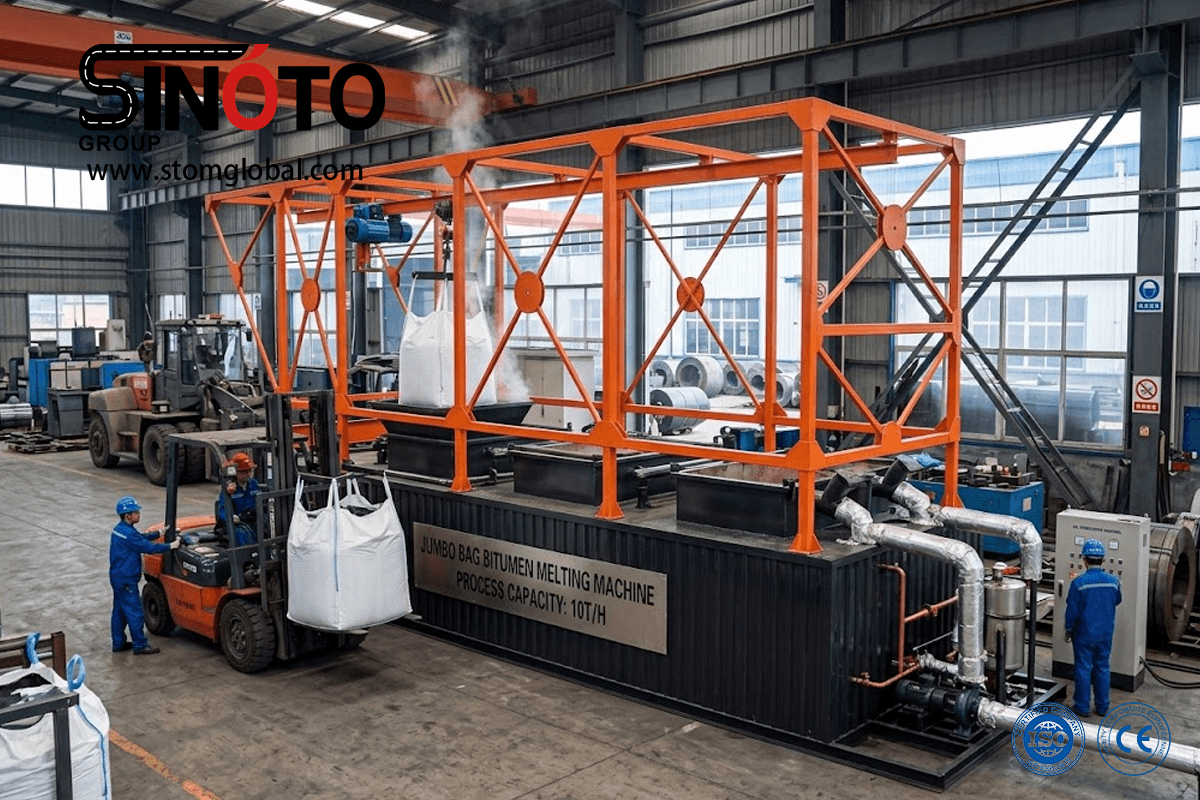

A Jumbo Bag Bitumen Melting Machine is engineered as two connected systems: a melting chamber and a hoisting structure. The melting chamber uses a skid-mounted design for easy transport and relocation between construction sites, while the hoisting structure — typically built around a 2-ton electric hoist — lifts and suspends the jumbo bags directly above the heating chamber.

Inside the chamber, heat-transfer oil pipes run beneath the feeding ports, and a multi-pass high-temperature flue-gas pipe network heats the bitumen rapidly and evenly. This dual heating approach (thermal oil plus flue-gas recovery) is what allows a modern bulk bitumen melting machine to melt a full 1-ton bag efficiently without scorching or carbonizing the material.

⚙️ Key Design Advantage: Because the equipment uses indirect thermal-oil heating rather than open flame, it significantly reduces fire risk — a major concern for buyers comparing older, flame-heated bitumen decanters.

For operations that regularly handle bitumen storage in bulk quantities, this design also allows simultaneous melting and holding: the main tank can melt bitumen independently while an auxiliary tank stores already-melted material, keeping production continuous.

What Are the Installation Requirements for a Jumbo Bag Bitumen Melter?

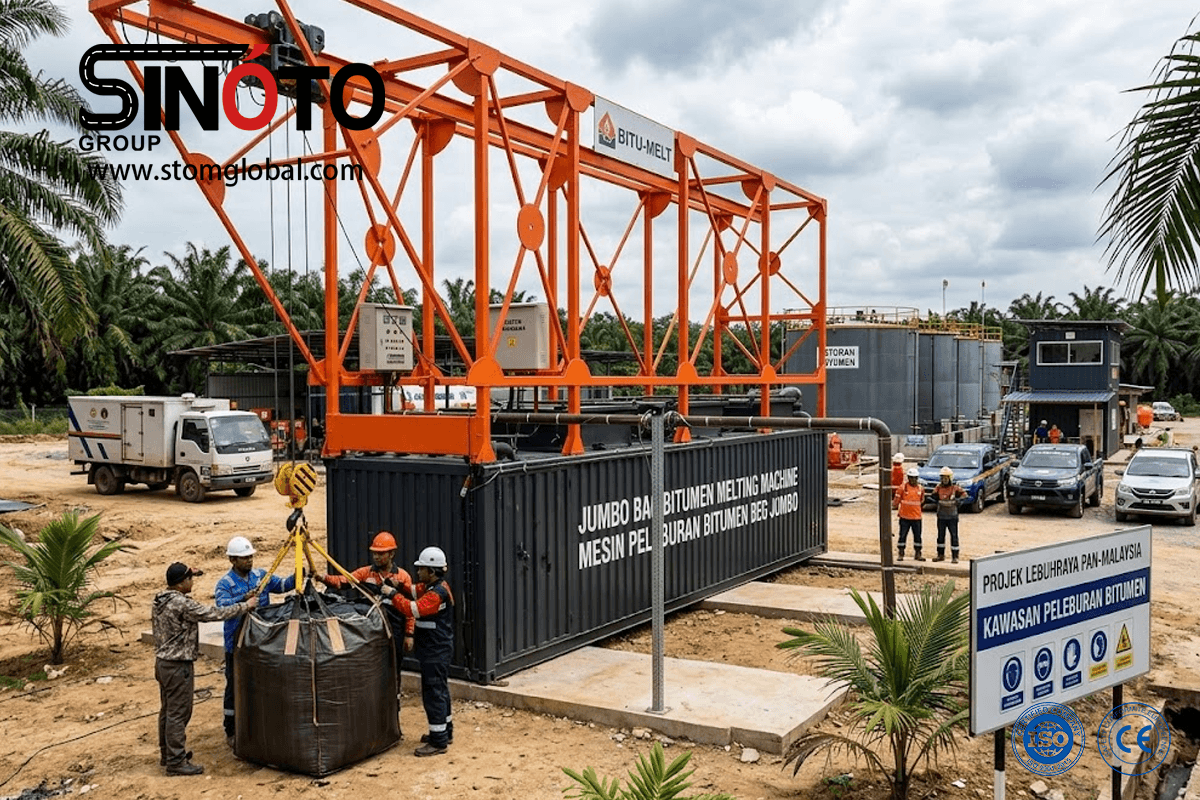

Installation is one of the most frequently asked questions from buyers sourcing a jumbo bag bitumen melter for the first time. The good news is that the skid-mounted, modular structure is specifically engineered for fast deployment, even on remote road-construction sites.

Typical installation requirements include:

• Level, compacted foundation — a concrete or compacted gravel pad rated for the unit’s total weight (12,000–20,000 kg depending on model)
• Clearance for the hoisting structure — since transport height exceeds standard road limits, the hoist frame ships disassembled and is bolted together on-site, so allow vertical clearance up to 6.5 m in working configuration
• Power supply — 15–22 kW depending on model (STBD-6 vs STBD-10)
• Heating source connection — either an external thermal-oil circuit or a built-in diesel/gas burner (electric heating is also available on request)
• Access for container transport — the compact transportation footprint (roughly 11.5 m × 2.25 m × 2.45 m) is optimized for standard container shipping

💬 Buyer Insight: “How long does setup take?” is one of the most common pre-purchase questions. Because the melting chamber is pre-assembled at the factory and the hoisting tower connects entirely by bolts, most units can be operational within a few days of arrival — a major advantage over site-built bitumen storage and melting systems.

For contractors managing multiple bulk bitumen handling sites, this modularity means the same unit can be redeployed project to project without major structural rework, which is a key reason this equipment category has gained traction among road maintenance and paving contractors worldwide.

What Routine Maintenance Does a Bulk Bag Asphalt Melter Need?

Maintenance is the second major concern for buyers — and rightly so, since downtime on a 1 ton bag bitumen melter directly affects paving schedules. Fortunately, the enclosed, thermal-oil-based design of a quality bulk bag asphalt melter requires comparatively low routine upkeep compared to open-flame decanters.

✅ Why maintenance stays simple: Automatic PLC-based temperature control reduces the need for manual monitoring, while the enclosed operation design limits personnel exposure to hot asphalt and fumes — lowering both safety risk and labor requirements during servicing.

Because the equipment is insulated on all sides with high-density rock wool and uses multi-circuit heat-conduction oil coils, heat loss is minimized, which in turn reduces strain on burners and extends component life. Buyers comparing a jumbo bag bitumen melter price against long-term operating costs should factor in these lower maintenance demands — a machine with fewer moving parts exposed to direct heat will generally cost less to keep running over a 10+ year service life.

What Should Buyers Know Before Choosing a Jumbo Bag Bitumen Melting Machine for Sale?

When comparing a jumbo bag bitumen melting machine for sale, buyers typically weigh capacity, safety features, and total cost of ownership rather than upfront price alone. Here are the core factors that influence purchasing decisions:

• Productive capacity — models typically range from 5–6 tph (STBD-6) up to 10–12 tph (STBD-10), so matching output to daily production targets is essential
• Feeding mouths — 3 to 5 ports depending on model, directly affecting how many bags can be processed in parallel
• Melting pool capacity — ranges from roughly 32 m³ to 80 m³, which determines how much material can be melted and held simultaneously
• Residual-free discharge — a specialized bag suspension and discharge system that recovers close to 100% of the bitumen, minimizing material waste
• Integrated hydraulic hoist — removes the need for a separate on-site crane, reducing both bitumen bag melter price and labor overhead

ℹ️ On pricing: A bitumen bag melter price or jumbo bag bitumen melter price varies significantly based on capacity (STBD-6 vs STBD-10), heating method (thermal oil, diesel/gas burner, or electric), and optional automation features like PLC control. Requesting a detailed quote based on your production volume is the most reliable way to compare true cost-per-ton rather than headline unit price.

Why Choose a Dual-Heating Jumbo Bag Bitumen Melting Machine?

Beyond installation and maintenance, buyers ultimately choose a bitumen melting machine based on total efficiency and safety over its operating lifetime. The combination of thermal-oil indirect heating, automatic temperature/pressure control, high-temperature alarm systems, and a finned-tube heat exchanger (offering roughly 1.5x the heat-exchange area of conventional oil pipes) makes this equipment category particularly well-suited for contractors who need reliable, repeatable output from bulk bitumen handling operations.

For projects requiring both continuous melting and standby bitumen storage, the dual-tank configuration — where a main tank melts while an auxiliary tank stores — allows production to continue uninterrupted, which is often the deciding factor for contractors comparing multiple suppliers.

Ready to Get Pricing or a Technical Consultation?

If you’re comparing a jumbo bag bitumen melting machine for sale and want a quote tailored to your capacity, feeding-port, and heating-method requirements, our engineering team can walk you through model selection, installation planning, and maintenance support.
