Road builders in Southeast Asia, Africa, the Middle East and Latin America often face the same problem. Bitumen arrives as a solid block packed in 1-ton bags or drums. It must become a pumpable liquid before it can go into a distributor, a mixing plant or a storage tank. Melting it over open flames or with improvised heaters wastes fuel, damages the binder and puts crews at risk.
A jumbo bag bitumen melting machine solves this in a controlled, repeatable way. But how does it work, and what should a buyer check before investing? This guide explains the working principle step by step, covers what procurement teams care about most, and highlights the selling points of the STBD series from Sinoto (Stom Global).
| 🏗️ Step 1 | 🔥 Step 2 | 💧 Step 3 | 🌡️ Step 4 | 🚚 Step 5 |
|---|---|---|---|---|
| Hoist | Heat | Melt | Control | Pump |
| 2T electric hoist lifts the 1-ton bag | Thermal oil and flue gas warm the chamber | Bitumen flows into the melting pool | Automatic system holds a safe temperature | Pump sends bitumen to storage or use |

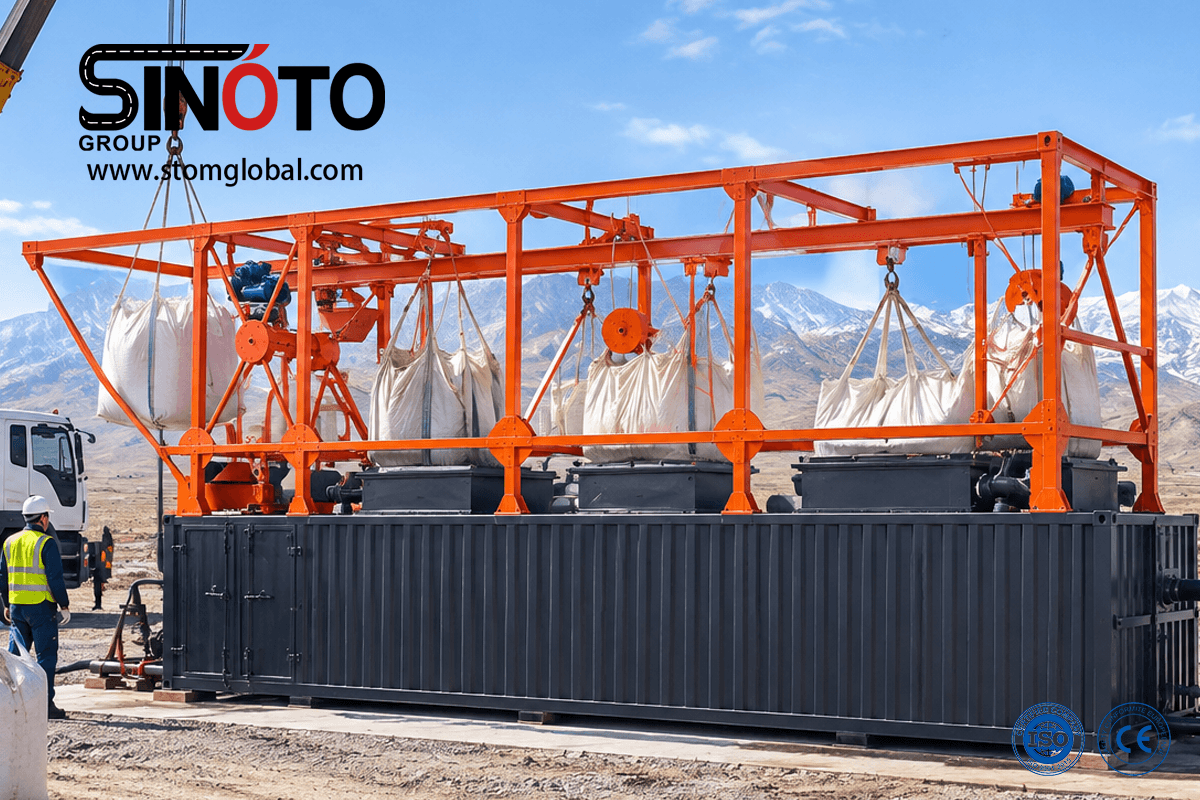

A jumbo bag bitumen melter is a skid-mounted heating unit that turns solid 1-ton bags of bitumen into hot, pumpable liquid. The Sinoto design has two main parts: a melting chamber and a hoisting structure. The chamber has 3–5 feeding ports above a heating bin. The hoisting structure is a support frame fitted with a 2-ton electric hoist.
1. Lifting and positioning. The operator hooks a bag to the hoist, which raises it as high as 3 m and lowers it over a feeding port. Because the hoist is built into the machine, a separate site crane is usually unnecessary. This cuts manual handling and keeps workers away from heavy loads.
2. Indirect heating. Heat transfer oil is warmed by an oil burner or a thermal oil furnace. It then circulates through pipes arranged under the feeding ports. A 4-way high-temperature flue gas pipe in the heating bin adds heat from a second direction, so the bitumen warms quickly and evenly.
3. Melting and decanting. As the bag softens, the bitumen flows into the melting pool: 32 m³ on the STBD-6 and 80 m³ (35 + 45) on the STBD-10. The bag suspension and residual-free discharge design is intended to recover all of the material, so little is left behind in the bag.
4. Temperature control. A fully automatic control system switches the burner on and off according to temperature. The goal is to melt the bitumen without scorching it. Localized overheating causes aging and carbonization, which lower the quality of the binder.
5. Pumping and storage. A bitumen pump (16.8 m³/h on the STBD-6, 24 m³/h on the STBD-10) moves the liquid to the bitumen storage chamber or on to downstream equipment. The main tank and auxiliary tank are linked by pipelines. The main tank can run on its own, while the auxiliary tank works as a separate storage tank. Melting and temperature raising therefore go on at the same time without interfering with each other.
The main difference from older methods is indirect heating. The flame never touches the bitumen, and heat reaches it through oil and hot gas. This is why a modern bitumen melting machine is considered safer and gentler on the material than a direct-fired kettle.
When contractors, distributors and government road agencies compare a bulk bitumen melting machine, the same questions come up. The table below matches the most common buyer concerns with how the STBD series responds.
| Buyer Concern | Why It Matters | How the STBD Series Responds |
|---|---|---|
| Safety | Fire, explosion and hot-bitumen exposure are the biggest jobsite risks | Thermal oil indirect heating, automatic temperature and pressure control, high-temperature alarm, enclosed operation |
| Melting speed | Slow melting stalls paving crews and idles equipment | 5–6 tph (STBD-6) or 10–12 tph (STBD-10) output; multi-circuit oil coils |
| Fuel cost | Heating is the largest running expense | Finned tubes, flue gas recovery, hot air circulation, high-density rock wool insulation |
| Bitumen quality | Overheated binder loses its performance specification | Fully automatic temperature control prevents local overheating and carbonization |
| Mobility | Projects move, and sites are often remote | Skid-mounted chamber; bolted, assembled hoisting frame that fits transport limits |
| Ease of use | Skilled operators are hard to find | Centralized or PLC control with one-touch start-up |
| Waste and yield | Residue in bags is lost money | Residual-free discharge system |
| Price and support | Total cost matters more than the sticker price | Customizable configuration; direct manufacturer contact |
Two further questions appear in almost every inquiry. The first is heating flexibility. Some sites already have a thermal oil furnace, while others need a built-in burner. Sinoto’s machine supports an external thermal oil connection or built-in diesel or gas burners, and electric heating can be customized. The second is transport. Because the melting chamber is skid-mounted, it suits standard container shipping and fast setup at temporary sites.
Buyers also want to know why they should switch from drums to bags. Bulk packaging cuts the number of items to handle, reduces steel-drum waste and lowers freight cost per ton. All of this depends on having a melter that can handle 1-ton bags quickly and safely. That is the gap this equipment fills in bulk bitumen handling.
Beyond the working principle, five features set the Sinoto machine apart.
🛡️ High safety. Thermal oil indirect heating avoids the open-flame risk of traditional equipment. Automatic temperature and pressure control and a high-temperature alarm protect the operator, and the enclosed operation reduces exposure to hot asphalt and harmful gases.
⚡ High thermal efficiency. Finned tube technology enlarges the heat exchange area to 1.5 times that of conventional thermal oil pipes. Asphalt fume recovery and hot air circulation reduce heat loss and fuel use and lower emissions.
🎯 Precise temperature control. The system adjusts ignition to the measured temperature. The asphalt keeps its original performance specifications and is not degraded by uneven heating.
🏭 High productivity. High-density rock wool insulation covers all sides of the unit. Multi-circuit heat conduction oil coils balance the heat distribution and speed up melting. With the main tank and auxiliary tank working together, output stays steady.
🎛️ Simple operation. Centralized control or a PLC system gives one-touch start-up. The compact structure is easy to move, install and maintain.
| Parameter | STBD-6 | STBD-10 |
|---|---|---|
| Productive capacity | 5–6 tph | 10–12 tph |
| Max. hoisting capacity | 2,000 kg | 2,000 kg with two hoists |
| Max. hoisting height | 3 m | 3 m |
| Feeding ports | 3 | 5 |
| Melting pool capacity | 32 m³ | 80 m³ (35 + 45) |
| Heating method | Oil burner or thermal oil furnace | Oil burner or thermal oil furnace |
| Bitumen pump capacity | 16.8 m³/h | 24 m³/h |
| Working dimensions (L×W×H) | 16000 × 2250 × 6500 mm | 16000 × 7000 × 6500 mm |
| Transport dimensions (L×W×H) | 11500 × 2250 × 2450 mm | 11500 × 2250 × 2450 mm (2 pcs) |
| Total power | 15 kW | 22 kW |
| Total weight | 12,000 kg | 20,000 kg |
💡 Key Takeaway: A 1 ton bag bitumen melter is only as good as its heat transfer and temperature control. Fast melting is easy to achieve by overheating, but the real test is melting quickly while keeping the binder’s original properties intact.
Choose the STBD-6 for small and mid-size projects with 5–6 tph demand. Choose the STBD-10 when a large asphalt plant, emulsion plant or modified bitumen line needs 10–12 tph.
Many buyers search for a jumbo bag bitumen melting machine for sale and immediately ask about the bitumen bag melter price. The honest answer is that the price depends on configuration, so a single figure rarely fits. The jumbo bag bitumen melter price is shaped by several factors:
To get an accurate bitumen bag melter price, send your hourly capacity, bag size, preferred heating source, project location and power supply. A serious supplier can then propose the right model.
Also compare the total cost of ownership. A cheaper unit that wastes fuel, leaves residue in bags or overheats the binder can cost more over one paving season than a well-engineered machine. Fuel savings from finned tubes and fume recovery, plus complete material recovery, add up quickly.
If you import bulk-packed bitumen, work at remote sites or need a mobile solution, the answer is very likely yes. A jumbo bag bitumen melting machine links packaging, transport and use. It receives solid bitumen, delivers liquid bitumen at a steady temperature and passes it to bitumen storage tanks, a distributor truck or a mixing plant.
Its strengths are safe indirect heating, efficient heat transfer, precise temperature control, flexible fuel options and easy relocation. Together they make it a practical choice for modern bulk bitumen handling. A bitumen melting machine for jumbo bags also pairs naturally with related equipment such as emulsion plants, polymer modified bitumen plants and bitumen distributors.
Ready to find the right model? Tell us your capacity target and project location, and our engineers will recommend a configuration and quote.
