What is the Difference Between Batch and Continuous Asphalt Plants?

The selection of the appropriate asphalt plant, be it a batch plant or continuous is quite important to the success of a project, quality control, and profitability. Although both are manufacturing an essential hot mix asphalt, the way that the two companies operate could not be more different.  This paper will explore the fundamental technical, economic and logistical distinctions and assist you in making the best decision as to which type of asphalt plant to use on your project needs and to bring the most efficiency to your construction project.

Knowledge of Batch Asphalt Plant: Accuracy and Versatility

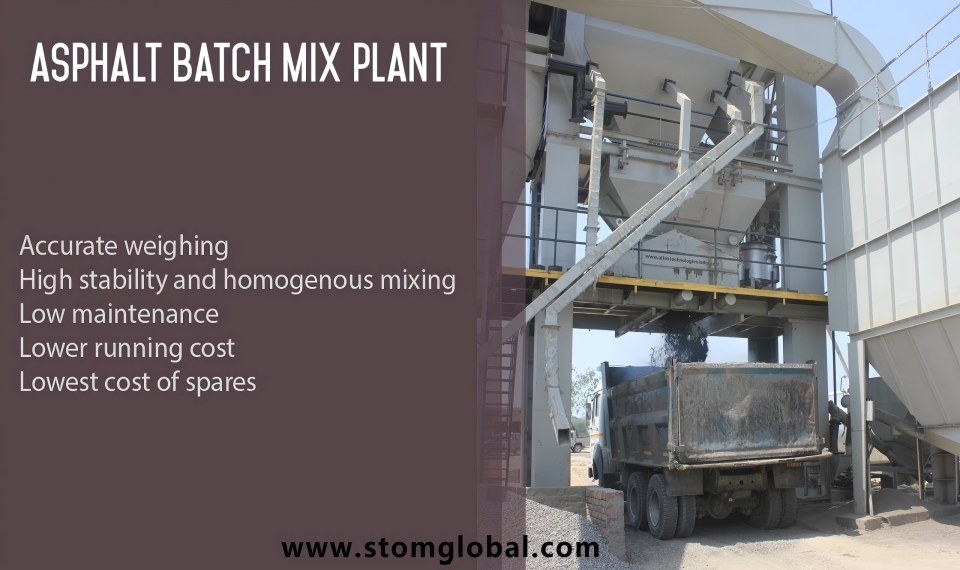

Batch asphalt plant is a cyclical process that is accurate and specific–production of HMA occurs in specific batches that are measured. This is a high-tech recipe in which all ingredients are carefully weighted and blended until the end product is released.

1. How a Batch Plant Works:

1. Cold Feed:The feed is supplied through bins onto a conveyor.
2. Drying:Aggregates are deposited into a drying drum to dry off.
3. Hot Elevator/ Screening:Dried aggregates are moved via a vibrating screen to separate hot bins by size.
4. Weighing:Each size of the aggregate, filler material and bitumen (asphalt binder) are weighed on different scales. This is the feature of batch asphalt plant-accuracy in drying and screening.
5. Mixing:The entire amount of weighed materials is then dumped into another pugmill mixer where there is a certain length of time in which the contents are mixed to give a homogeneous batch of hot mix asphalt.

Discharge: The completed batch is discharged, usually into a storage silo or a truck.

2. Key Advantages:

1. High Quality Control:The individual and separate hot bins and accuracy of weighing of the products enables instantaneous and real time modification of the mix design between the batches. This renders the batch asphalt plant to be the choice in high specifications projects, runways at airports, or in cases where there is a high turnover in the mix formulas.
2. Flexibility:It is able to accommodate an extensive range of aggregates and mix designs with low transition downtimes.
3. RAP Capability:Outstanding incorporation of high percentages of Recycled Asphalt Pavement (RAP) addition.Knowledge of the Continuous Asphalt Plant: Volume and Velocity

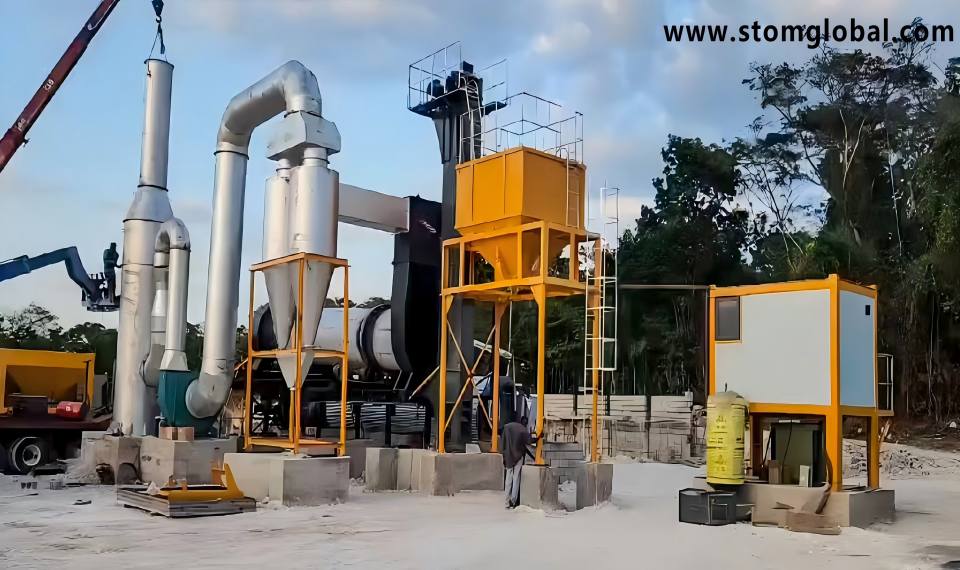

On the other extreme, the continuous asphalt plant (also known as the drum mix plant), is in operation 24 hours a day and its output is a steady flow of asphalt with high volume. It is very simplified in its process where drying and mixing take place in the same rotating drum in a sequence.

1. How a Continuous Plant Works:

1. Cold Feed & Introduction: The Aggregates and at times, RAP are fed into one end of a large rotating drum.
2. Drying and Heating: The aggregates are heated by a powerful burner which moves down the drum.
3. Addition and Mixing of the Bitumen:The asphalt binder (bitumen) is added further down the drum. The blending is in endless motion as the materials roll to the discharge side. With modern counterflow designs, the flame of the burner is not in the mixing zone and this makes them more efficient and emit less.
4. Discharge:HMA is a continuous discharge of a mix.

2. Key Advantages:

1. High Production Output:Its major advantage is sheer capacity, which can make hundreds of tons an hour without stopping which is suitable in big scale long term projects on a highway.
2. Easier Construction and Lower startup:The design typically incorporates few large components (no separate mixer, hot elevator or screen), which equates to less capital outlay and less maintenance.
3. Energy Efficiency (for Volume):The streamlined process tends to be good in terms of fuel efficiency per ton material produced when the process is running at high capacity.
4. Portability:Portable asphalt plants are frequently designed as mobile asphalt plant units, which can be set up and dismantled rapidly to meet the demands of projects that need to be frequently relocated.

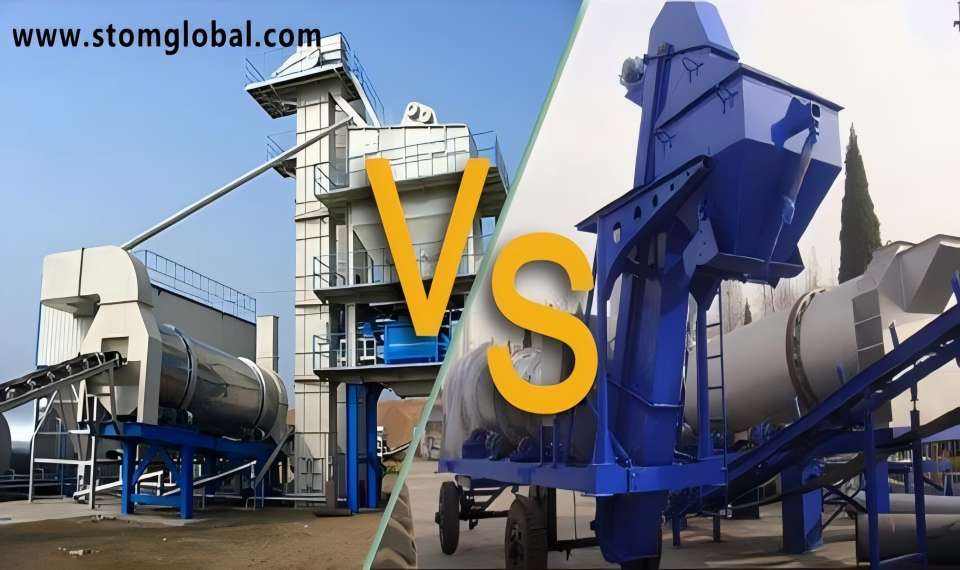

Head-to-Head Comparison: Batch Plant vs. Continuous Plant

What is the Right Plant to Your Business?

Whether you should install a batch or a continuous plant is dependent on the strategic needs of your road construction equipment fleet:

1. Select a batch plant when:your jobs require the most control over asphalt quality, a high rate of mix design changes (varying clients, varying specifications), or when you need to produce small quantities of asphalt in urban locations where a variety of small-volume projects is typical. This is a plant that puts emphasis on both quality and flexibility.
2. Select a Continuous Plant when: You are involved in large-scale and long-term projects such as new highways or major paving contracts, or need an economical and high-output solution, and especially, in a mobile asphalt plant setup. This plant is volume oriented and speed oriented.

Finally, both technologies are the best of the hot mix asphalt production. Knowing what is the difference between continuous and batch asphalt plants. You will be able to make a wise choice that leads to the efficiency of the plants, the improvement of the HMA qualities, and the construction of your infrastructure projects that will last. Invest in the asphalt mixing plant that is most suitable to your business objectives and market needs.
