Slurry Seal or Chip Seal or Seal Coat: The Ultimate Guide

You have probably heard the expressions of slurry seal, chip seal and seal coating bandied about as possible solutions. Nevertheless, they are radically different in their structure, usage, functionality, and optimal application. This comprehensive manual will make these three popular methods of pavement preservation demystified.

We will be going into the details of each technique with which you will be able to make an informed choice, pose the right questions to the contractors and save your asphalt investment in the long run.

General Knowledge: Pavement Preservation

Slurry seal, chip seal and seal coating are not meant to repair structural problems. They are proactive measures, which are a part of an approach called pavement preservation.

Imagine it is a wooden fence painting. You do not wait till the wood is rotting and the boards are falling off. When the wood is still in a good condition, you use a protective coat of paint or stain to protect the wood against sun and rain to prevent rotting thus prolonging its life. The similarity is that these asphalt treatments are laid on the asphalt that is relatively in good condition but is beginning to wear out, some small indications of oxidation, slight raveling or flexibility.

The main advantages that they all present are:

Waterproofing, UV protection, better looks, tolerance to fuels and chemicals, etc.

At this point, we will discuss each of the methods.

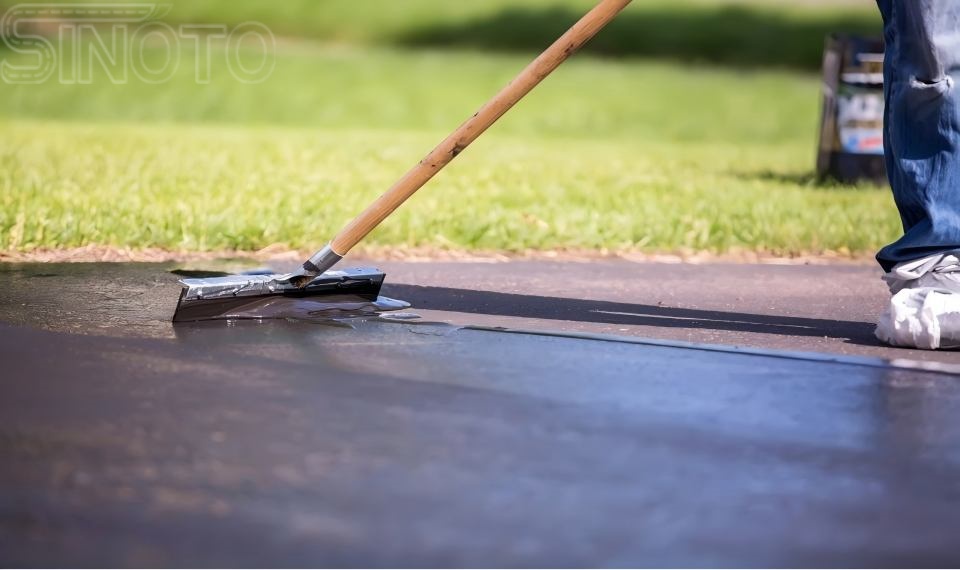

1. Seal coating: The protective Coating

The most popular surface treatment is seal coating (or sealcoating), which is taken on areas with low traffic such as residential driveways, parking lots, and walkways.

1.1 What is it?

Protective emulsion which is deposited over the asphalt surface in a thin liquid coating is referred to as seal coat. It is commonly prepared using either refined coal tar or asphalt-based emulsions as well as combined with water, silica sand, additives, and filler. It is not a veneer but a protective coating of asphalt.

1.2 Application Process

Preparation of the Surface: The surface should be washed and wiped clean of all dirt and oil. Any cracks should be filled.

Application: Sealant is applied to asphalt in a single/ two coats as a spray or a squeegee.

Drying/Curing: This should be an area that is semi-closed to all traffic and the water should not be allowed to dry up out without much time being taken to allow the coating to dry.

1.3 Ideal Use Cases

Residential driveways

Commercial parking lots (tenant parking areas in particular).

Tennis courts and playgrounds.

1.4 Pros and Cons

1.4.1 Pros:

Cost-Effective: The cheapest per square foot.

Excellent Protection: Gives a good protection against water, UV rays and chemicals.

Aesthetic Enhancement: Paints with a new jet-black finish.

Easy to Use: Ideal in DIY applications (however, professional use is desirable in all cases).

1.4.2 Cons:

Non-Structural: Does not contribute to any strength or cover small flaws.

Durability: The thin film erodes with age, and usually it has to be re-applied after every 2-3 years.

Weather Sensitive: The use is very sensitive to weather and temperature conditions.

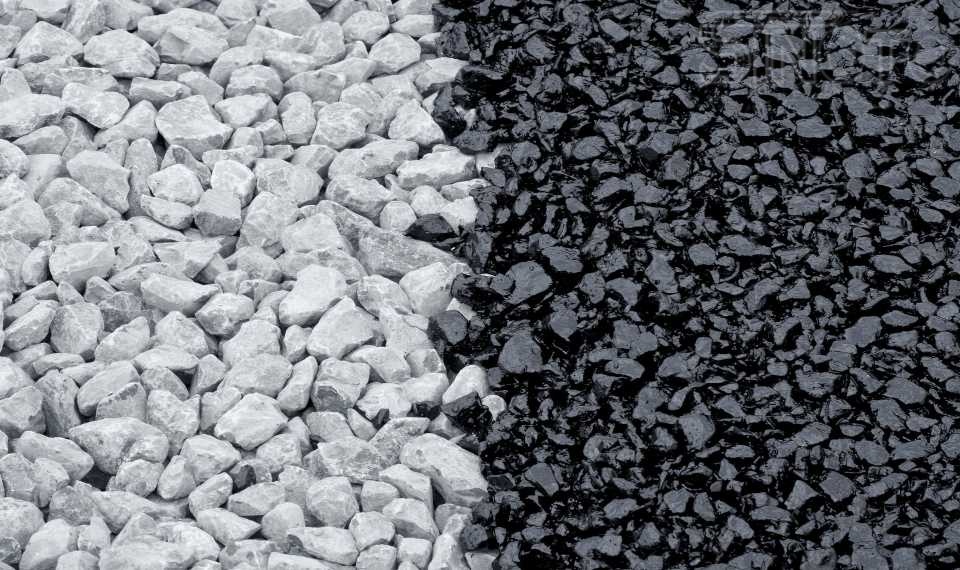

2. Chip Seal: The High Performance Textured Topcoat

Chip seal (also called tar and chip or surface dressing) is a stronger treatment which involves an application of a sprayed layer of asphalt emulsion and an overlay of embedded aggregate (chips). It provides an additional protection as well as a new wearing course to the pavement.

2.1 What is it?

Chip seal is a two step procedure. To begin with, a coat of hot asphalt or polymer-modified asphalt emulsion is sprayed onto the pavement that is already there. As soon as this is done, a uniform layer of coarse chips of small size (usually gravel or crushed stone) is placed upon the sticky asphalt. Rollers are then used to compact the surface to entrench the chips into the binder.

2.2 Application Process

Binder Application: A distributor truck lays on a specified quantity of asphalt emulsion.

Chip Spreading: A chip spreader will come in close succession and puts a precise layer of aggregate down.

Rolling: Rollers roll the chips into the binder by use of pneumatic tires.

Sweeping: Once it has cured, there is sweeping away of excess loose chips.

2.3 Ideal Use Cases

The countryside and residential streets.

Roads that have fewer traffic.

Long private roads and driveways.

Shoulders and bike paths

2.4 Pros and Cons

2.4.1 Pros:

Very good Skid Resistance: The textured and rough surface offers a lot of traction.

Durability: Far stronger than just a plain seal coat, 5-7 or longer.

Crack-Bridging Ability: Is capable of sealing and overfilling small non-operative cracks.

Cost-Effective Resurfacing: A small percentage of a complete overlay of asphalt.

2.4.2 Cons:

Rough Texture: Not preferable in the places where one wants to enjoy the smooth and un-noisy ride.

Loose Chips:The tires may cause a starting phase of loosened stones being kicked off.

Not in High-Traffic Areas: The chips are easily able to be thrown out of position due to repeated rotation (e.g. in busy intersections).

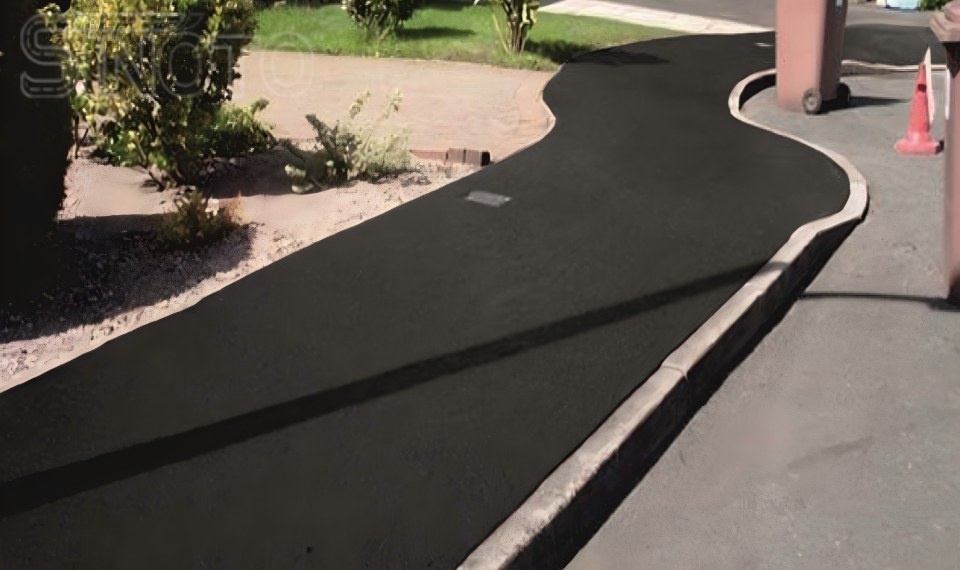

3. Slurry Seal: The Finish, Monolithic and Smooth

Slurry seal is an advanced blend, which forms a new, smooth and durable wearing surface. It is commonly referred to as molten asphalt overlay.

3.1 What is it?

Slurry seal This is the mixture of dense-graded aggregate, asphalt emulsion, water, and mineral fillers, which is heavily engineered. It is creamy and is in a slurry form. As it is applied, it seeps into small cracks and surface anomalies forming a new continuous and smooth layer which is adhesive on the old pavement.

3.2 Application Process

Mixing: It is a continuous-flow mixing machine where ingredients are mixed in a continuous flow which is usually mounted on a truck.

Application: A slurry mixture of the pavement is sprayed evenly by a squeegee or box.

Curing: It cures fast, and normally traffic is reinstated within 4-8 hours.

3.3 Ideal Use Cases

Airport runways and aprons

Arterials and busy streets in the cities.

Parking spaces in businesses and industries.

Residential subdivisions

3.4 Pros and Cons

3.4.1 Pros:

Smooth Finish: Delivers a new, quiet, and smooth-riding finish.

Very Good Crack Filler: Filler of small cracks and other minor surface cuts.

Durability: Extremely resistant to weathering and abrasion, and it has a life span of 5-7 years.

Fast Curing: Fast time to service keeps down downtime.

3.4.2 Cons:

More Costly: More expensive than seal coating and usually chip seal.

Precision: Special equipment and operators should be used to mix and apply properly.

Weather and Surface Constraints: It cannot be used in all weather conditions as well as very poor pavements.

Head-to-Head Comparison Table

3 Reasons to Make the Right Choice in Your Project

The ultimate choice to use slurry seal or chip seal or seal coating remains to be based on three major factors, namely, the pavement condition, the purpose of its use, and your budget.

（1）Assess Pavement Condition:

Good Condition (Minor Oxidation, No Cracks): Each of the three options is possible. Basic protection is the most cost effective with seal coating.

Fair Condition (Hairline Cracks, Slight Raveling): Chip seal or slurry seal is a more appropriate option since it is capable of sealing and sealing these small imperfections. These flaws will not be covered by seal coat.

Poor Condition (Alligator Cracking, Rutting):No actions are suitable. The pavement is probably in need of structural repair or full-depth reconstruction.

（2）Consider Traffic and Usage:

Walkways, Driveways: Seal coating is normally adequate.

Low-Speed Roads, Residential Streets: Chip seal is very durable and valuable.

Hurly and Burly Parking Lots, Arterials: Slurry seal is the solution as it offers the necessary smoothness and longevity.

（3）Evaluate Your Budget:

Although initial expenditure is a factor, look at the value in the long run. A 7-year chip seal is a possible better investment in comparison with a seal coat which has to be applied every 2 years, although the initial cost might be larger.

Summary: Investment Protection Through the Right Knowledge

The primary distinction between slurry seal, chip seal and seal coating is a know-how of how to make a smart and cost-effective choice in the pavement you have.

Never attempt to treat the damage on your own without consulting a well-known, seasoned pavement preservation contractor that knows your particular case and can prescribe the best type of treatment. Welcome to inquire and order SINOTO road construction machinery.
